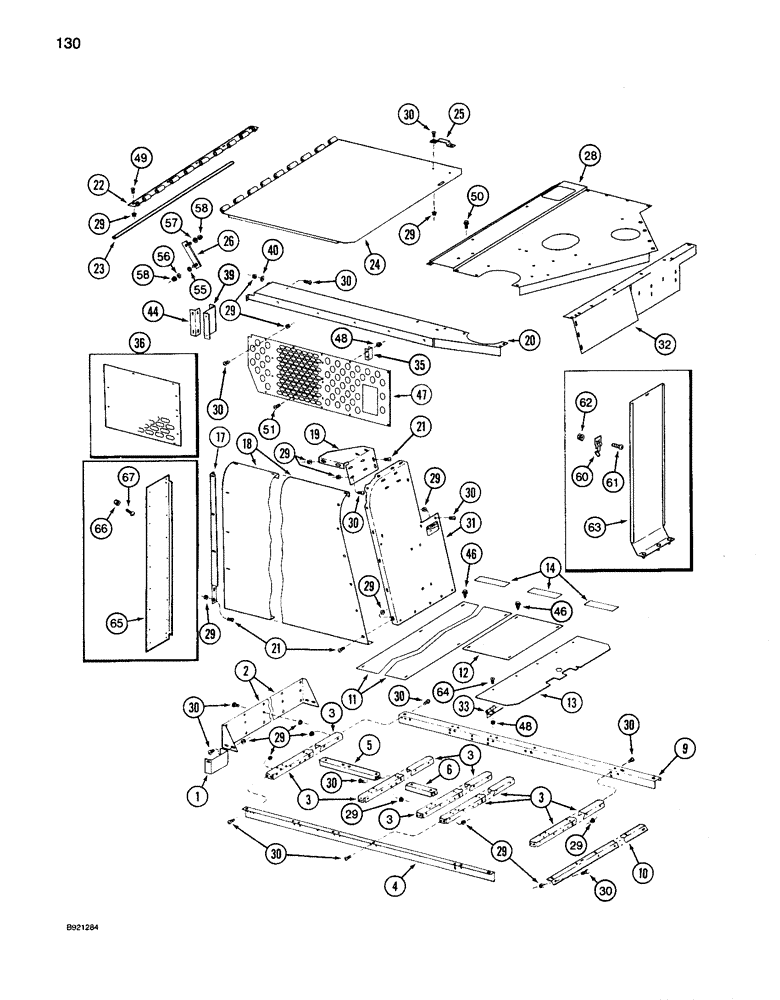

Запчасти Case IH 1680 (130) - ENGINE SHIELD AND SERVICE DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

186105C1

CHANNEL

BRACKET - grain tank rear upper left

1шт.

2

193435C1

SUPPORT

- engine service deck

1шт.

3

192959C5

CHANNEL

SUPPORT - deck

5шт.

4

186569C5

ANGLE

- support, deck, left

1шт.

5

188275C1

SUPPORT

- deck

2шт.

6

1979830C1

SUPPORT

- deck

1шт.

9

192961C6

ANGLE BAR

SUPPORT - right deck

1шт.

10

1541891C1

ANGLE

- engine deck rear

1шт.

11

1979828C1

PLATE

- front, engine compartment

1шт.

12

1979827C1

PLATE

- engine compartment

1шт.

13

1977155C1

DOOR

- service deck

1шт.

14

D55216

PAD,2" x 9"

STRIP - anti-skid pad (If equipped)

1шт.

17

186106C1

CHANNEL

ANGLE - shield stiffener, left, upper

1шт.

18

1347037C1

SUPPORT

- trim, rear, upper left

1шт.

19

1330481C2

SUPPORT

- LH Rear, Upper shield

1шт.

20

1541855C2

SUPPORT

- door and hood

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

18шт.

22

194477C2

HINGE

- rotor door cover, front

1шт.

23

194478C1

ROD

- rotor door hinge

1шт.

24

186197C93

TRAP DOOR

DOOR - engine and rotor drive

1шт.

25

160638C1

HANDLE

- rotor door

1шт.

26

1302413C1

PROP

LINK - door hold up front

2шт.

28

1541809C3

SUPPORT

- top cover, rear

1шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

30

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

75шт.

31

1970113C1

PROTECTION PLATE

SUPPORT - engine, rear, left

1шт.

32

1541955C1

SUPPORT

- air cleaner

1шт.

33

186695C1

HINGE

- door separator drive housing

3шт.

35

196438C1

SUPPORT

- clutch oil cooler, front

1шт.

36

1319860C1

PLATE

- oil cooler (If equipped)

2шт.

39

196446C2

ANGLE

- clutch oil cooler support

1шт.

40

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

1шт.

44

1319696C1

BRACKET

ANGLE - cooler shield support

2шт.

46

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

10шт.

47

1345275C1

SHIELD

PLATE - oil cooler

1шт.

1979316C2

SUPPORT

- engine compartment door

1шт.

48

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

26шт.

49

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

7шт.

50

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange lock, 5/16 NC x 1/2 inch

14шт.

50

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

51

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

8шт.

55

567532R1

WASHER

- flat, 21/64 x 1/2 x 5/32 inch

2шт.

56

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

57

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

4шт.

58

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

60

167800C1

CLIP

LATCH - door

2шт.

61

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

2шт.

62

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

2шт.

63

1977286C3

SUPPORT

- air shield

1шт.

64

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

30шт.

65

1338382C1

SHEET ASSY.

SHEET - door anchor

1шт.

66

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 flange lock

15шт.

67

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

15шт.
