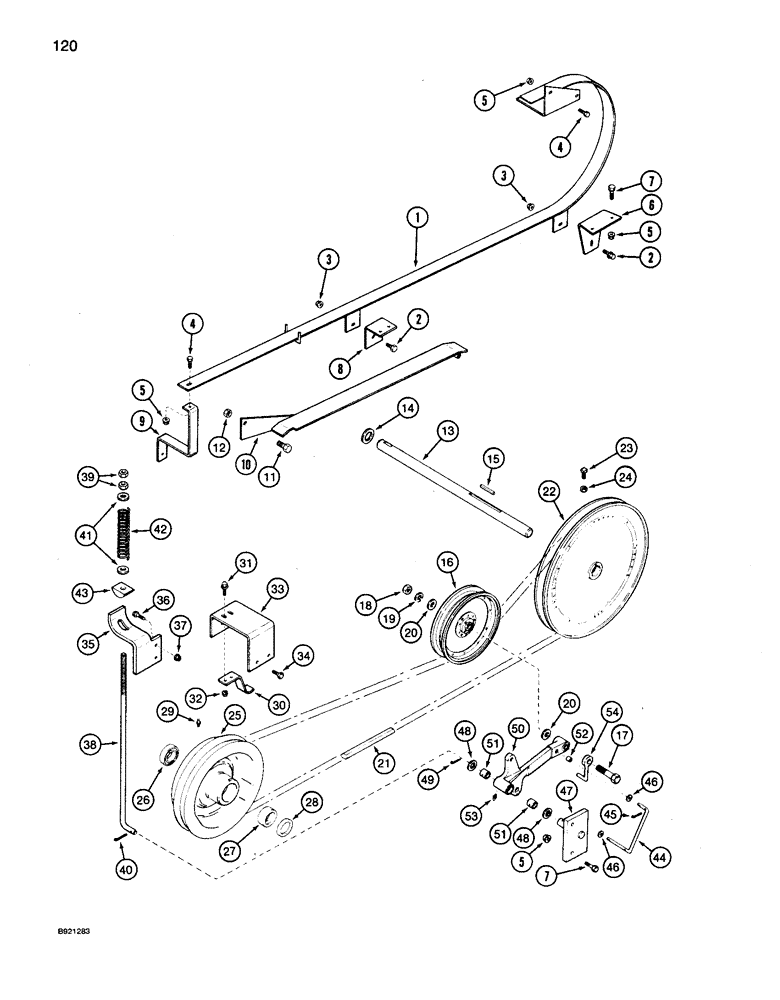

Запчасти Case IH 1680 (120) - GRAIN TANK UNLOADER BELT DRIVE (80) - CROP STORAGE/UNLOADING

1

192929C6

GUIDE

- belt, unloader

1шт.

2

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

4

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, 3/8 NC x 1 inch

4шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

6

192870C1

SUPPORT

ANGLE - support, front

1шт.

7

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex, self-locking, 3/8 NC x 1-1/4 inch

4шт.

8

1347450C1

SUPPORT

ANGLE - support, center

1шт.

9

1541741C1

SUPPORT

ANGLE - support, lower rear

1шт.

10

193759C3

SUPPORT

GUIDE - belt, upper

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

12

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

13

1347352C1

SHAFT

- vertical auger

1шт.

14

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-5/32 x 1-3/4 x 3/64 inch

1шт.

15

586879R1

KEY

- square, parallel, 5/16 x 2 inch

1шт.

16

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

- tightener, belt

1шт.

17

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

18

425-1010

NUT,5/8"-11, G5

1шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

21

1989217C1

V-BELT,22.327 mm W x 3712.09 mm L

V-BELT , Drive, Unloader 22.327 mm W x 3712.09 mm L

1шт.

22

1994762C1

PULLEY ASSY.

PULLEY - driven

1шт.

23

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

SCREW - set, square head, 5/16 NC x 1 inch, cup point

2шт.

24

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

25

1541762C1

PULLEY

ASSEMBLY - drive, pump

1шт.

26

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - ball

1шт.

27

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

BEARING - pulley

1шт.

28

466176R92

SEAL

- pulley

1шт.

29

87414

LUBE NIPPLE,1/4" - 28

FITTING - straight lube, 1/4 inch

1шт.

30

1347452C1

SUPPORT

- trap, belt

1шт.

31

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - lock, 3/8 NC x 1 inch

2шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

33

194493C2

SUPPORT

BRACKET - inner, belt guide

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

185070C1

SUPPORT

- spring

1шт.

36

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

37

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

38

185061C1

ROD

- tightener

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

432-1216

COTTER PIN,3/16" x 1"

1шт.

41

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

42

391745R1

SPRING

- arm, tightener

1шт.

43

194652C1

PIVOT

- rod

1шт.

44

193820C1

ROD

- retainer

1шт.

45

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

46

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

47

1324456C1

SUPPORT

- arm, tightener

1шт.

48

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

2шт.

49

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

50

185059C93

LEVER ASSY.

ARM ASSEMBLY - tightener

1шт.

51

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

- arm

2шт.

52

1302225C1

BUSHING

- arm

1шт.

53

87414

LUBE NIPPLE,1/4" - 28

FITTING - straight lube, 1/4 inch

1шт.

54

194894C1

ROD

- belt, upper

1шт.
