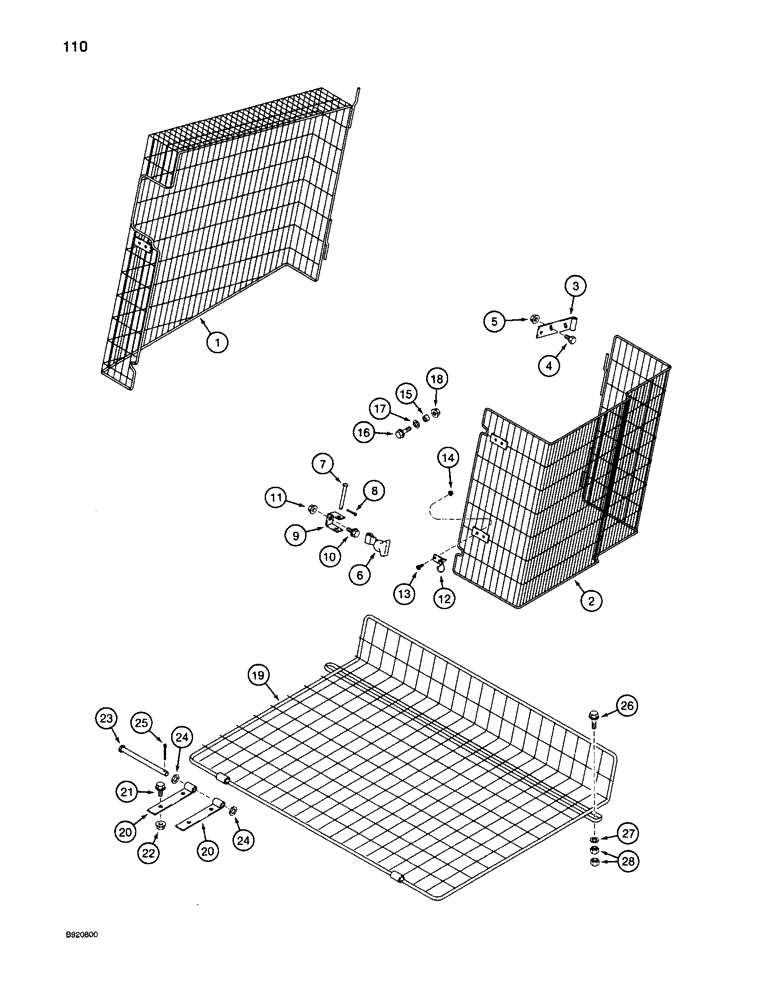

Запчасти Case IH 1680 (110) - CLEANING FAN SHIELDS, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1

1989686C1

SHIELD

- fan inlet, left-hand

1шт.

2

1989685C1

SHIELD

- fan inlet and drive, right-hand

1шт.

See Figure 112, items 1 through 15 for alternative shield and mounting parts, if used.

1шт.

3

1541763C1

LARGE PLATE

PLATE - hinge, fan shield

4шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

8шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

8шт.

6

494307C1

LATCH

HOOK - shield hold-down, latch

4шт.

7

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

4шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

9

188103C1

BRACKET

- hood anchor

4шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

12

764071C1

BRACKET

HOOK - fan shield latch bracket

4шт.

13

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

8шт.

14

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10 NC

8шт.

15

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

4шт.

16

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

17

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

19

1541759C1

GUARD

SHIELD - fan inlet, bottom

1шт.

20

1541942C1

GUARD

PLATE - hinge, botton shield

4шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

22

231-5146

FLANGE NUT,3/8"-16

8шт.

23

439-16014

PIN - headed, 3/8 x 6-1/2 inch

2шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

25

32-1224

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

26

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

27

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

2шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.
