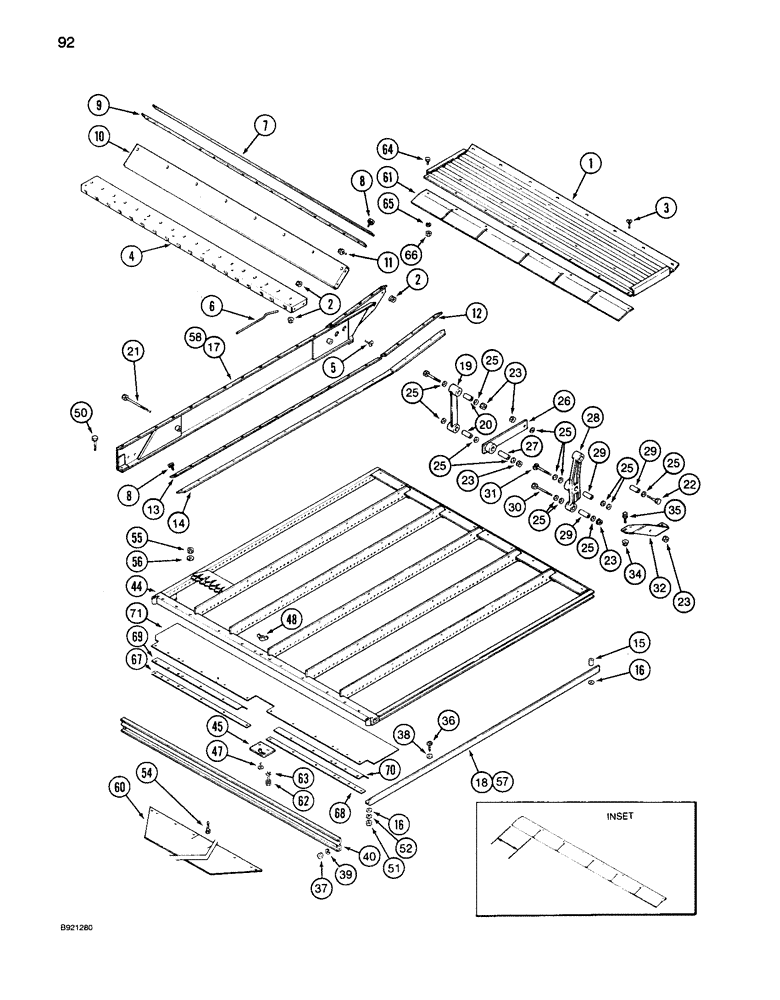

Запчасти Case IH 1680 (092) - CHAFFER SIEVE, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1

192057C1

GRAIN PAN

PAN - grain

1шт.

2

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

24шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

20шт.

4

1312969C1

SUPPORT

- chaffer pan

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short

27шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

- auger bed, long

27шт.

7

192050C1

BAR

- front chaffer frame seal

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, self-tapping, 1/4 x 1/2 inch

1шт.

9

192049C1

SEALING STRIP

- chaffer frame front

1шт.

10

192045C1

SUPPORT

- chaffer frame

1шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

12

192052C2

BAR

- chaffer frame seal, short

2шт.

13

1325332C1

BAR

- chaffer frame seal, long

2шт.

14

1325331C1

SEALING STRIP

STRIP - chaffer frame

2шт.

15

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- chaffer sieve support, front

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 5/32 inch

4шт.

17

1322452C2

RAIL

- chaffer, left

1шт.

18

1325333C3

SUPPORT

ANGLE - chaffer support, right

1шт.

19

1957455C1

ARM

- rear hanger

2шт.

20

1330324C1

BUSHING

- front hanger

2шт.

21

326-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

2шт.

22

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

23

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

24

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC, not shown

3шт.

25

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

28шт.

25

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

2шт.

26

1330357C1

ARM

- shoe, rear

2шт.

27

1330324C1

BUSHING

- shoe arm

1шт.

28

1957460C2

LEVER

- shoe

2шт.

29

1330323C2

BUSHING

- shoe lever

3шт.

30

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

30

326-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8

2шт.

31

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - carriage, 5/8 NC x 5 inch

2шт.

32

1968827C1

SUPPORT

- shoe lever, left

1шт.

33

1968828C1

SUPPORT

- shoe lever, right, not shown

1шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex,lock, 3/8 inch NC

4шт.

35

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex, 3/8 NC x 3/4 inch

4шт.

36

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

38

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

1шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

1322458C3

SUPPORT

CHANNEL - rear

1шт.

44

1322673C3

GRAIN SIEVE

SIEVE - 1-5/8 closz slat chaffer

1шт.

44

1322659C3

GRAIN SIEVE

SIEVE - 1-5/8 corn chaffer

1шт.

44

1347372C4

GRAIN SIEVE

SIEVE - Petersen chaffer

1шт.

44

1322467C3

GRAIN SIEVE

SIEVE - 1-1/8 inch adjustable extended

1шт.

45

186675C1

ADJUSTING PLATE

- chaffer lever

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch

1шт.

48

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

50

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

52

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

14шт.

55

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

14шт.

56

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

14шт.

57

1325334C2

ANGLE

- chaffer support, right

1шт.

58

1322453C2

RAIL

right hand, chaffer

1шт.

60

1302785C2

EXTENSION

- chaffer

1шт.

61

1319259C1

COVER

- chaffer finger (228 mm to first slot, see inset)

1шт.

61

1994858C1

COVER

- chaffer finger (237 mm to first slot, see inset)

1шт.

62

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - hex washer head, 3/8 x 1-1/4 inch

2шт.

63

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

64

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

65

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

66

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

67

1338345C2

RETAINER

- chaffer seal, left

1шт.

68

1338346C1

RETAINER

- chaffer seal, right

1шт.

69

1322698C3

ANGLE

- chaffer seal, rear left

1шт.

70

1322699C3

ANGLE

- rear chaffer seal, right

1шт.

71

1979332C3

SEAL

- chaffer

1шт.
