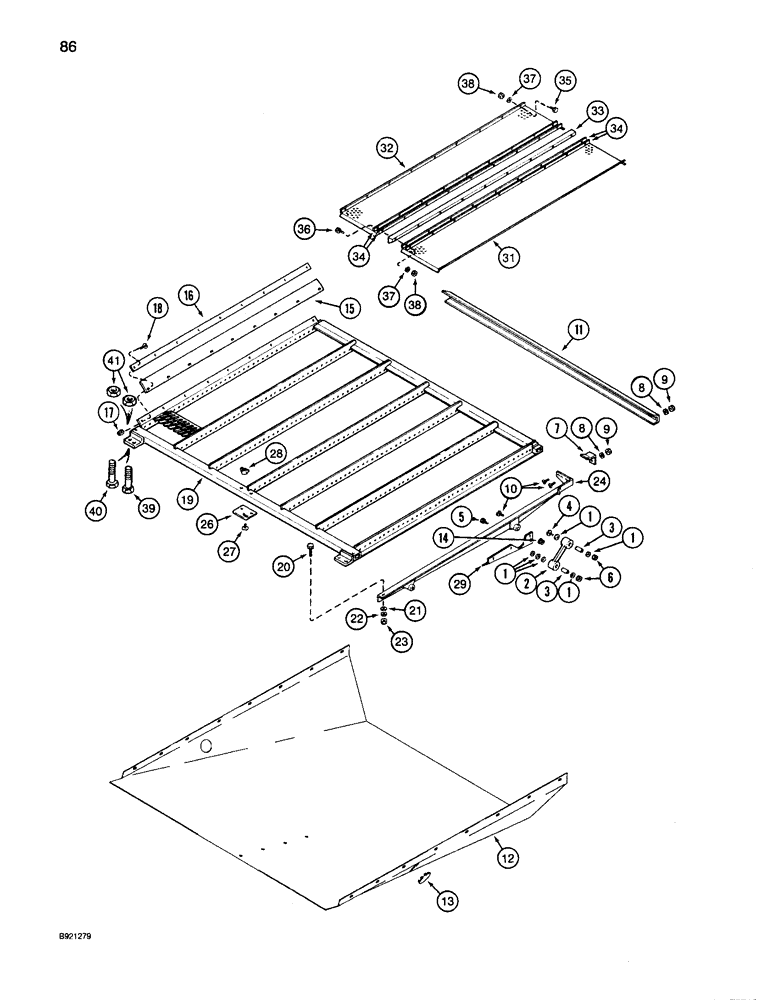

Запчасти Case IH 1680 (086) - SHOE SIEVE, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- shoe hanger arm

12шт.

2

1957450C1

ARM

HANGER - front shoe

2шт.

3

1330324C1

BUSHING

- shoe front hanger

2шт.

4

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT - carriage, 5/8 x 4 inch

2шт.

5

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

6

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

7

182684C2

CLIP

- shoe front support

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

1шт.

11

1319239C1

ANGLE

- shoe front

1шт.

12

1322461C1

PAN

BOTTOM - shoe return pan

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

16шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

16шт.

13

432564

HOLE PLUG BUTTON,1 3/4"

PLUG - button, 1-3/4 inch hole

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

15

1325324C1

SEAL,56mm W x 1582mm L

- shoe sieve

2шт.

16

1325325C1

RETAINER

BAR - shoe sieve seal

2шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

18шт.

18

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

18шт.

106743A1

HANDLE

(like bicycle grip) shoe sieve adj

1шт.

19

1322464C5

GRAIN SIEVE

SIEVE - shoe, 1-1/8 inch slat

1шт.

19

1347365C1

GRAIN SIEVE

SIEVE - shoe, 1/10 inch round holes

1шт.

19

1347366C1

GRAIN SIEVE

SIEVE - shoe, 7/32 inch round holes

1шт.

19

1347367C1

GRAIN SIEVE

SIEVE - shoe, 3/8 inch round holes

1шт.

19

1347368C1

GRAIN SIEVE

SIEVE - shoe, 1/2 inch round holes

1шт.

19

1979328C5

GRAIN SIEVE

SIEVE - shoe, 1-5/8 inch closz slat

1шт.

19

1347376C4

GRAIN SIEVE

SIEVE - shoe, 1-1/8 inch closz slat with 1/4 inch hole

1шт.

19

1347374C1

GRAIN SIEVE

SIEVE - shoe, 1/2 inch hole with lip

1шт.

20

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

20

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - hex washer head, 3/8 NC x 1-1/4 inch

2шт.

21

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

22

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

23

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

2шт.

24

1979901C3

RAIL ASSY.

SUPPORT - shoe side, right

1шт.

25

1979900C3

RAIL ASSY.

SUPPORT - shoe side, left (not shown)

1шт.

26

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

27

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 x 1/2 inch

2шт.

28

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

29

1325321C1

SUPPORT

- forward shoe, right

1шт.

30

1325320C1

SUPPORT ASSY.

SUPPORT - forward shoe, left (not shown)

1шт.

106743A1

HANDLE

(like bicycle grip) shoe sieve adj

1шт.

31

1319282C1

SCREEN

- perforated side section

2шт.

32

1319283C1

SCREEN

- perforated mid section

4шт.

33

1319284C1

BAR

- wood spacer

1шт.

34

1319300C1

BAR

- screen fastener backing

10шт.

35

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

36шт.

37

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

45шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

45шт.

39

326-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

2шт.

40

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

2шт.

41

232-5316

FLANGE NUT,Flg, 3/8"-16

NUT - lock 3/8 NC

4шт.

106743A1

HANDLE

(like bicycle grip) shoe sieve adj

1шт.

36

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.
