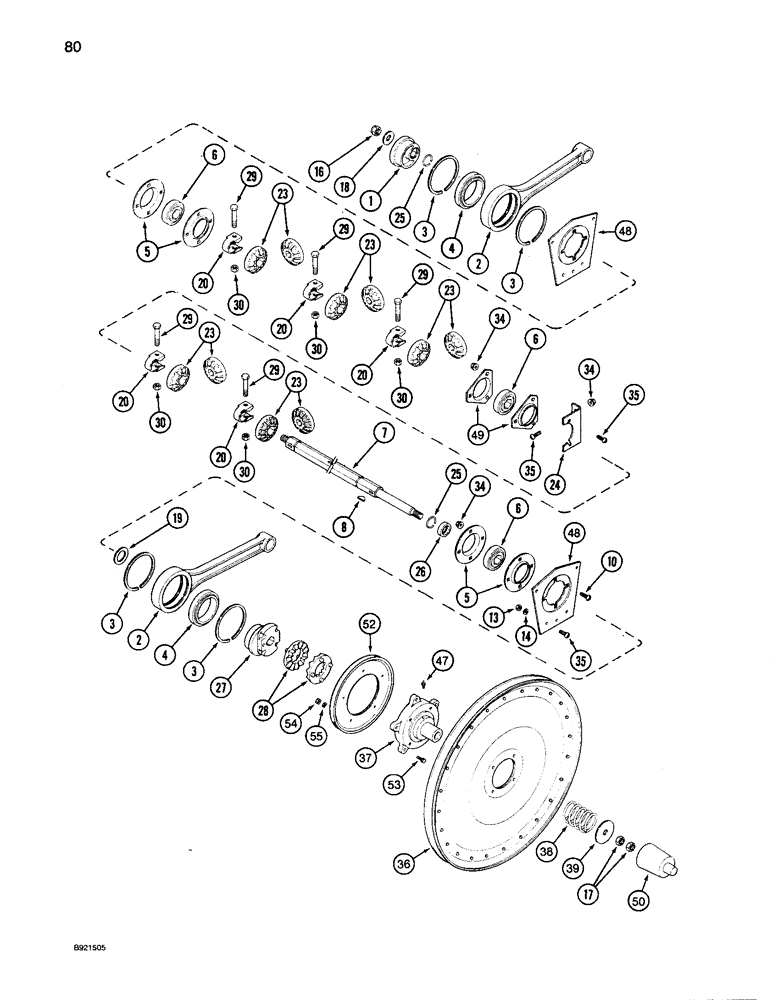

Запчасти Case IH 1680 (080) - SHAKER SHAFT AND AUGER DRIVE, HEAVY DUTY DRIVE, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1

1322573C1

CAM

- left, shaker shaft, pitman drive

1шт.

1322623C1

RETAINER

RING - retainer, internal 1-13/64 inch

2шт.

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

- flat, 29/32 x 1-1/4 x 1/8 inch

1шт.

1979190C1

RETAINER

RING - retainer, external 1-21/32 inch

1шт.

2

1989251C1

ARM

PITMAN ASSEMBLY - shaker shaft (see page 85)

2шт.

3

1322624C1

SNAP RING

RING - retaining, external, 5.125 inch

4шт.

4

1322676C1

BALL BEARING,3.1496" ID x 4.9213" OD x 0.8661"

- shaker shaft, pitman

2шт.

5

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - shaker shaft bearing

4шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - shaker shaft

3шт.

7

1322616C1

SHAFT

- shaker

1шт.

8

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

8шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

14

492-11038

LOCK WASHER,3/8"

8шт.

16

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

2шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

- shaker cam

1шт.

19

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

20

225265R1

CLAMP

- auger bed gear

5шт.

23

1300639C1

GEAR-SET

GEAR SET - auger drive, 14 teeth

5шт.

24

186589C1

SUPPORT

- auger drive center bearing

1шт.

25

575186R1

SNAP RING

RING - shaker shaft pitman

2шт.

26

935856R1

BUSHING

- shaker shaft pitman

1шт.

27

1322574C1

CAM

- right, shaker shaft, pitman drive

1шт.

1322623C1

RETAINER

RING - retainer, internal 1-13/64 inch

2шт.

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

- flat, 1-1/16 x 1-1/3 x 1/8 inch

1шт.

1979190C1

RETAINER

RING - retainer, external 1-21/32 inch

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

- shaker shaft drive, slip clutch

2шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

5шт.

30

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

5шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

13шт.

35

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

SCREW - slotted truss head, 3/8 NC x 3/4 inch. (Replaces 150031C1)

1шт.

36

1979876C1

PULLEY

- shaker shaft driven, right drive (see page 9A-5)

1шт.

37

1303136C1

HUB

- shaker shaft drive slip clutch

1шт.

38

19302K

SPRING

- shaker shaft drive slip clutch

1шт.

39

167521H1

SPRING WASHER

- slip clutch retainer

1шт.

47

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight taper drive, 1/4-28 inch

1шт.

48

1302221C1

PLATE

- shaker shaft

2шт.

49

180955C1

FLANGED BEARING,0.375"

FLANGE - center shaker shaft bearing

2шт.

50

182544C1

SHIELD

- shaker shaft spring

1шт.

52

566516R91

PULLEY ASSY.

PULLEY - drive, spreader straw

1шт.

53

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

54

9635082

NUT,5/16" - 18, Gr 5

5шт.

55

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.
