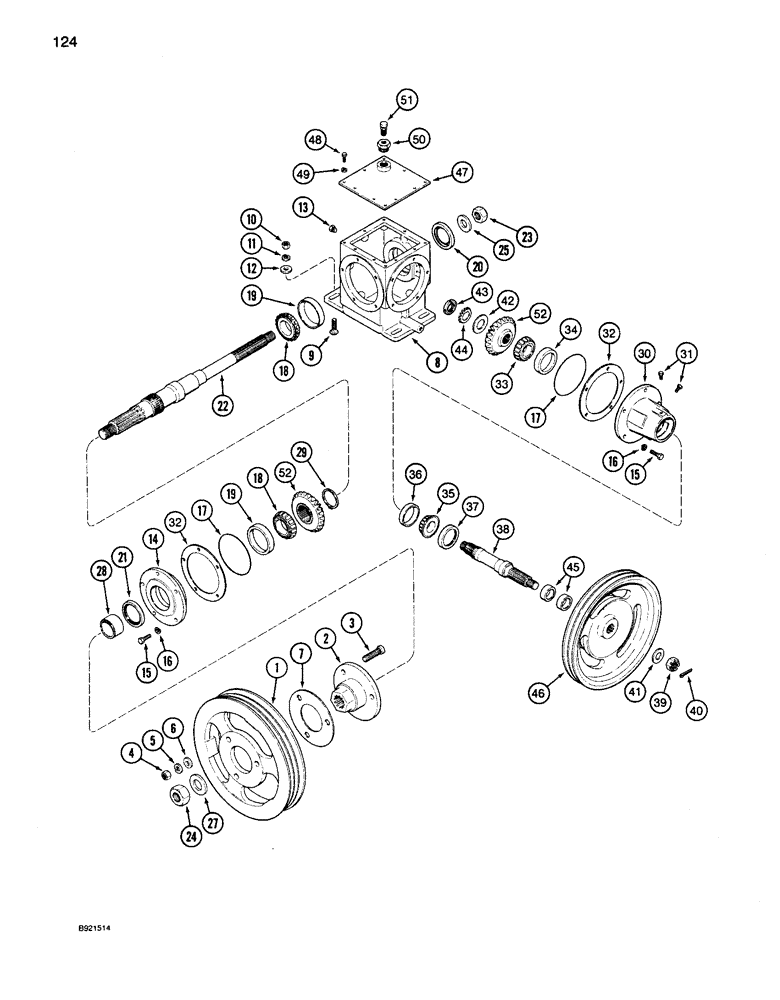

Запчасти Case IH 1680 (124) - STRAW CHOPPER GEAR HOUSING (73) - RESIDUE HANDLING

1

1817271C1

PULLEY

- jackshaft drive

1шт.

2

181211C1

HUB

- jackshaft drive pulley

1шт.

3

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

- hub

3шт.

4

429-1110

NUT,5/8"-18, G8

3шт.

5

492-21062

LOCK WASHER,5/8"

3шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

3шт.

7

181363C1

SHIM

- 0.060 inch, pulley

1шт.

8

181278C1

BEARING HOUSING

HOUSING - jackshaft gear

1шт.

9

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

6шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

12

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch

6шт.

13

444619

PIPE CLAMP

PLUG - gear housing

1шт.

14

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

HUB - jackshaft bearing

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

10шт.

16

492-11038

LOCK WASHER,3/8"

10шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk

2шт.

18

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

BEARING - tapered roller

2шт.

19

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

CUP - bearing

2шт.

20

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

- jackshaft hub, front

1шт.

21

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

- jackshaft hub, rear

1шт.

22

184394C1

SHAFT

- separator drive, three splined

1шт.

23

9413986

LOCK NUT,1"-8, GC

NUT - hex lock, 1 inch NC, grade 8

1шт.

24

27008R1

LOCK NUT,1 1/4"-7, GC

NUT - hex lock, 1-1/4 inch NC

1шт.

25

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

27

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

- flat, 1-3/8 x 2-1/2 x 1/4 inch

1шт.

28

181269C1

SPACER

BUSHING - jackshaft rear

1шт.

1315284C1

PACKAGE

KIT - snap ring

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.102 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.105 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.108 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.111 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.114 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.117 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.120 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.123 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.126 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.129 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.132 inch, retaining

1шт.

29

NSS

NOT SOLD SEPARAT

RING - 0.135 inch, retaining

1шт.

30

191245C2

HUB

- chopper drive

1шт.

31

444614

PLUG,Hex Hd, 1/8"-27, Brass

- chopper drive hub

1шт.

195484C2

SHIM KIT

KIT - shim, hub

2шт.

32

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

32

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

32

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

33

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

BEARING - tapered roller, hub inner

1шт.

34

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP - bearing, hub inner

1шт.

35

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller, hub outer

1шт.

36

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Hub outer

1шт.

37

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

- oil, chopper drive shaft

1шт.

38

181195C1

SHAFT

- drive, chopper

1шт.

39

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

1шт.

40

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

41

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

42

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-3/16 x 2-1/4 x 9/64 inch

1шт.

43

271253

NUT

- hex, slotted lock, bearing

1шт.

44

181268C1

BEARING WASHER,1.193" ID x 1.95" OD

WASHER - lock, drive shaft bearing

1шт.

45

181156C1

SPACER

- drive shaft

2шт.

46

1315264C1

PULLEY

- chopper drive, 14 inch OD

1шт.

47

181281C1

COVER

- gear housing

1шт.

48

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

49

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

50

115224

ADAPTER

- hex pipe, 3/4 to 3/8 inch

1шт.

51

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING - grease, special, with felt washer, 3/8 inch PT

1шт.

188814C1

BEVEL GEAR

KIT - gear, matched set

1шт.

52

NSS

NOT SOLD SEPARAT

GEAR - 24 teeth

1шт.

52

NSS

NOT SOLD SEPARAT

GEAR - 23 teeth

1шт.
