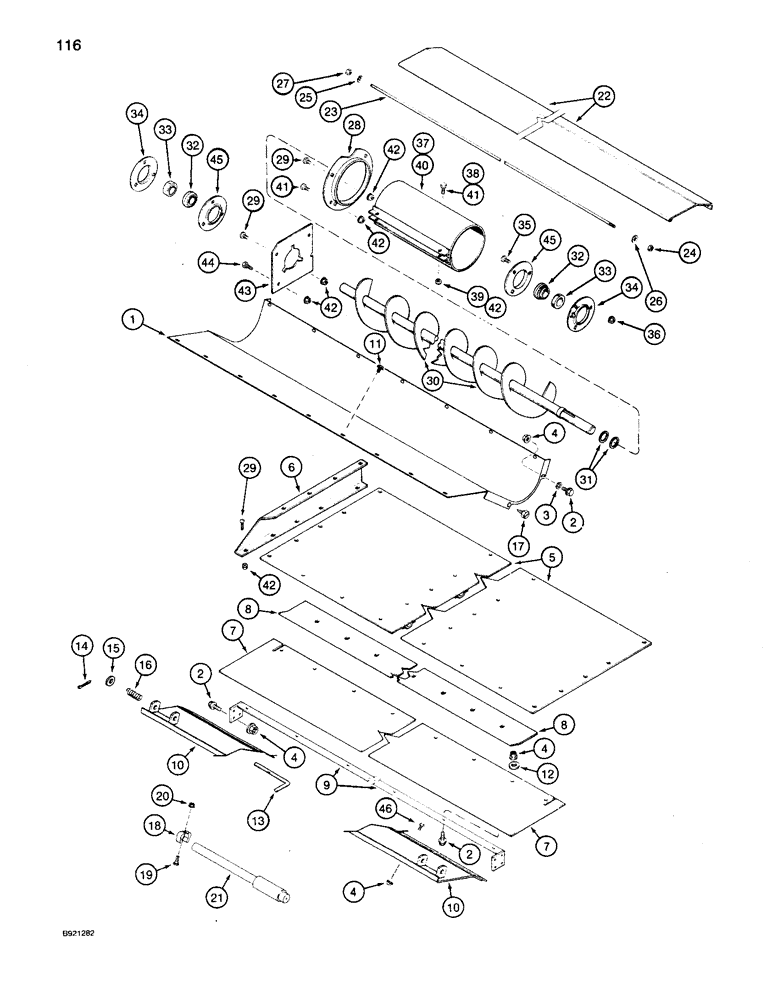

Запчасти Case IH 1680 (116) - TAILINGS AUGER TROUGH, EXTENDED LENGTH CLEANING SYSTEM (66) - THRESHING

1

1346938C1

TROUGH

- auger

1шт.

2

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

12шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

5

1970423C1

SHEET

PANEL - tailings return

1шт.

6

1346963C1

SUPPORT

- tailings support pan

2шт.

7

1979194C1

SEAL

- tailings pan

1шт.

8

1979220C1

DEFLECTOR

- cleaning air

1шт.

9

1970529C1

SUPPORT

- tailings door

1шт.

10

191978C1

GATE ASSY

TAILGATE - trough

1шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

12

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

13

186736C1

ROD

- tailgate lock

2шт.

14

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

15

495-51041

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

16

540815R1

SPRING

- lock pin

2шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

18

106744A1

CLIP

- retainer, handle extension

1шт.

19

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

20

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10 NC

1шт.

21

106743A1

HANDLE

- extension

1шт.

22

185196C1

DOOR

- cover, trough

1шт.

23

185197C1

ROD

- auger door

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

27

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

1шт.

28

160324C2

FLANGE

- mounting, auger cover

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

1шт.

30

192549C2

AUGER

- tailings

1шт.

31

495-81289

WASHER,1.25" ID x 2.75" OD x 0.16" Thk

- flat, 1-1/4 x 2-3/4 x 5/32 inch

1шт.

32

939475R92

BEARING ASSY

- auger

2шт.

33

557115R11

COLLAR

COLLAR - locking

2шт.

34

939460R91

FLANGE

- bearing

2шт.

35

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

6шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

37

192696C1

EXTENSION

- extension (Non-perforated)

1шт.

38

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

39

9412083

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

3шт.

40

195075C1

SCREEN

- extension (Perforated)

1шт.

41

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

3шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

43

183158C1

COVER

PLATE - support, bearing

1шт.

44

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

45

939461R1

FLANGE

- bearing

2шт.

46

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 x 1/2 inch

8шт.
