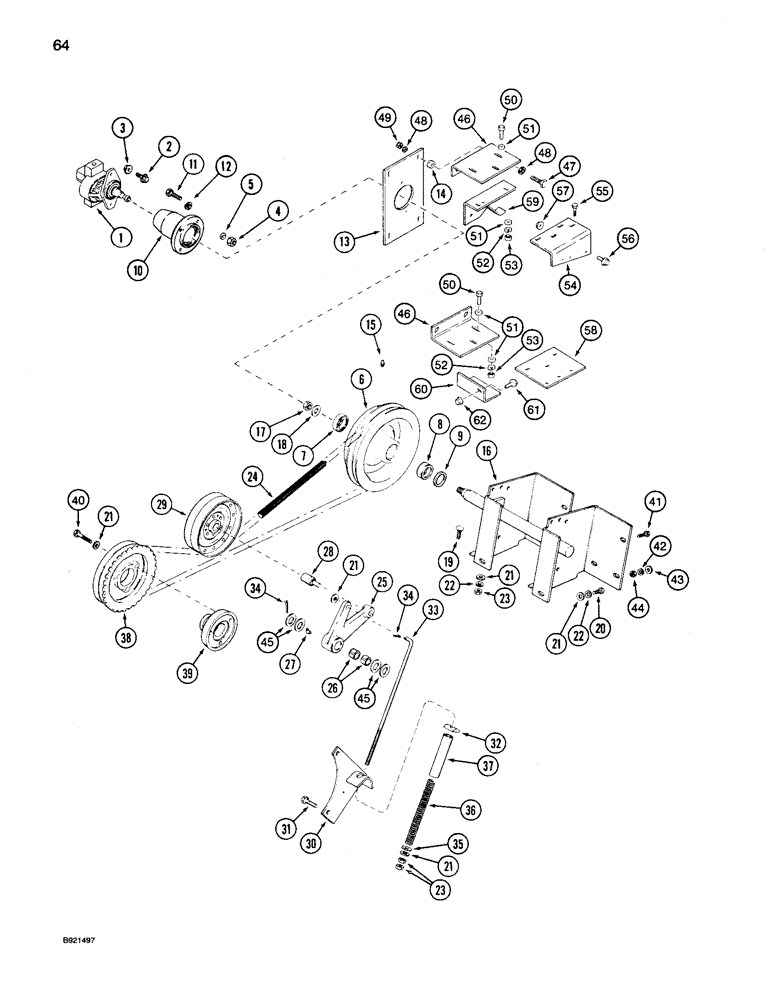

Запчасти Case IH 1680 (064) - AUXILIARY PUMP MOUNTING AND DRIVE, HEADER PUMP AND REEL DRIVE (35) - HYDRAULIC SYSTEMS

1

1994653C2

PUMP

ASSEMBLY auxiliary, see pump repair kits at bottom of Figure

1шт.

1994653C2R

REMAN-HYD PUMP

1680

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex flange, 1/2 NC x 1-1/2 inch

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch

1шт.

6

1541762C1

PULLEY

ASSEMBLY - auxiliary pump drive

1шт.

7

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - ball

1шт.

8

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

BEARING - pulley

1шт.

9

466176R92

SEAL

- pulley

1шт.

10

1541612C1

HUB

- hydraulic pump

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

1541733C1

LARGE PLATE

SUPPORT - auxiliary pump

1шт.

14

R29799

SHOCK ABSORBER

ABSORBER - rubber

4шт.

15

87414

LUBE NIPPLE,1/4" - 28

FITTING - lube, 1/4 inch, straight

1шт.

16

191228C3

BRACKET

- auxiliary drive rear

1шт.

17

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

18

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

- flat, 25/32 x 1-3/4 x 7/64 inch

1шт.

19

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

10шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

24

1541700C1

V-BELT,2490.62 mm L

Auxiliary Pump Drive, a 2 Joined Belt 2490.62 mm L

1шт.

25

1330517C1

LEVER

- auxiliary pump drive

1шт.

26

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

- lever

2шт.

27

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - 45 degree, self-tapping, 1/4-28 inch

1шт.

28

274844R91

BEARING ASSY,30mm OD x 73.66mm L

- idler pulley

1шт.

29

192865C1

PULLEY

- idler, 8 inch OD

1шт.

30

194729C2

SUPPORT

- pump drive pivot

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

32

194652C1

PIVOT

BAR - drive pivot

1шт.

33

191823C1

ROD

- auxiliary drive jackshaft

1шт.

34

432-1216

COTTER PIN,3/16" x 1"

1шт.

35

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

36

V368

SPRING

- drive rod

1шт.

37

1541718C1

SPACER

- drive rod

1шт.

38

1330488C1

PULLEY

- auxiliary pump drive, 8.85 inch OD

1шт.

39

196482C2

HUB

- drive pulley

1шт.

40

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

41

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange 5/16 NC x 1-1/4 inch

4шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

43

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

- flat, 11/32 x 1 x 3/32 inch

4шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

45

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

46

1541732C1

SUPPORT ASSY.

SUPPORT - isomount, auxiliary pump

2шт.

47

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

48

895-81164

WASHER

- flat, 17/32 x 1-3/4 x 5/32 inch

8шт.

49

231-4118

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch

4шт.

50

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

51

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

12шт.

52

492-11038

LOCK WASHER,3/8"

6шт.

53

425-106

NUT,3/8"-16, Cl 5

6шт.

54

1541734C1

SUPPORT

- upper, isomount

1шт.

55

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

56

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

57

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

58

1541735C1

SUPPORT

- lower, isomount

1шт.

59

1541742C1

SUPPORT ASSY.

SUPPORT - belt guide, upper

1шт.

60

1541741C1

SUPPORT

- belt guide, lower

1шт.

61

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

1шт.

62

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

1543179C1

SEAL KIT

KIT - seal, pump (Not shown) auxiliary pump repair kits

1шт.

1543180C1

PACKAGE, REPAIR

KIT - seal, relief valve (Not shown), auxiliary pump repair kits

1шт.

1543181C1

PACKAGE, REPAIR

KIT - flow control valve (Not shown), auxiliary pump repair kits

1шт.

1543182C1

PUMP, HYDRAULIC

KIT - front pump (Not shown), auxiliary pump repair kits

1шт.

1543183C1

PACKAGE, REPAIR

KIT - rear pump (Not shown), auxiliary pump repair kits

1шт.

1543196C1

SEAL KIT

KIT - shaft seal (Not shown), auxiliary pump repair kits

1шт.
