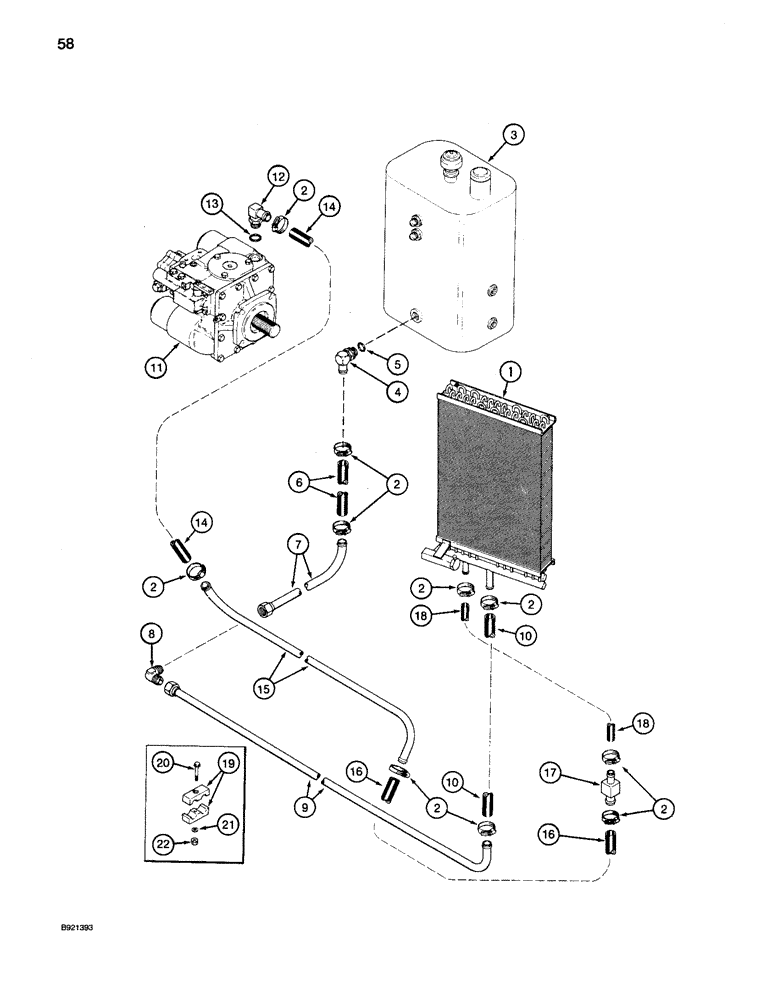

Запчасти Case IH 1680 (058) - OIL COOLER SYSTEM, CORN AND GRAIN COMBINE, WITHOUT POWER GUIDE AXLE (35) - HYDRAULIC SYSTEMS

1

A189469

COOLER

ASSEMBLY - hydraulic oil (See Page 63)

1шт.

2

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose retaining

10шт.

3

1343660C1

RESERVOIR

ASSEMBLY - hydraulic oil (See Page 53)

1шт.

4

178995C1

ELBOW

- 90 degree, 1-1/16-12 x 1 inch barb end

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

6

REF

INSTRUCTION

HOSE - cooler to reservoir, 394 mm (See Note B)

1шт.

7

1979731C1

TUBE

- cooler return

1шт.

8

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch thread

1шт.

9

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE - cooler to reservoir

1шт.

10

REF

INSTRUCTION

HOSE - cooler to reservoir, 1040 mm (See Note B)

1шт.

11

1343716C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydrostatic (See Pages 33 - 41)

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1680, Reman for New P/N 1343716C1

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

12

178995C1

ELBOW

- 90 degree, 1-1/16-12 thread x 1 inch barb end

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

REF

INSTRUCTION

HOSE - cooler to pump, 610 mm (See Note B)

1шт.

15

1979658C1

HYD TUBE,1" OD

TUBE - cooler to pump

1шт.

16

REF

INSTRUCTION

HOSE - cooler to adapter, 343 mm (See Note B)

1шт.

17

1979768C1

ADAPTER

- hose, special, 1 x 3/4 inch

1шт.

18

REF

INSTRUCTION

HOSE - to oil cooler, 559 mm (See Note A)

1шт.

19

1347071C1

CLAMP

- tube retaining, 1 x 1 inch

2шт.

20

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

21

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

2шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, self-locking, 5/16 inch NC

2шт.
