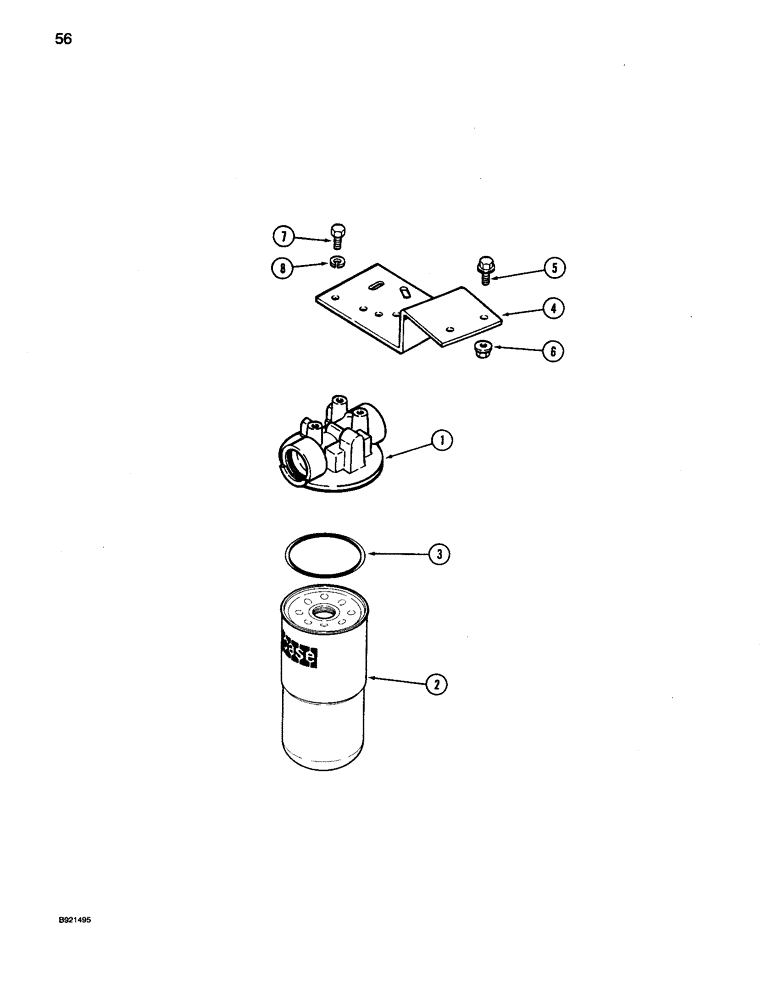

Запчасти Case IH 1680 (056) - HYDRAULIC CHARGE FILTER, CORN, GRAIN AND RICE COMBINE (35) - HYDRAULIC SYSTEMS

87784C91

FILTER ASSY

FILTER ASSEMBLY - hydraulic charge pump

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of Element Service Kit P/N 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter

1шт.

Part of Element Service Kit P/N 1329214C1

1шт.

4

1979993C2

SUPPORT

- charge pump filter

1шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange, self-locking, 3/8 NC x 1 inch

2шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, self-locking, 3/8 inch NC

2шт.

7

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

8

492-11038

LOCK WASHER,3/8"

3шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - service, element, Includes: Ref. 2 and 3

1шт.
