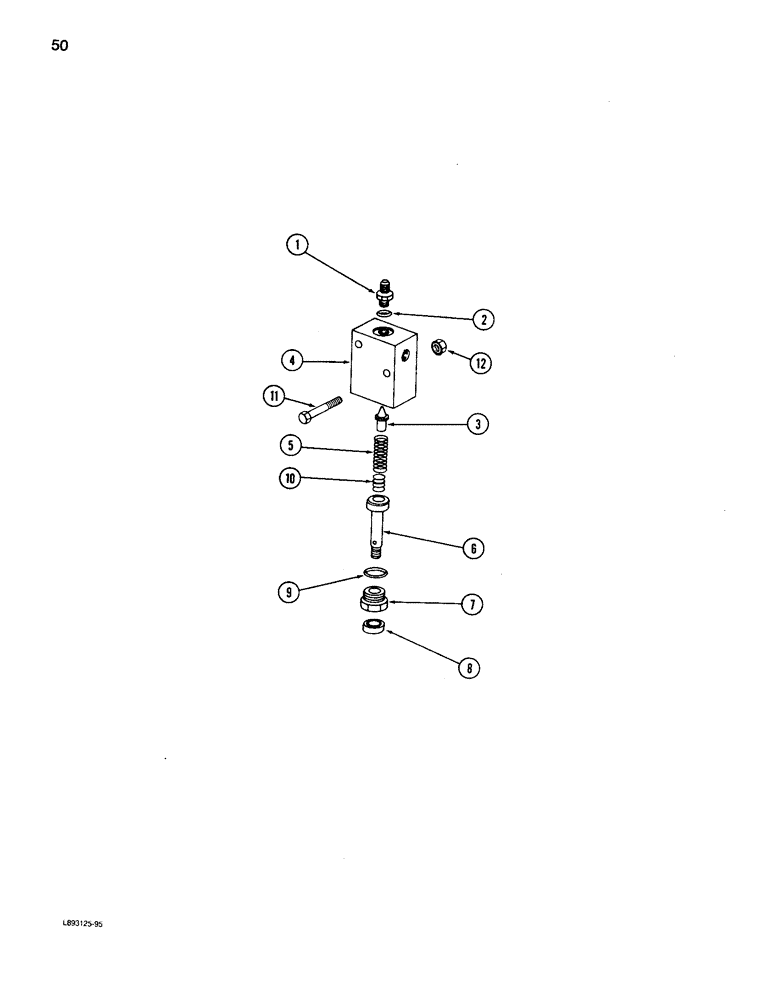

Запчасти Case IH 1680 (050) - FOOT-N-INCH VALVE ASSEMBLY (29) - HYDROSTATIC DRIVE

1986875C1

VALVE

ASSEMBLY - Foot-N-Inch, 6000 PSI (housing stamped 60-75), used with corn and grain units

1шт.

1986876C1

VALVE

ASSEMBLY - Foot-N-Inch, 6500 PSI (housing stamped 65-76), used with rice units only

1шт.

1

398709R1

SEAT

- poppet valve

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

398710R1

VALVE POPPET

VALVE - poppet

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

5

539751R1

SPRING

- valve

1шт.

6

398708R1

STOP

- valve

1шт.

7

398707R1

GUIDE

- valve spring stop

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

- oil

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - relief valve (order 530575R91 kit, see below)

1шт.

530575R91

SHIM KIT

KIT - relief valve shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, self-locking, 3/8 inch NC

2шт.
