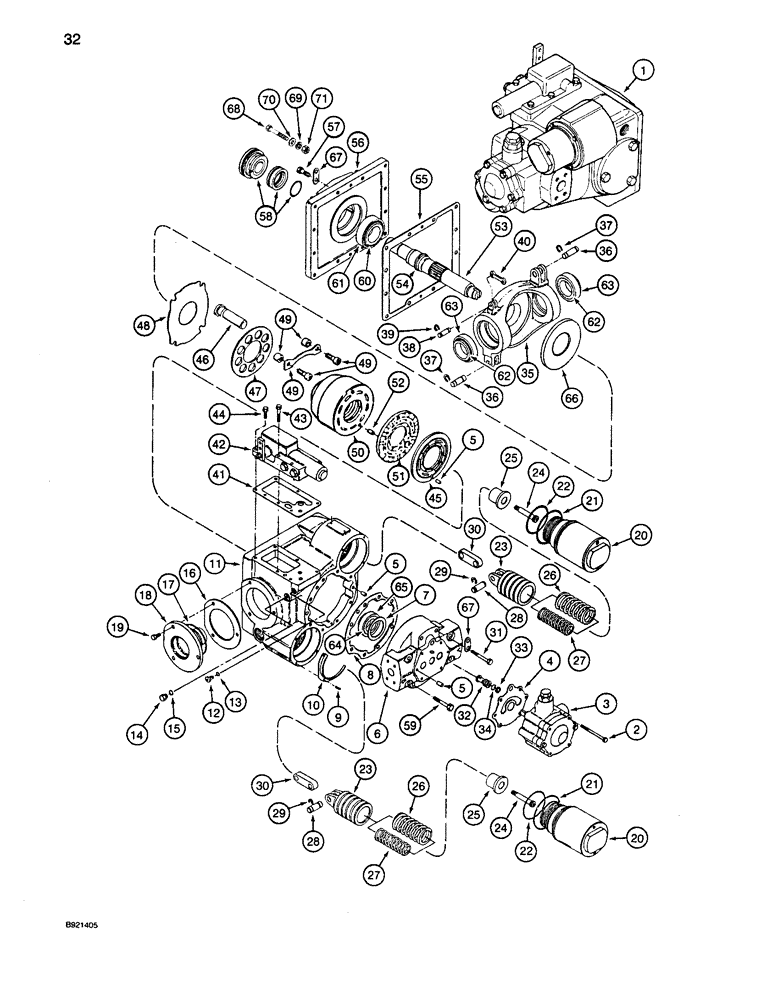

Запчасти Case IH 1680 (032) - HYDROSTATIC PUMP, CORN AND GRAIN COMBINE (29) - HYDROSTATIC DRIVE

1

1343716C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydrostatic, new

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1680, Reman for New P/N 1343716C1

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.

3

92740C1

PUMP

- charge (See parts list page 41)

1шт.

4

133760C2

GASKET

- charge pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

6

NSS

NOT SOLD SEPARAT

COVER - end pump

1шт.

142398C91

SHIM KIT

KIT - shim, end cover

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

8

92741C2

GASKET,0.38mm Thk

- end cover

1шт.

9

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW - hex socket, No. 8-32 x 3/8 inch

6шт.

10

142408C1

RETAINER

- servo

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

12

1288962C1

PLUG

- hex socket

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

14

9410356

PLUG

- hex, 1/4 inch thread O-ring boss

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

KIT - shim, trunnion bearing

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch

6шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

4шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

4шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

18

NSS

NOT SOLD SEPARAT

TRUNNION - pump

2шт.

19

113-316

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

6шт.

20

142407C2

KIT

SLEEVE - servo

2шт.

21

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

22

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3 x 3-1/4 x 1/8 inch, servo sleeve

2шт.

23

224669C91

PISTON

ASSEMBLY - servo

2шт.

24

NSS

NOT SOLD SEPARAT

SCREW - hex socket

1шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - servo spring

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - servo, light

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

29

NSS

NOT SOLD SEPARAT

RING - link retaining

2шт.

30

NSS

NOT SOLD SEPARAT

LINK - servo

1шт.

1343716C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydrostatic, continued

1шт.

31

113-347

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

32

140769C1

CHECK VALVE

VALVE - check

2шт.

33

140770C1

RING

- check valve

2шт.

34

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

35

1980171C1

HOUSING

PLATE - swash

1шт.

36

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

37

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

38

140765C1

PIN

- link, control valve

1шт.

39

A7111

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin #25, Ext

2шт.

40

142402C1

LINK

- connecting, control valve

1шт.

42

133755C94

VALVE

ASSEMBLY - control, parts list page 39

1шт.

43

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex, 5/16 NC x 1-3/4 inch

2шт.

44

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

45

1980173C1

PLATE

- pump valve

1шт.

1980138C1

KIT

- rotating, cylinder

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

47

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

48

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

49

NSS

NOT SOLD SEPARAT

KIT - hold down, piston

1шт.

50

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

51

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

52

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

53

1980169C1

SHAFT

- input

1шт.

54

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

55

142399C1

GASKET

- mounting flange

1шт.

56

NSS

NOT SOLD SEPARAT

FLANGE - mounting

1шт.

57

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

- hex, 7/16 NC x 1-1/4 inch

12шт.

58

1346205C1

SEAL KIT

SEAL - shaft, three piece

1шт.

59

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch, grade 8

2шт.

1343716C1

PUMP, HYDRAULIC

ASSEMBLY continued

1шт.

60

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

tapered roller, input shaft

1шт.

61

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP input shaft

1шт.

62

400987C1

BEARING ASSY,1.785" ID x 2.892" OD x 0.77, 0.62"

tapered roller, trunnion

2шт.

63

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP trunnion 2-57/64 inch OD

2шт.

64

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

tapered roller, input shaft 1-3/16 inch ID

1шт.

65

530741R1

BEARING CUP

CUP bearing, input shaft 2-17/32 inch OD

1шт.

66

80369C1

PLATE

thrust

1шт.

67

NSS

NOT SOLD SEPARAT

STRAP shipping (shown for reference only)

2шт.

68

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

69

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

70

283856C1

WASHER

flat, 17/32 x 1 x 3/16 inch

4шт.

71

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
