Запчасти Case IH 1680 (022) - POWER TAKE-OFF DRIVE (14) - MAIN GEARBOX & DRIVE

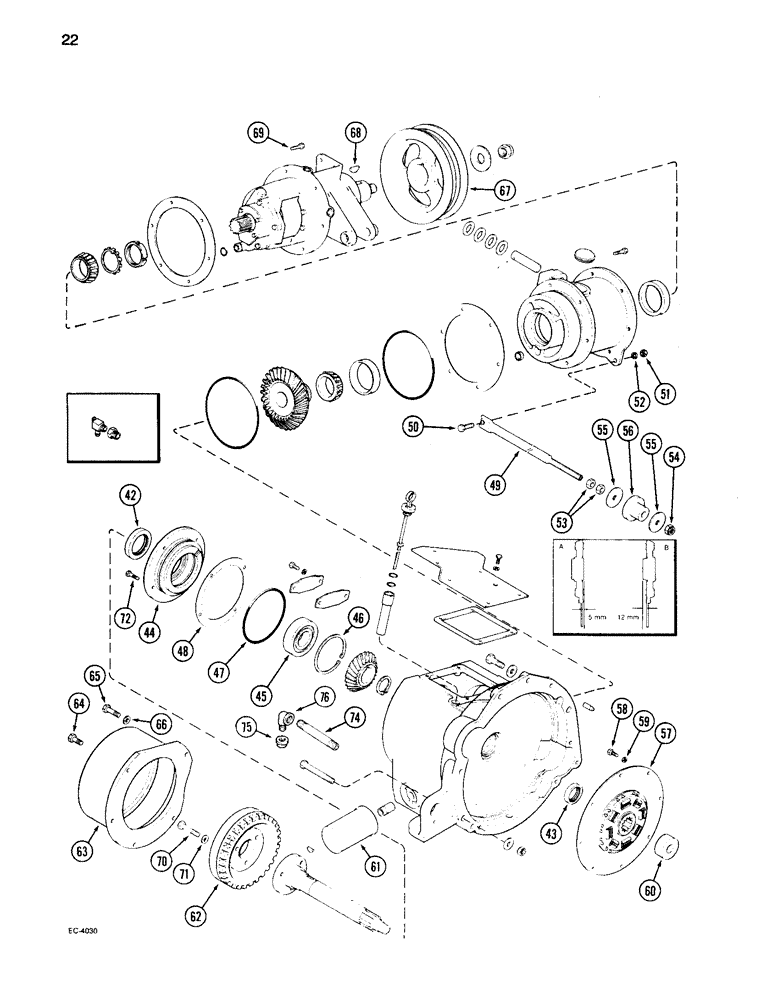

Схема запчастей Case IH 1680 - (022) - POWER TAKE-OFF DRIVE (14) - MAIN GEARBOX & DRIVE
65
67
52
49
72
63
74
76
59
42
44
57
54
66
43
71
64
75
61
60
48
56
55
70
46
53
69
50
51
47
55
62
58
45
68

Артикул

Название

Примечание

Количество

42

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

- PTO shaft

1шт.

43

173559C91

SEAL

- PTO drive shaft

1шт.

44

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB - drive shaft bearing housing

1шт.

45

1541765C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

BEARING - drive shaft, 4-23/32 inch OD, standard

1шт.

45

1541766C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

BEARING - drive shaft, 4-23/32 inch OD, optional

1шт.

46

27822R1

SNAP RING,4.78", Int, #475

RING - snap, internal retaining, 5.213 inch

1шт.

47

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

188196C1

SHIM KIT

KIT - shim, hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, drive shaft hub

1шт.

49

1315648C1

ROD

- snubber, engine

1шт.

50

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

51

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

53

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

54

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

55

107813R1

WASHER

- engine snubber

2шт.

56

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber

1шт.

57

184454C1

CLUTCH PLATE,352.4mm OD

PLATE - PTO drive (see inset B)

1шт.

57

184429C2

CLUTCH DISC,352.4mm OD

PLATE - PTO drive (see inset A)

1шт.

184429C2R

REMAN-CLUTCH DISC

1680

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

58

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

59

366862C1

LOCK WASHER,3/8"

3/8"

8шт.

60

1324896C1

BUSHING

- power takeoff flywheel

1шт.

61

70203C1

FILTER

- oil, PTO

1шт.

62

196481C1

PULLEY

- auxiliary pump drive

1шт.

63

1303141C1

HOUSING

- hydrostatic pump

1шт.

64

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

65

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

66

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

2шт.

67

1541713C1

PULLEY

- separator drive

1шт.

68

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY - Woodruff, 5/16 x 2-1/8 inch

1шт.

69

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, grade 8

6шт.

70

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

71

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

3шт.

72

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

74

221-200

PIPE

NIPPLE - straight, 1/2 PT x 7 inch

1шт.

75

119101

CAP,1/2" NPT

- pipe, 1/2 inch PT

1шт.

76

444171

ELBOW

- 1/2 inch, 90 degree

1шт.

Выбрано товаров: 42
