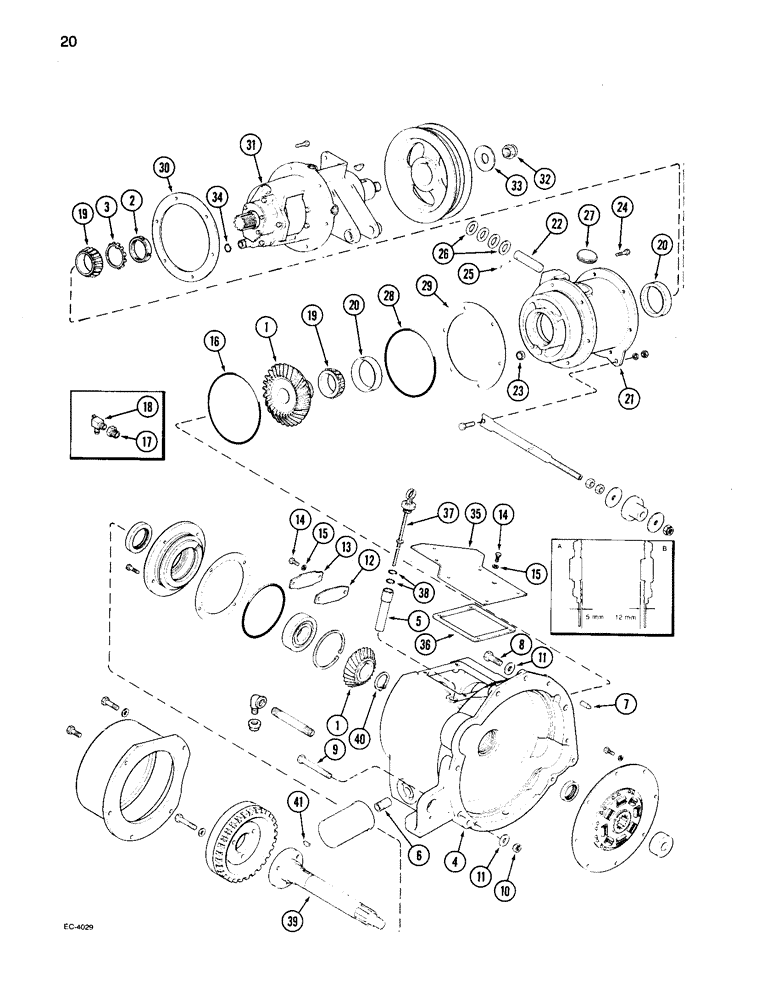

Запчасти Case IH 1680 (020) - POWER TAKE-OFF DRIVE (14) - MAIN GEARBOX & DRIVE

1

184497C1

GEAR-SET

GEAR SET - separator drive, 41 and 31 teeth (matched set)

1шт.

2

191283C1

BEARING LOCK NUT

- bearing lock

1шт.

3

191284C1

LOCK WASHER

- lock

1шт.

4

184427C3

HOUSING

ASSEMBLY - engine PTO

1шт.

5

188072C1

TUBE,25.4 mm OD, 127 mm Length

- dipstick, oil

1шт.

6

188214C1

FITTING

- housing filter

1шт.

7

1330136C1

DOWEL

PIN - dowel, locating

2шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

9

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

10

425-1010

NUT,5/8"-11, G5

hex, self-locking 5/8"-11, G5

4шт.

11

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

6шт.

12

185057C2

GASKET,0.91mm Thk

- access cover

1шт.

13

185056C1

COVER

- bolt access hole

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

15

492-11038

LOCK WASHER,3/8"

6шт.

16

238-8267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

PTO housing -267, Cl 8, 8.234" ID x .139" Thk

1шт.

17

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT (if equipped)

1шт.

18

301803R1

SHUT-OFF VALVE

VALVE - PTO drain (if equipped)

1шт.

19

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

BEARING - tapered roller

2шт.

20

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

CUP - bearing

2шт.

21

188161C91

HOUSING

- separator drive clutch

1шт.

22

195439C2

PIN,25.29mm OD x 101.6mm L

- clutch housing

1шт.

23

41-1016

PLUG,Cup, 1"

- cup type expansion, 1 inch diameter

1шт.

24

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

26

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

27

663906R1

CAP

- clutch housing

1шт.

28

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

- clutch housing

1шт.

188195C1

SHIM KIT

KIT - shim, housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, separator clutch housing

1шт.

30

188425C1

GASKET

- housing, Serial Range: cover-clutch

1шт.

31

1541764C1

CLUTCH ASSEMBLY

- separator drive (see pages 25 and 27)

1шт.

32

27008R1

LOCK NUT,1 1/4"-7, GC

NUT - hex, self-locking, 1-1/4 inch NC

1шт.

33

27268R1

WASHER,1 3/8" x 3" x 1/4", HDN

- flat, 1-3/8 x 3 x 1/4 inch

1шт.

34

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Fitting, pump connecting -020, 90 Duro, .864" ID x .070" Thk

1шт.

35

188451C1

COVER

- PTO housing

1шт.

36

191830C2

GASKET

- PTO cover

1шт.

37

186019C91

DIPSTICK

- PTO housing oil

1шт.

38

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

39

192816C1

SHAFT

- PTO drive

1шт.

40

23483R1

SNAP RING,#200, Ext

Ring, Snap, , drive shaft #200, Ext

1шт.

41

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY - Woodruff, 5/16 x 2-1/8 inch

1шт.
