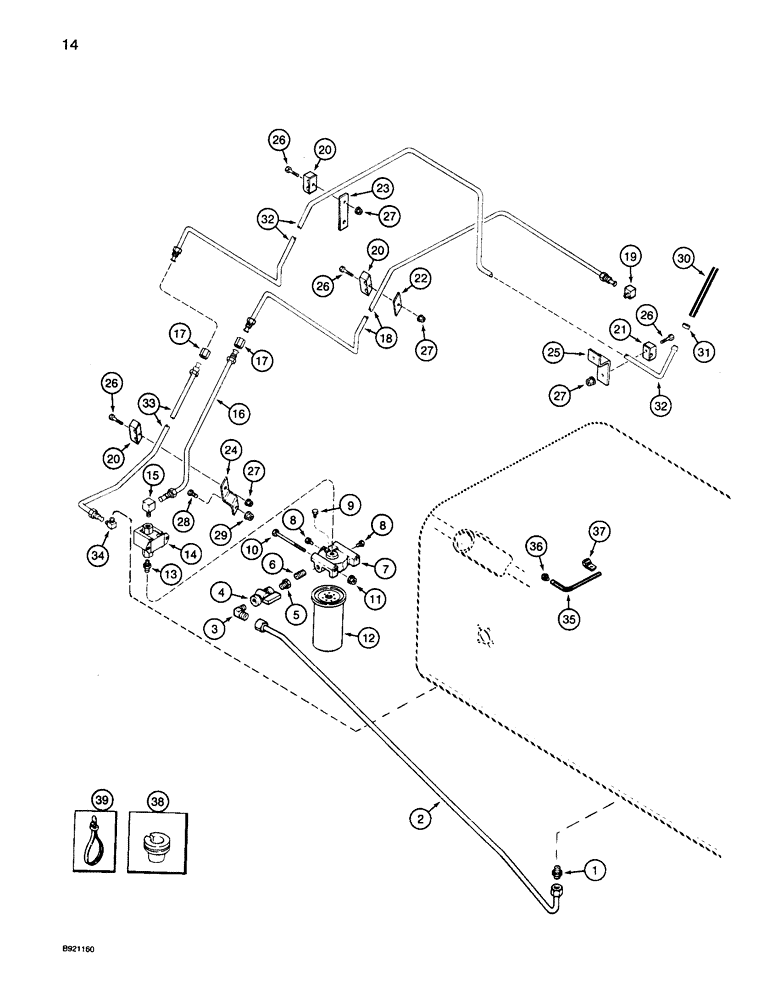

Запчасти Case IH 1680 (014) - FUEL LINE SYSTEM (10) - ENGINE

1

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - 3/8 x 3/4 inch

1шт.

2

1994883C1

FUEL TUBE

TUBE - fuel line lower suction

1шт.

3

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 1/2 inch 90 degree

1шт.

4

1345205C1

SHUT-OFF VALVE

VALVE - fuel shut off

1шт.

5

444032

BUSHING,1/2"-14 NPTF x 1/4"-18 Fem NPTF

- 1/2 x 1/4 inch

1шт.

6

443978

FITTING,1/4"-18 NPTF, Brass

NIPPLE - 1/4 inch

1шт.

7

612277C2

FILTER HEAD

BASE - fuel filter

1шт.

8

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4 inch PT

2шт.

9

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8 inch PT

1шт.

10

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 NC x 4 inch

2шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

BOLT - hex flange, self-locking, 5/16 inch NC

2шт.

12

A184776

FUEL FILTER

FILTER - fuel

1шт.

13

443986

REDUCER,1/4"-18 NPTF x 1/8"-27 NPTF

NIPPLE - pipe, reducer, 1/4 to 1/8 inch PT

1шт.

14

1541797C1

PUMP

ASSEMBLY - fuel, electric, component parts not serviced separately

1шт.

15

1301253C1

ELBOW

- special, at pump outlet

1шт.

16

1541837C1

FUEL TUBE

TUBE - fuel line, lower supply

1шт.

17

442338

UNION

- inverted flared tube, 3/8 inch

2шт.

18

1330557C1

FUEL TUBE

TUBE - fuel line pressure, upper

1шт.

19

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- 90 degree, inverted flared tube, 3/8 inch

1шт.

20

183825C1

CLAMP

- fuel line tube

3шт.

21

183821C1

CLAMP

- lower tubes

1шт.

22

198462C1

PLATE

- fuel line clamp

1шт.

23

1330564C1

PLATE

SUPPORT - fuel lines

1шт.

24

1977005C1

SUPPORT

- tube, fuel lower

1шт.

25

196517C1

SUPPORT TUBE

SUPPORT - tube, lower fuel

2шт.

27

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, self-locking, 1/4 inch NC

4шт.

28

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, self-locking, 5/16 inch NC

1шт.

30

REF

INSTRUCTION

HOSE - return, fuel (order 364357C1 and, Serial Range: cut-length)

1шт.

31

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

1шт.

32

1330558C3

FUEL TUBE

TUBE - fuel line return, upper

1шт.

33

183653C2

FUEL TUBE

TUBE - fuel line return, lower

1шт.

34

144535R1

ELBOW

- fuel line lower tubes

1шт.

35

REF

INSTRUCTION

TUBE - vent, 3175 mm (order 74813C1 and, Serial Range: cut-length)

1шт.

36

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

1шт.

37

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - tube

3шт.

38

195803C1

GROMMET

- tube, 3/8 inch OD

1шт.

39

533959R1

CABLE TIE,.135" x 11"

STRAP - retaining

1шт.

26

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
