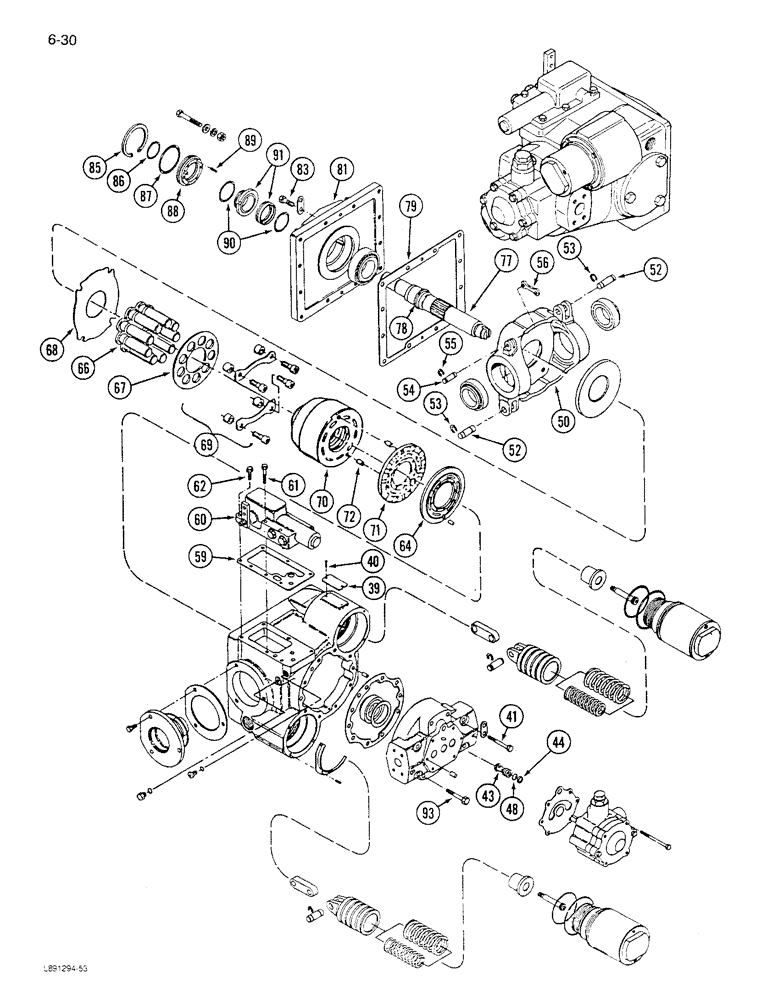

Запчасти Case IH 1680 (6-030) - HYDROSTATIC PUMP ASSEMBLY, W/ SINGLE & DUAL SPEED MOTOR, CORN, GRAIN, AND RICE COMBINE, (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, continued

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate

2шт.

41

113-347

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

43

140769C1

CHECK VALVE

VALVE - check

2шт.

44

140770C1

RING

- check valve

2шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

50

1980171C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- link, control valve

1шт.

55

A7111

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin #25, Ext

2шт.

56

142402C1

LINK

- connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

REF

INSTRUCTION

VALVE - control (See Figure 6-46)

1шт.

61

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex, 5/16 NC x 1-3/4 inch

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

1980173C1

PLATE

- pump valve

1шт.

1980138C1

KIT

ROTATING KIT - cylinder, Includes: Ref. 66 - 72

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

69

NSS

NOT SOLD SEPARAT

HOLD DOWN KIT - piston

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

71

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

72

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

77

1980169C1

SHAFT

ASSEMBLY - input, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

79

142399C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting (Order assembly)

1шт.

83

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

12шт.

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, Includes: Ref. 85 - 91

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

S113612

O-RING

- 1-3/8 x 1-1/2 x 1/16 inch

1шт.

87

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal

6шт.

90

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

93

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch

2шт.
