Запчасти Case IH 1680 (6-028) - HYDROSTATIC PUMP ASSEMBLY, W/ SINGLE & DUAL SPEED MOTOR, CORN, GRAIN, AND RICE COMBINE (03) - POWER TRAIN

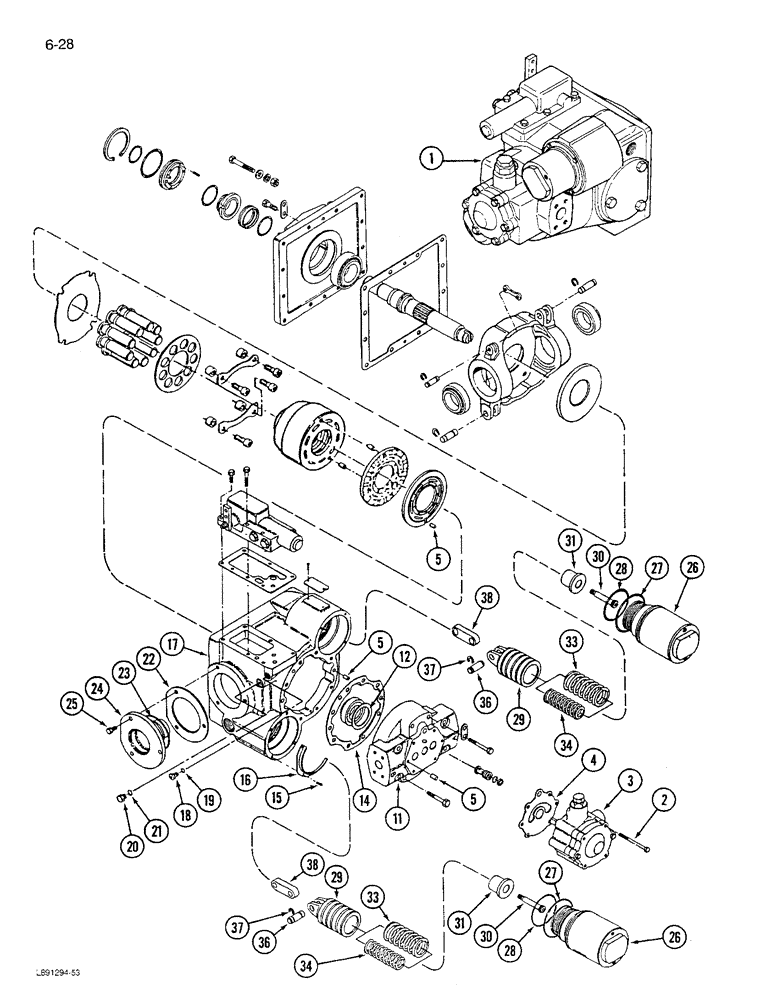

Схема запчастей Case IH 1680 - (6-028) - HYDROSTATIC PUMP ASSEMBLY, W/ SINGLE & DUAL SPEED MOTOR, CORN, GRAIN, AND RICE COMBINE (03) - POWER TRAIN
4
36
36
25
37
26
15
38
27
29
28
21
34
33
11
12
18
23
38
28
24
34
19
16
2
5
17
27
33
3
22
14
1
20
26
37
31
30
5
31
5
29
30

Артикул

Название

Примечание

Количество

1

1958078C1

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new

1шт.

1

1958079C1

REMAN-HYDROSTAT PUMP

Pump Assembly - hydrostatic, remanufactured

1шт.

1

1979636C1

CORE-HYDROSTAT PUMP

Return Number - use this part number to return pump core for credit

1шт.

2

326-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

- hex, 5/16 NC x 3-1/2 inch

4шт.

3

REF

INSTRUCTION

PUMP - charge (See Figure 6-48, 50)

1шт.

4

1986882C1

GASKET

- charge pump (Replaces 133760C2)

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump (Order assembly)

1шт.

142398C91

SHIM KIT

- end cover, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

14

92741C2

GASKET,0.38mm Thk

- end cover

1шт.

15

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW - hex socket, No. 8-32 x 3/8 inch

6шт.

16

142408C1

RETAINER

- servo

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order assembly)

1шт.

18

1288962C1

PLUG

- hex socket, Includes: Ref. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

9410356

PLUG

- hex, 1/4 inch thread

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

- trunnion bearing, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch

6шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

23

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Trunnion -234, 70 Duro, 2.984" ID x .139" Thk

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION - pump

2шт.

25

113-316

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

6шт.

26

142407C1

KIT

SLEEVE - servo

2шт.

27

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

Servo sleeve -237, 70 Duro, 3.359" ID x .139" Thk

2шт.

28

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Servo sleeve -234, 70 Duro, 2.984" ID x .139" Thk

2шт.

29

224669C91

PISTON

ASSEMBLY - servo, Includes: Ref. 30 - 38

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, light

1шт.

36

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

37

NSS

NOT SOLD SEPARAT

RING - link retaining

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - servo

1шт.

Выбрано товаров: 43
