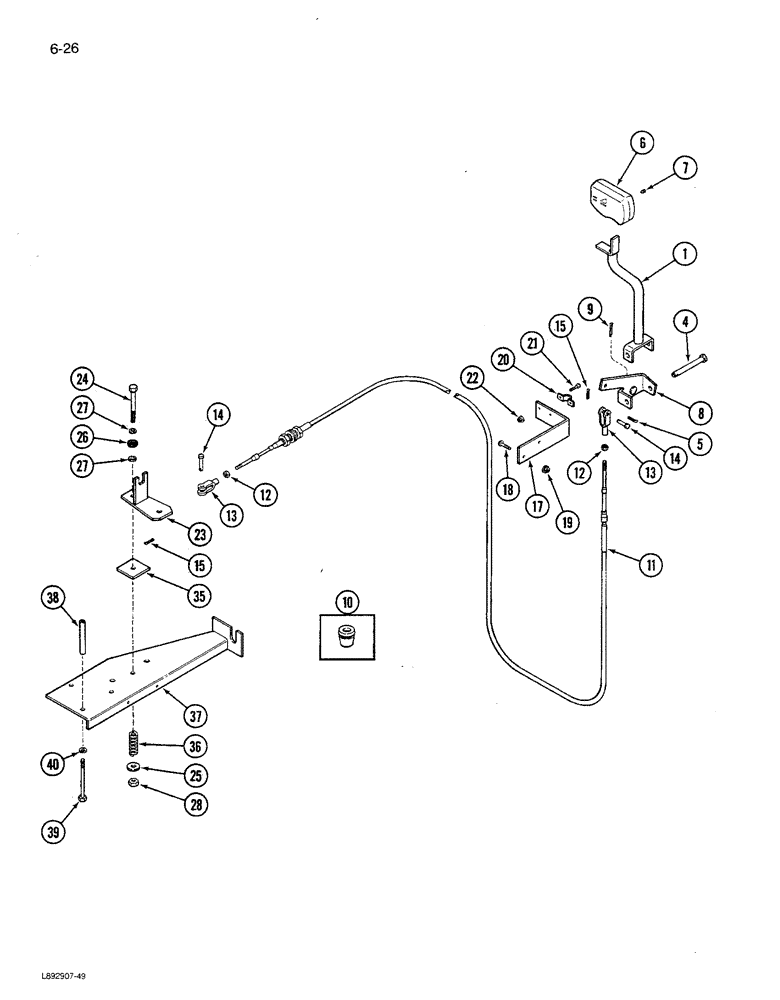

Запчасти Case IH 1680 (6-026) - PROPULSION CONTROL (03) - POWER TRAIN

1

183508C93

LEVER

- propulsion control

1шт.

4

28258R1

CLEVIS PIN,1/2" x 3 7/16'"

PIN - clevis, 1/2 inch

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

6

1301180C92

HANDLE

ASSEMBLY - propulsion control arm, Includes: Ref. 7

1шт.

7

61-3068

HEX SOC SCREW,#6 - 32 x 1/2"

SCREW - hex socket head, No. 6 x 1/2 inch

3шт.

8

1267441C1

SUPPORT ASSY.

SUPPORT - lever pivot

1шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hydrostatic drive control cable

2шт.

11

1339382C1

CABLE,4877mm L

- control, hydrostatic drive

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

2шт.

13

144242

CLEVIS

- control cable

2шт.

14

16616R1

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

2шт.

15

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

17

193281C1

ANGLE

- control cable mounting

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

20

195593C1

CLAMP

- control cable

1шт.

21

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

23

151917C94

ARM ASSY.

ARM - pump actuating

1шт.

24

424-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 2

- hex, 7/16 NC x 3-1/4 inch

1шт.

25

25846R1

WASHER

- flat, 15/32 x 1 x 1/16 inch

1шт.

26

159688R91

THRUST BEARING

BEARING - actuating arm

1шт.

27

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, 15/32 inch

2шт.

28

131-667

NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

35

150627C1

FRICTION WASHER

- control arm friction

1шт.

36

28395H

SPRING

- control arm

1шт.

37

1301488C3

SUPPORT

- pump control, Start Serial: JJC0047918

1шт.

37

1979927C2

SUPPORT

- pump control, Serial Range: -JJC0047918

1шт.

38

14233L

SPACER,3/8" Pipe x 2 7/8"

- pump control support, Start Serial: JJC0047918

3шт.

38

600411R1

SPACER,3/8" Pipe x 2 3/4"

- pump control support, Serial Range: -JJC0047918

3шт.

39

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

3шт.

40

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.
