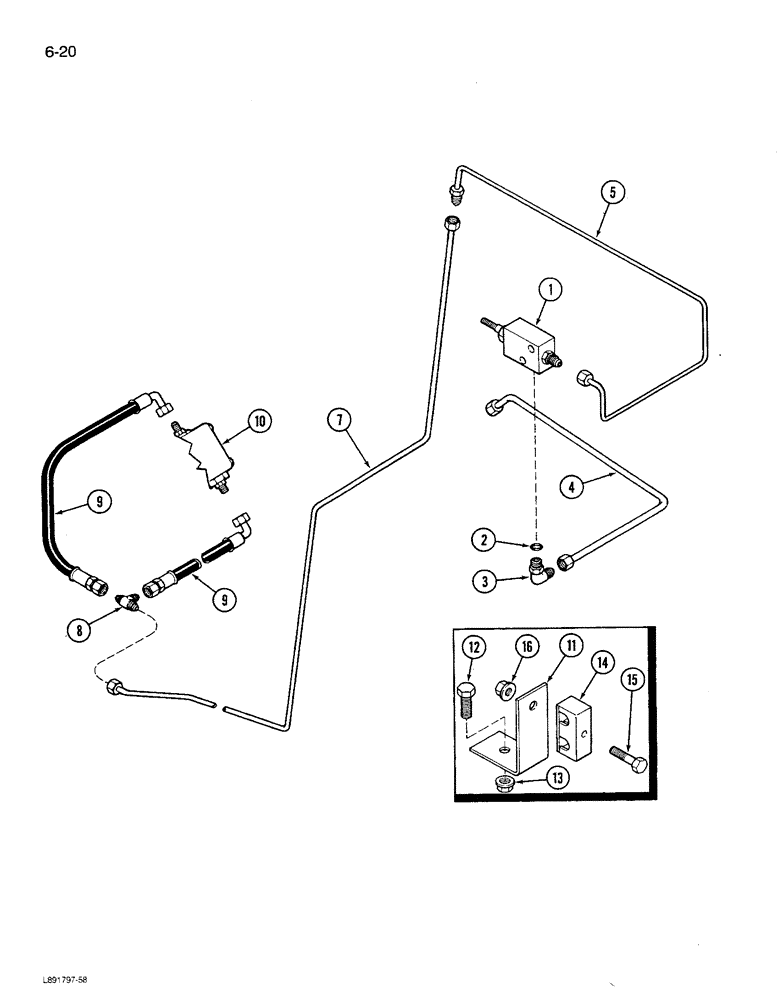

Запчасти Case IH 1680 (6-020) - FOOT-N-INCH VALVE SYSTEM, PRIOR TO P.I.N. JJC0117060 (03) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch (See Figure 6-24)

1шт.

3

164596C1

ELBOW

- 90 degree adjustable, 1/2-20 x 9/16-18 inch thread

1шт.

4

1321271C1

HYD TUBE

TUBE ASSEMBLY - Foot-N-Inch valve return

1шт.

5

1321270C2

HYD TUBE

TUBE ASSEMBLY - Foot-N-Inch, upper

1шт.

7

1327828C1

HYD TUBE

TUBE ASSEMBLY - Foot-N-Inch, lower

1шт.

8

9402979

TEE,7/16"-20, 37 Degree

- three flare, 7/16-20 inch thread

1шт.

9

175760C1

HOSE ASSY.

HOSE - Foot-N-Inch, 10 inch

2шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-52, 56, 62 or 68)

1шт.

11

178950C1

ANGLE

SUPPORT - Foot-N-Inch tube

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

14

183820C1

CLAMP

- Foot-N-Inch tube

2шт.

15

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

15

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

2

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
