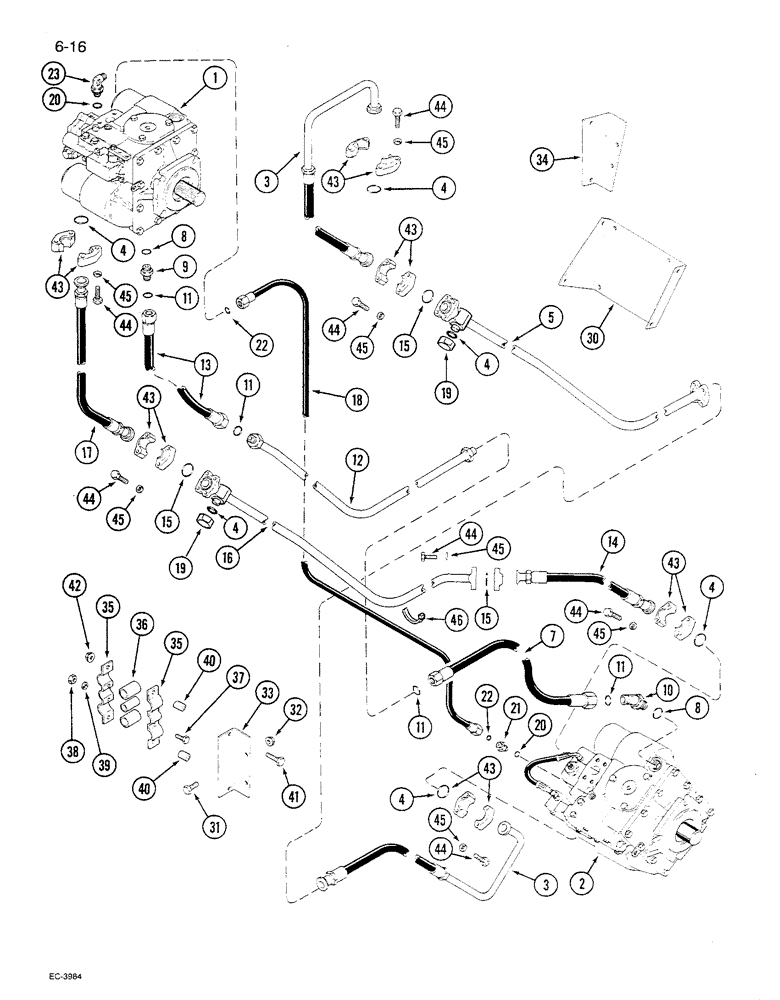

Запчасти Case IH 1680 (6-016) - HYDROSTATIC PUMP AND MOTOR SYSTEM, TWO SPEED, CORN AND GRAIN, P.I.N. JJC0047918 & AFTER (03) - POWER TRAIN

1

1330473C1

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic (See Figure 6-34)

1шт.

2

1343743C1

MOTOR

ASSEMBLY - hydrostatic (See Figure 6-68)

1шт.

3

1979955C1

HOSE

ASSEMBLY - reverse pressure

2шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

1979931C1

TUBE,1.25" OD

ASSEMBLY - reverse pressure 1-1/4 inch OD

1шт.

5

1541757C1

TUBE

ASSEMBLY - reverse pressure 1 inch OD

1шт.

7

1979935C1

HOSE

ASSEMBLY - case drain, lower

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

9

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

CONNECTOR - 3/4 x 1 inch straight ORFS

1шт.

10

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 45 degree adjustable, 1 x 3/4 inch thread

1шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

12

1979932C1

HYD TUBE

TUBE ASSEMBLY - case drain

1шт.

13

1347262C2

HOSE ASSY.

HOSE ASSEMBLY - case drain, lower (Replaces 1347262C1)

1шт.

14

1979953C2

HOSE ASSY.

HOSE ASSEMBLY - forward lower pressure (Replaces 1979953C1)

1шт.

15

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

16

1979930C1

TUBE

ASSEMBLY - forward pressure 1-1/4 inch OD

1шт.

16

1541756C1

PIPE

TUBE ASSEMBLY - forward pressure 1 inch OD

1шт.

17

1979952C2

HOSE ASSY.

HOSE ASSEMBLY - forward upper pressure (Replaces 1979952C1)

1шт.

18

1347126C1

HOSE

ASSEMBLY - charge pressure

1шт.

19

201-907

CAP,1-3/16" - 12 ORFS

Tube 3/4" 1 3/16"-12 ORFS

2шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

21

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

CONNECTOR - straight, 9/16-18 x 7/16-20 inch thread

1шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

23

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

- 90 degree adjustable, 9/16-18 x 7/16-20 inch thread

1шт.

30

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

31

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

6шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

33

1347034C1

SUPPORT

BRACKET - tube rear support

1шт.

34

1347033C1

SUPPORT

BRACKET - tube front support

1шт.

35

1347156C1

SHIN

CLAMP - half, tube

6шт.

35

1979951C1

SHIN

CLAMP - half, tube

6шт.

36

187935C1

STRIP

- pressure tube clamp

9шт.

36

1979963C1

SHIN

STRIP - pressure tube clamp

6шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

40

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

42

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

43

S97224

CLAMP

- split flange, 1 inch

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.

46

289862

CABLE TIE

STRAP - tie

3шт.
