(6-010) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, CORN, GRAIN, & RICE, PRIOR TO P.I.N. JJC0047918

Запчасти Case IH 1680 (6-010) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, CORN, GRAIN, & RICE, PRIOR TO P.I.N. JJC0047918 (03) - POWER TRAIN

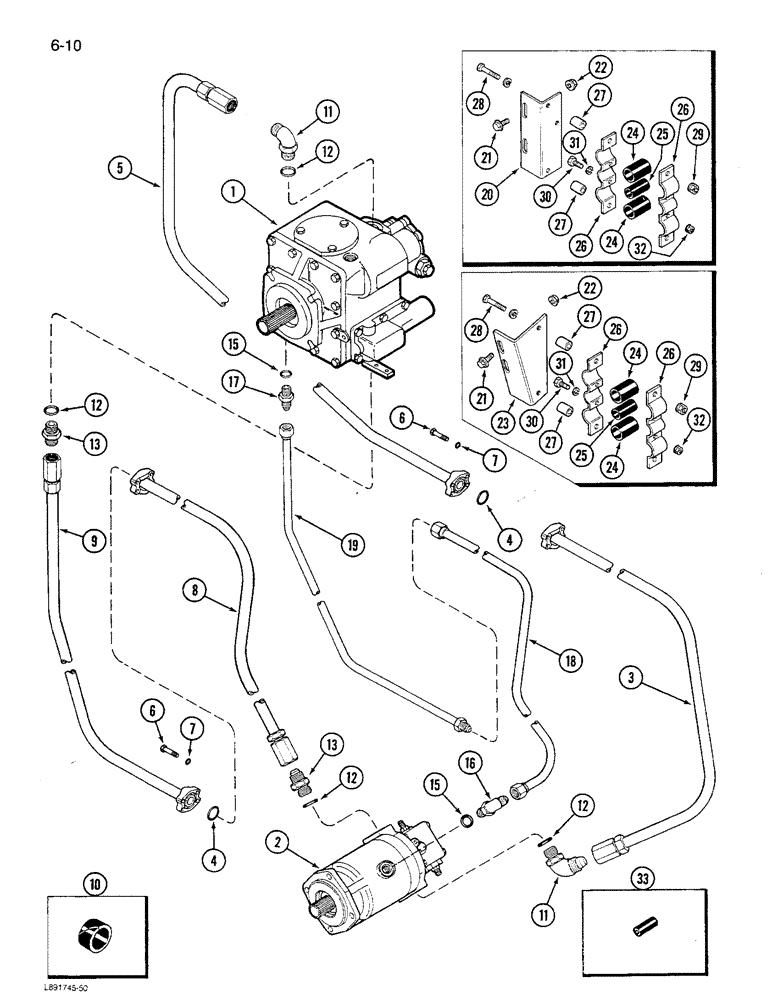

Схема запчастей Case IH 1680 - (6-010) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, CORN, GRAIN, & RICE, PRIOR TO P.I.N. JJC0047918 (03) - POWER TRAIN
30
29
26
25
16
13
1
32
27
6
32
23
4
27
11
17
21
28
26
12
8
26
2
22
26
30
3
7
13
29
24
10
11
12
24
9
15
31
5
24
28
12
22
7
20
4
21
12
24
15
27
6
33
18
27
31
19
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-28)

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-52)

1шт.

3

187600C2

TUBE

ASSEMBLY - drive reverse lower pressure (Includes Ref. 10)

1шт.

4

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

2шт.

5

1970123C3

HYD TUBE

TUBE ASSEMBLY - drive reverse upper pressure

1шт.

6

113-2223

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

8шт.

7

366862C1

LOCK WASHER,3/8"

3/8"

8шт.

8

187602C2

TUBE

ASSEMBLY - drive forward lower pressure (Includes Ref. 10)

1шт.

9

1970124C3

HYD TUBE

TUBE ASSEMBLY - drive forward upper pressure

1шт.

10

165722C1

SLEEVE

- tube nut rubber

2шт.

11

595408R1

90 ELBOW

- 90 degree, 1-5/16-12 inch thread

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1/8 inch

4шт.

13

163915C1

FITTING

CONNECTOR - 1-5/16-12 inch thread

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, 1-1/16-12 inch thread (With Eaton pump)

1шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread (With Sundstrand pump)

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, 1-1/16-12 inch thread

1шт.

18

183591C2

HYD TUBE

TUBE ASSEMBLY - bleed lower (Used with Eaton pump)

1шт.

18

187598C1

HYD TUBE

TUBE ASSEMBLY - bleed lower (Used with Sundstrand pump)

1шт.

19

1330467C2

HYD TUBE

TUBE ASSEMBLY - bleed upper (Used with Eaton pump)

1шт.

19

187599C1

HYD TUBE

TUBE ASSEMBLY - bleed upper (Used with Sundstrand pump)

1шт.

20

187936C2

BRACKET

ANGLE - tube rear support

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

23

187937C2

BRACKET

ANGLE - tube front support

1шт.

24

187935C1

STRIP

- pressure tube clamp

4шт.

25

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- bleed tube clamp

2шт.

26

187934C1

CLAMP

- tube

4шт.

27

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

4шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

33

183827C1

STRIP

- hydrostatic tube

2шт.
