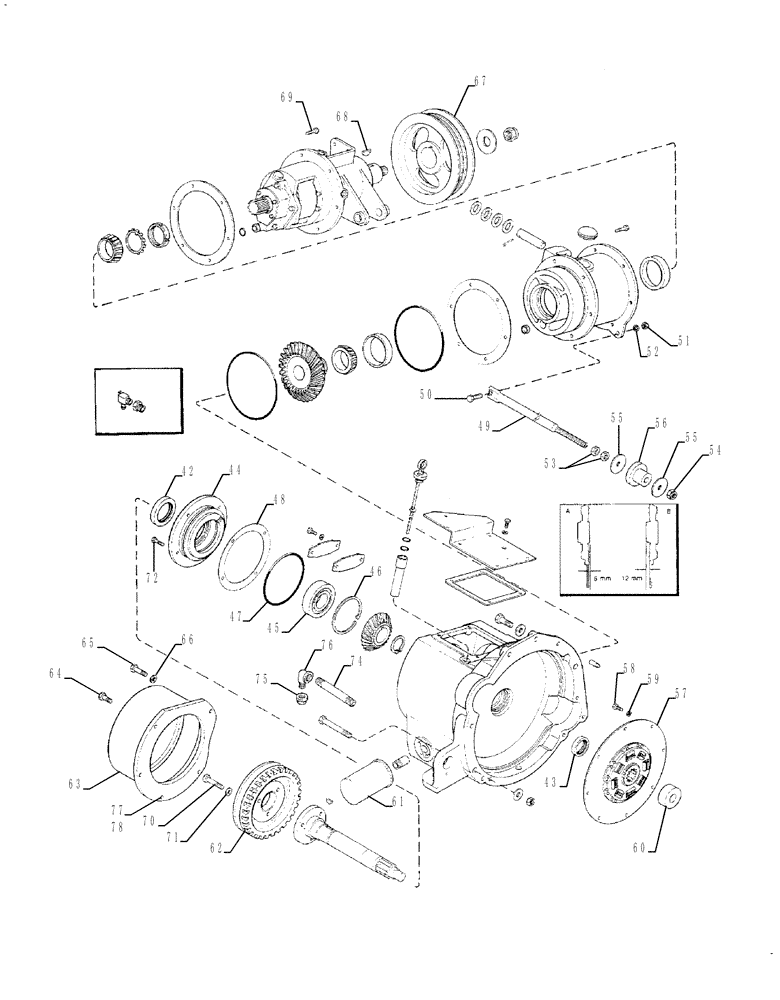

Запчасти Case IH 1680 (6-004) - POWER TAKEOFF DRIVE (CONTD) (03) - POWER TRAIN

42

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

- PTO shaft, continued

1шт.

43

173559C91

SEAL

- PTO drive shaft

1шт.

44

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB - drive shaft bearing housing

1шт.

45

ST297

BEARING, BALL

BEARING - drive shaft, 4.72 inch OD

1шт.

46

27822R1

SNAP RING,4.78", Int, #475

RING - internal retaining, 5.213 inch

1шт.

47

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

188196C1

SHIM KIT

- hub, Includes: Ref. 48

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.030 inch (Qty. of 2)

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.010 inch (Qty. of 2)

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.007 inch (Qty. of 2)

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.005 inch (Qty. of 2)

1шт.

49

1315648C1

ROD

- snubber, engine

1шт.

50

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

51

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

53

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

54

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex lock, 5/8 inch NF

1шт.

55

107813R1

WASHER

- engine snubber

2шт.

56

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber

1шт.

57

184454C1

CLUTCH PLATE,352.4mm OD

PLATE ASSEMBLY - PTO drive (See inset B)

1шт.

57

184429C1

CLUTCH DISC

PLATE ASSEMBLY - PTO drive (See inset A)

1шт.

The engine flywheel subs from J915096 to J917052 and the thickness decreased from 83 to 64.5 mm. When switching flywheels the flexplate also needs to change to 184429C2. TWD 9/12/97 TSG.

1шт.

184429C2R

REMAN-CLUTCH DISC

1680 (S/N JJC0045689 & AFTER) (1/86-12/92)

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

58

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

59

366862C1

LOCK WASHER,3/8"

3/8"

8шт.

60

1324896C1

BUSHING

- power takeoff flywheel

1шт.

61

70203C1

FILTER

- oil, PTO

1шт.

62

196481C1

PULLEY

- auxiliary pump drive

1шт.

For Hub see Figure 8-50, Ref #39

1шт.

63

1303141C1

HOUSING

- hydrostatic pump

1шт.

64

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

65

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

66

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

2шт.

67

191463C1

PULLEY

- separator drive

1шт.

68

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY - shaft, 5/16 x 2-1/8 inch Woodruff

1шт.

69

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

6шт.

70

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, Grade 8

3шт.

71

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

3шт.

72

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

74

221-200

PIPE

NIPPLE - straight, 1/2 PT x 7 inch

1шт.

75

119101

CAP,1/2" NPT

- pipe, 1/2 inch PT

1шт.

76

444171

ELBOW

- 1/2 inch 90 degree

1шт.

77

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

78

329-288

FLANGE NUT,Flg, 1/2"-13, G8

2шт.
