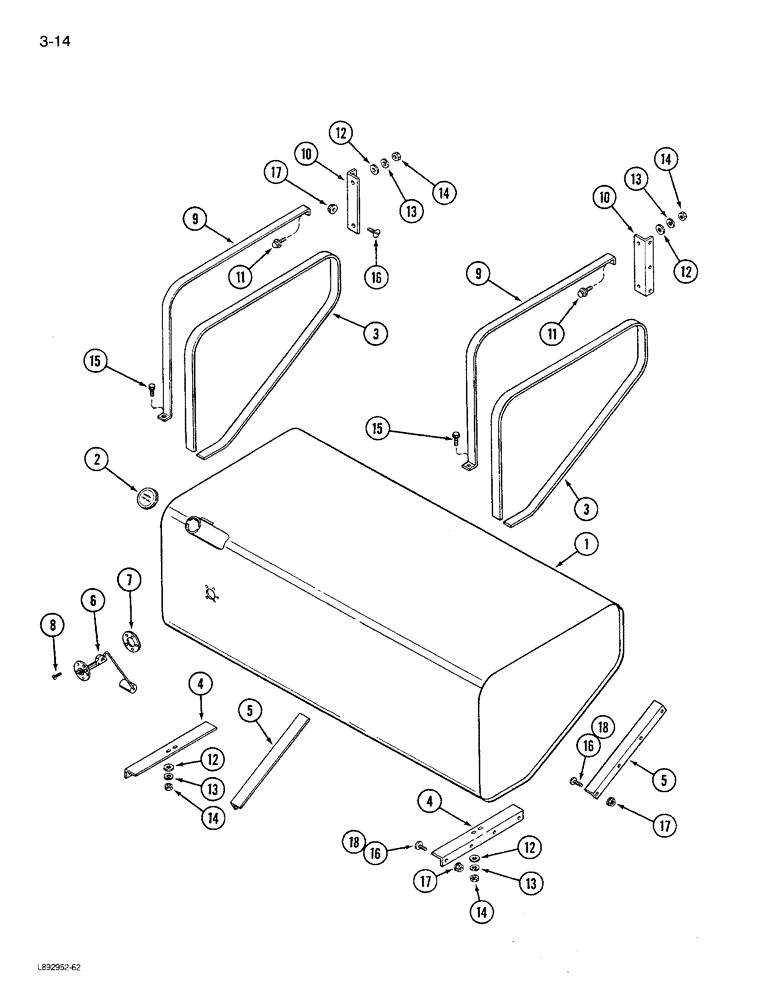

Запчасти Case IH 1680 (3-014) - FUEL TANK AND SUPPORTS (02) - FUEL SYSTEM

1

193551C95

FUEL TANK

TANK ASSEMBLY - fuel, Includes: Ref. 2

1шт.

2

104781C1

CAP

- fuel tank, non-vented

1шт.

3

NSS

NOT SOLD SEPARAT

STRIP - fuel tank support, lining, 72 inch (Order 990541R1 and, Serial Range: cut-length)

2шт.

990541R1

FIXING STRIP

STRIP - lining, 50 foot roll

1шт.

990541R1 is supplied in 10 foot sections, not 50 foot rolls.1 part = 1 foot

1шт.

4

192381C3

SUPPORT

ANGLE - fuel tank bottom support

2шт.

5

1302029C1

SUPPORT

ANGLE - fuel tank forward support

2шт.

6

198024C1

FUEL GAUGE

GAUGE ASSEMBLY - sending unit, fuel tank

1шт.

7

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

9

1302031C1

STRAP

SUPPORT - strap, fuel tank retainer

2шт.

10

1302030C1

ANGLE

ANGLE - fuel tank front

2шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

2шт.

12

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

19шт.

16

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 2-1/2 inch

1шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

27шт.

18

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.
