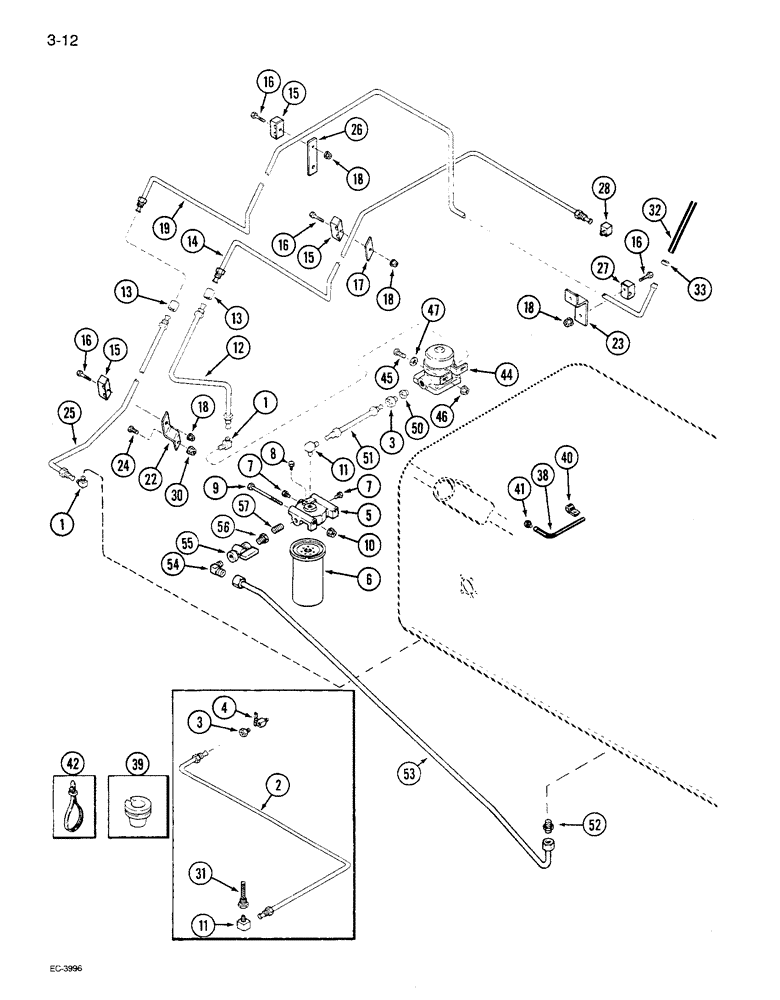

Запчасти Case IH 1680 (3-012) - FUEL LINE SYSTEM, P.I.N. JJC0115001 AND AFTER (02) - FUEL SYSTEM

1

144535R1

ELBOW

- fuel line lower tubes

2шт.

2

1315508C1

FUEL TUBE,0.375" OD, 853.4, 292.1 mm Length

TUBE ASSEMBLY - fuel line, filter base to tank (If equipped)

1шт.

3

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., , Inverted flared tube, 3/8" (If equipped) 5/8"-18 Inv Fl x 1/4" NPT

3шт.

4

1315522C1

FAUCET

VALVE ASSEMBLY - fuel shutoff (If equipped)

1шт.

5

612277C2

FILTER HEAD

BASE ASSEMBLY - fuel filter

1шт.

6

A184776

FUEL FILTER

FILTER ASSEMBLY - fuel

1шт.

7

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

2шт.

8

444614

PLUG,Hex Hd, 1/8"-27, Brass

1шт.

9

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

Screw, Hex, 5/16"-18 x 4", G2

2шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

2шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- 90 degree inverted flared tube, 3/8 inch (If equipped)

2шт.

12

1977001C1

HYD TUBE

TUBE ASSEMBLY - fuel line, lower supply

1шт.

13

442338

UNION

- inverted flared tube, 3/8 inch

2шт.

14

1330557C1

FUEL TUBE

TUBE ASSEMBLY - fuel line pressure, upper

1шт.

15

183825C1

CLAMP

- fuel line tube

3шт.

17

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

4шт.

19

1330558C3

FUEL TUBE

TUBE ASSEMBLY - fuel line return, upper

1шт.

22

1977005C1

SUPPORT

- tube, fuel lower

1шт.

23

196517C1

SUPPORT TUBE

SUPPORT - tube, lower fuel

2шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

25

183653C2

FUEL TUBE

TUBE ASSEMBLY - fuel line return, lower

1шт.

26

1330564C1

PLATE

SUPPORT - fuel lines

1шт.

27

183821C1

CLAMP

- lower tubes

1шт.

28

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- 90 degree inverted flared tube, 3/8 inch

1шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

31

179381C1

SIEVE

STRAINER ASSEMBLY - fuel (If equipped)

1шт.

32

NSS

NOT SOLD SEPARAT

HOSE - return, fuel (Order 364357C1 and, Serial Range: cut-length)

1шт.

33

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

1шт.

38

NSS

NOT SOLD SEPARAT

TUBE - vent, 3 175 mm (Order 74813C1 and, Serial Range: cut-length)

1шт.

39

195803C1

GROMMET

- tube, 3/8 inch OD

1шт.

40

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - tube

3шт.

41

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

1шт.

42

533959R1

CABLE TIE,.135" x 11"

STRAP - retaining

1шт.

44

196503C1

PUMP

ASSEMBLY - fuel, electric

1шт.

45

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

- slotted truss head lock, 5/16 NC x 1-1/4 inch

2шт.

46

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

47

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 1/8 inch

2шт.

50

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

ADAPTER - reducer, 3/8 to 1/4 inch

1шт.

51

1977000C1

HYD TUBE,0.375" OD

TUBE ASSEMBLY - filter to pump

1шт.

52

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - 3/8 x 3/4 inch

1шт.

53

1994883C1

FUEL TUBE

TUBE ASSEMBLY - fuel line lower suction

1шт.

54

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 1/2 inch 90 degree

1шт.

55

1345205C1

SHUT-OFF VALVE

VALVE ASSEMBLY - fuel shut off

1шт.

56

444032

BUSHING,1/2"-14 NPTF x 1/4"-18 Fem NPTF

- 1/2 x 1/4 inch

1шт.

57

443978

FITTING,1/4"-18 NPTF, Brass

NIPPLE - 1/4 inch

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
