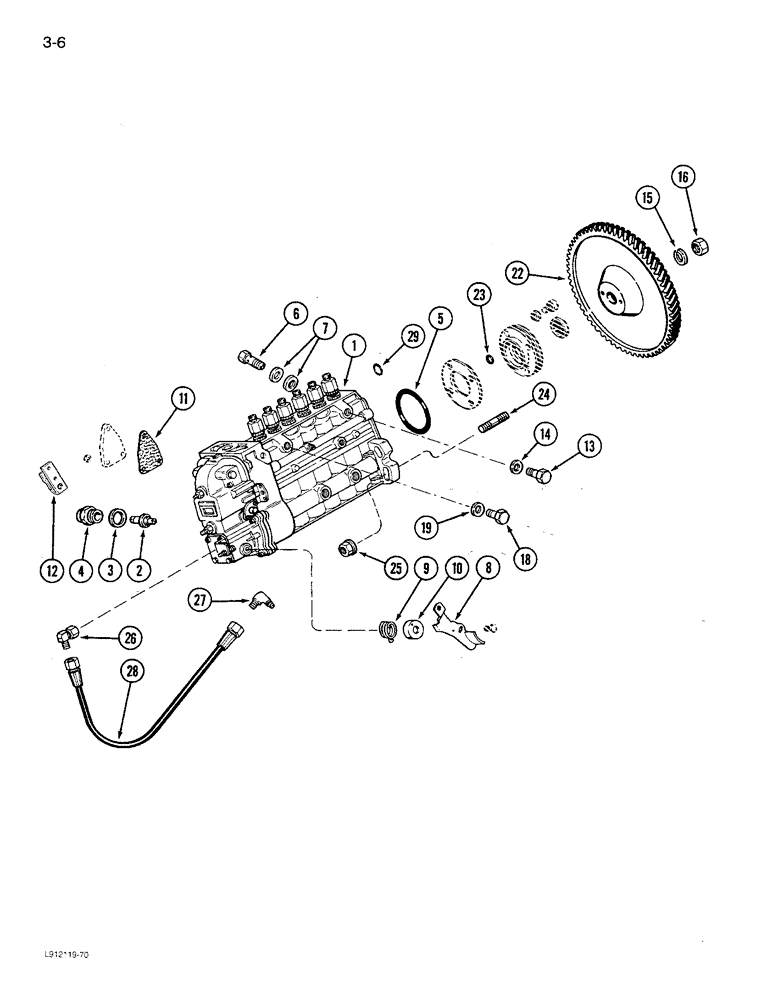

Запчасти Case IH 1680 (3-006) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
J918357
PUMP, FUEL INJECTION
PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new (Replaces J915688), Includes: Ref. 2 - 19
1шт.
1
JR918357
REMAN-INJECTION PUMP
Pump Assembly - injection, remanufactured (Replaces JR915688)
1шт.
1
JC918357
CORE-INJECTION PUMP
Return Part Number
1шт.
1
JC913338
PUMP
Return Part Number - use this part number to return pump core for credit (Replaces JC915688)
1шт.
2
A77720
PIN
PIN - timing
1шт.
3
933222R1
SEALING WASHER,M18 x 22 x 1.5
SEALING WASHER, , Plug M18 x 22 x 1.5
1шт.
6
J912886
VALVE
VALVE - overflow
1шт.
7
933697R1
SEALING RING,M10 x 13.5 x 1
WASHER - valve sealing
2шт.
8
J910979
LEVER
LEVER - pump shutoff
1шт.
Bolt that runs through Ref's 8, 10 & 9 was 30192R1, which subs to 628-6016
1шт.
9
J912890
SPRING
SPRING - lever shutoff
1шт.
Bolt that runs through Ref's 8, 10 & 9 was 30192R1, which subs to 628-6016
1шт.
10
691292C1
RETAINER
HOUSING - spring return
1шт.
Bolt that runs through Ref's 8, 10 & 9 was 30192R1, which subs to 628-6016
1шт.
11
A46322
GASKET
GASKET - pump mounting
1шт.
12
1808728C1
LEVER
LEVER - control
1шт.
13
J913320
SCREW
SCREW - vent
1шт.
14
691273C1
GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk
GASKET - vent screw
1шт.
15
J912897
LOCK WASHER
WASHER - lock
1шт.
16
J912896
LOCK NUT
NUT - hex lock
1шт.
18
B41211
SCREW
SCREW - vent
1шт.
19
757760R1
RING
RING - packing
1шт.
22
J912615
GEAR
GEAR - pump, fuel
1шт.
24
J915036
STUD
STUD - pump mounting, 55 mm (2-5/32 in)
4шт.
25
J902662
FLANGE NUT
NUT - hex flange, 10 mm
4шт.
26
J915172
FITTING
ELBOW - 90 degree, pump lubrication
1шт.
J915172 has an orifice built in.
1шт.
27
222-762
ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT
ELBOW, 90º, 7/16"-20, 45º Fl x 1/8" NPT
1шт.
28
J906747
HOSE,6.35mm ID x 508mm L
Lubrication
1шт.
Выбрано товаров: 33
