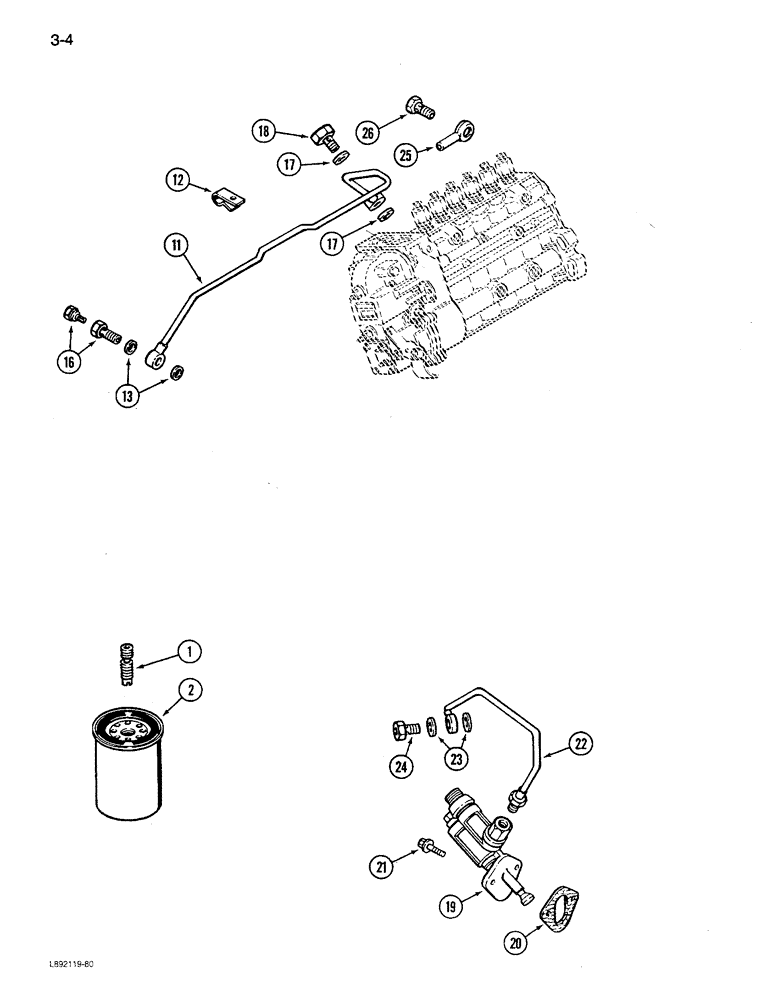

Запчасти Case IH 1680 (3-004) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE (02) - FUEL SYSTEM

1

J903845

BANJO BOLT

ADAPTER - filter

1шт.

2

J903640

FILTER, FUEL

FILTER - fuel

1шт.

11

J912925

FUEL TUBE,8 mm OD x 656.2 mm L

TUBE ASSEMBLY - supply, fuel

1шт.

12

J914711

CLIP

- tube, P style

1шт.

13

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm (Replaces J903037)

1шт.

16

J905860

BANJO BOLT

ASSEMBLY - connector

1шт.

17

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, 14 x 20 x 1 mm (Replaces J914896)

2шт.

18

J907541

BANJO BOLT

SCREW - connector, banjo

1шт.

19

J917998

PUMP

ASSEMBLY - transfer, fuel

1шт.

20

J914304

GASKET

- mounting, pump

1шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

22

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE ASSEMBLY - supply

1шт.

23

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm (Replaces J903037)

2шт.

24

J903035

BANJO BOLT

SCREW - banjo, M12 x 24

1шт.

25

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return (Replaces J911446)

1шт.

26

J912886

VALVE

- overflow, restrictor

1шт.
