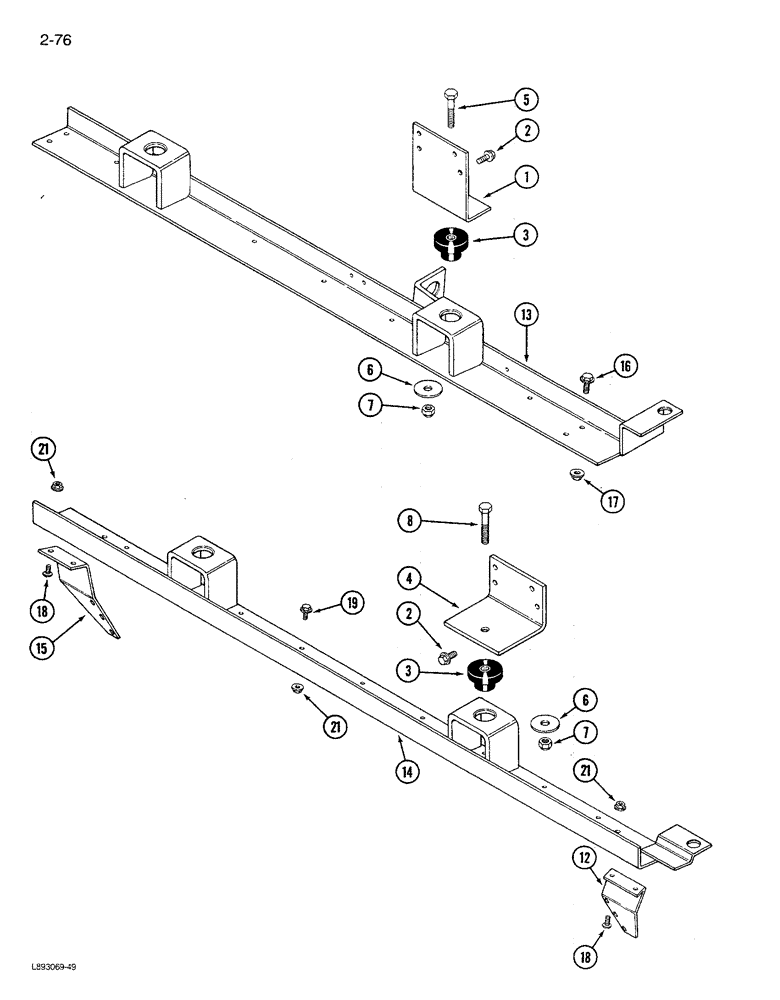

Запчасти Case IH 1680 (2-076) - ENGINE RAILS AND SUPPORTS (01) - ENGINE

1

1315644C1

SUPPORT

- engine, left front

1шт.

2

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

8шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine, front and rear

4шт.

4

1315645C1

SUPPORT

- engine, right front

1шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

6

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

12

1330099C1

SUPPORT

ASSEMBLY - engine, right

1шт.

13

1315646C2

RAIL

SUPPORT - engine rail, left

1шт.

14

1315647C1

RAIL

SUPPORT - engine rail, right

1шт.

15

1330098C1

SUPPORT

ASSEMBLY - engine, left

1шт.

16

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

8шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

8шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

19

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

14шт.

21

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

18шт.
