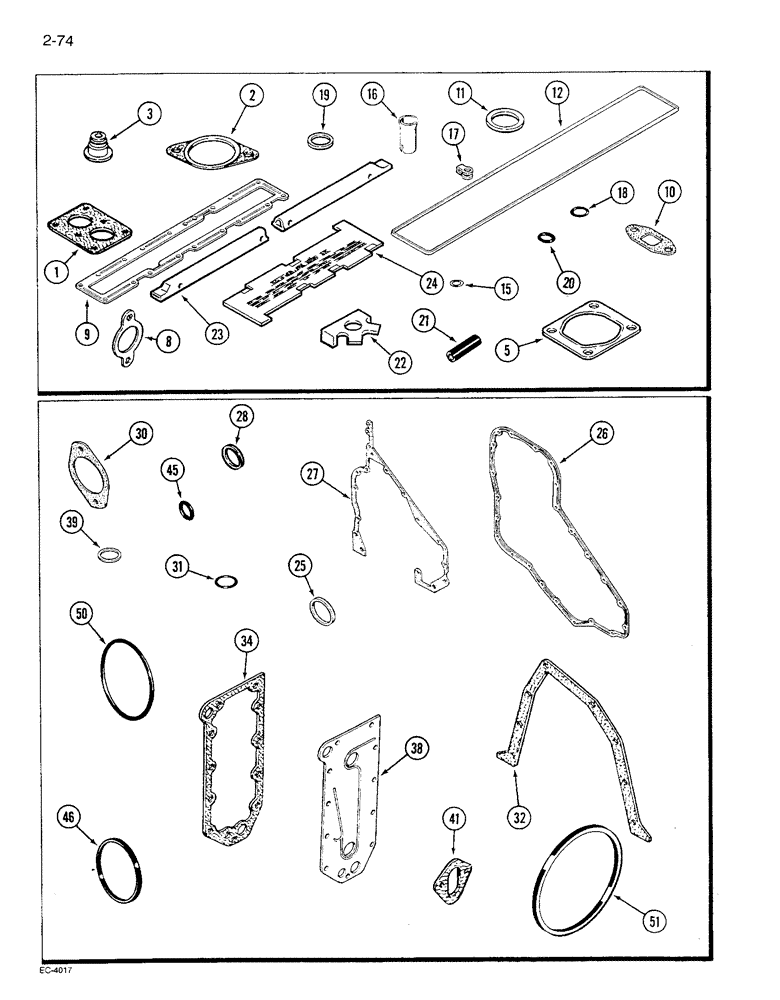

Запчасти Case IH 1680 (2-074) - ENGINE GASKET KITS CYLINDER BLOCK & VALVE GRIND KIT, 6TA-830 ENGINE, ENGINE S/N 44500595 & AFTER (01) - ENGINE

A77794

GASKET KIT

- valve grind (Replaces A77678), Includes: Ref. 1 - 24

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-???.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing, valve grind

1шт.

2

A77705

GASKET

- outlet tube, valve grind

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide, valve grind

12шт.

5

J911941

GASKET

- mounting, turbocharger, valve grind

1шт.

8

J911942

GASKET

- manifold, exhaust, valve grind

6шт.

9

J914311

MANIFOLD GASKET

- manifold, intake, valve grind

1шт.

10

J914388

GASKET

- turbocharger drain tube, valve grind

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil fill cap, valve grind

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, rocker, valve grind

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, valve grind

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector, valve grind

6шт.

17

J903380

SEAL

- connector, banjo, valve grind

7шт.

18

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- breather tube, valve grind

1шт.

19

J906659

SEAL

- injection nozzle, valve grind

6шт.

20

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Thermostat housing filter shutoff, valve grind -111, 70 Duro, .424" ID x .103" Thk

1шт.

21

J918610

HOSE,19.05 mm ID x 51.00 mm

Connector, Valve Grind 19.05 mm ID x 51.00 mm

1шт.

22

J914708

LOCKING PLATE

PLATE - locking, bolt, valve grind

1шт.

23

J919677

TUBE

- rocker arm oil, valve grind

1шт.

24

J823921

GAUGE

- cylinder head capscrew length, valve grind

1шт.

A77726

KIT

GASKET KIT - cylinder block, Includes: Ref. 25 - 51

1шт.

For a complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit and (1) oil pan kit from page 2-???; the front and rear crankshaft seal kit from page 2-???; and the required cylinder head gasket from page 2-???.

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front, cylinder block

1шт.

26

J917779

GASKET,0.98mm Thk

- cover, gear, cylinder block

1шт.

27

J914303

SEAL

GASKET - housing, front gear, cylinder block

1шт.

28

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - timing pin housing, cylinder block

1шт.

30

J919601

GASKET

- cover plate (Replaces J913288), cylinder block

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - mounting, water pump, cylinder block

1шт.

32

J914301

GASKET

- rear retainer, cylinder block

1шт.

34

J918174

GASKET,0.71mm Thk

- oil cooler core, cylinder block

1шт.

38

J918332

GASKET

- cover, oil cooler, cylinder block

1шт.

39

J901798

SEALING WASHER

WASHER - sealing, regulator plug, cylinder block

1шт.

41

J914304

GASKET

- mounting, lift pump, cylinder block

1шт.

45

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Plug, flywheel housing, cylinder block -212, 70 Duro, .859" ID x .139" Thk

1шт.

46

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, cylinder (Replaces J917737), block

6шт.

50

J913994

O-RING

- sealing, cylinder block

1шт.

51

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, cylinder

1шт.
