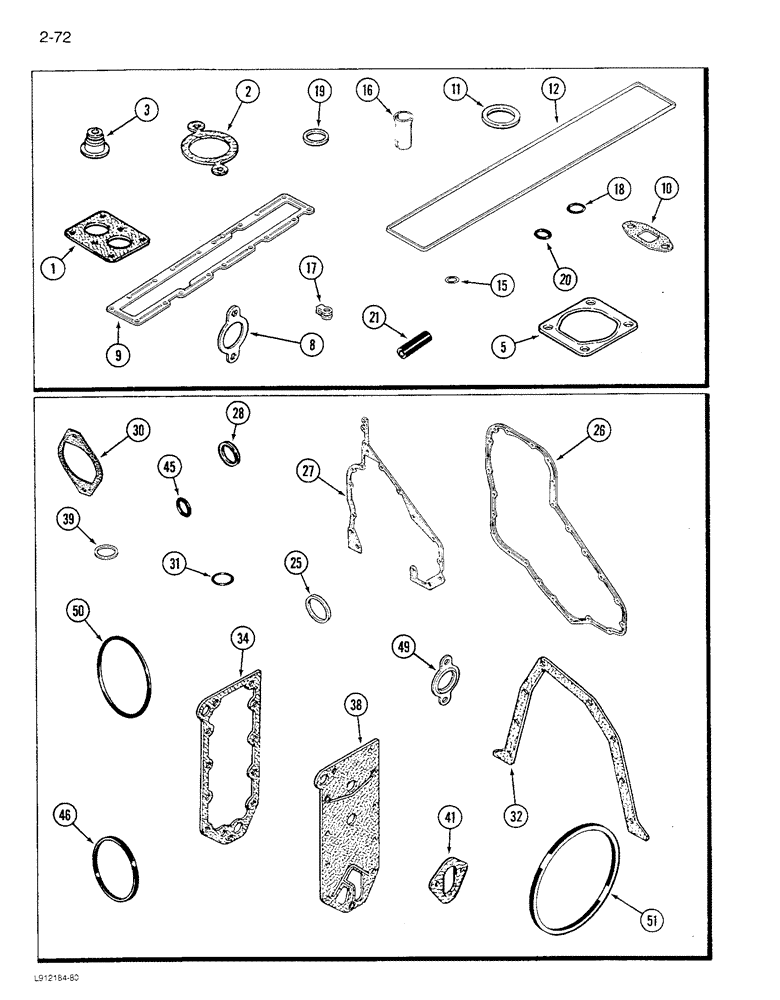

Запчасти Case IH 1680 (2-072) - ENGINE GASKET KITS, CYLINDER BLOCK & VALVE GRIND KIT, 6TA-830 ENGINE, PRIOR TO ENGINE S/N 44500595 (01) - ENGINE

A77678

GASKET KIT

- valve grind, Includes: Ref. 1 - 21

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-???.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing, valve grind

1шт.

2

J914309

GASKET

- outlet tube, valve grind

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide, grind

6шт.

5

J911941

GASKET

- mounting, turbocharger, valve grind

1шт.

8

J911942

GASKET

- manifold, exhaust, valve grind

6шт.

9

J914311

MANIFOLD GASKET

- manifold, intake, valve grind

1шт.

10

J914388

GASKET

- turbocharger drain tube, valve grind

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil fill cap, valve grind

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, rocker, valve grind

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, valve grind

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector, valve grind

6шт.

17

J903380

SEAL

- connector, banjo, valve grind

7шт.

18

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- breather tube, valve grind

1шт.

19

J906659

SEAL

- injection nozzle, valve grind

6шт.

20

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- thermostat housing filter shutoff, valve grind

1шт.

21

J915040

HOSE

- connector, valve grind

1шт.

A77718

GASKET KIT

- cylinder block, Includes: Ref. 25 - 51

1шт.

For complete engine overhaul, order 1 - valve grind kit, 1-cylinder block kit, 1 - oil pan kit Figure 2-???, front and rear crankshaft seal kit, Figure 2-??? and required cylinder head gasket Figure 2-???.

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front, cylinder block

1шт.

26

J917779

GASKET,0.98mm Thk

- cover, gear, cylinder block

1шт.

27

J914303

SEAL

GASKET - housing, front gear, cylinder block

1шт.

28

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - timing pin housing, cylinder block

1шт.

30

J913288

SEAL

GASKET - cover, accessory drive, cylinder block

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - mounting, water pump, cylinder block

1шт.

32

J914301

GASKET

- rear retainer, cylinder block

1шт.

34

J918174

GASKET,0.71mm Thk

- cover, oil cooler, cylinder block

1шт.

38

J914308

GASKET

- cover, oil cooler, cylinder block

1шт.

39

J901798

SEALING WASHER

WASHER - sealing, regulator plug, cylinder block

1шт.

41

J914304

GASKET

- mounting, lift pump, cylinder block

1шт.

45

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- plug, flywheel housing, cylinder block

1шт.

46

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve, cylinder, block

6шт.

49

J906719

MANIFOLD GASKET

- manifold, exhaust, cylinder block

1шт.

50

J913994

O-RING

- sealing, cylinder block

1шт.

51

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, cylinder

1шт.
