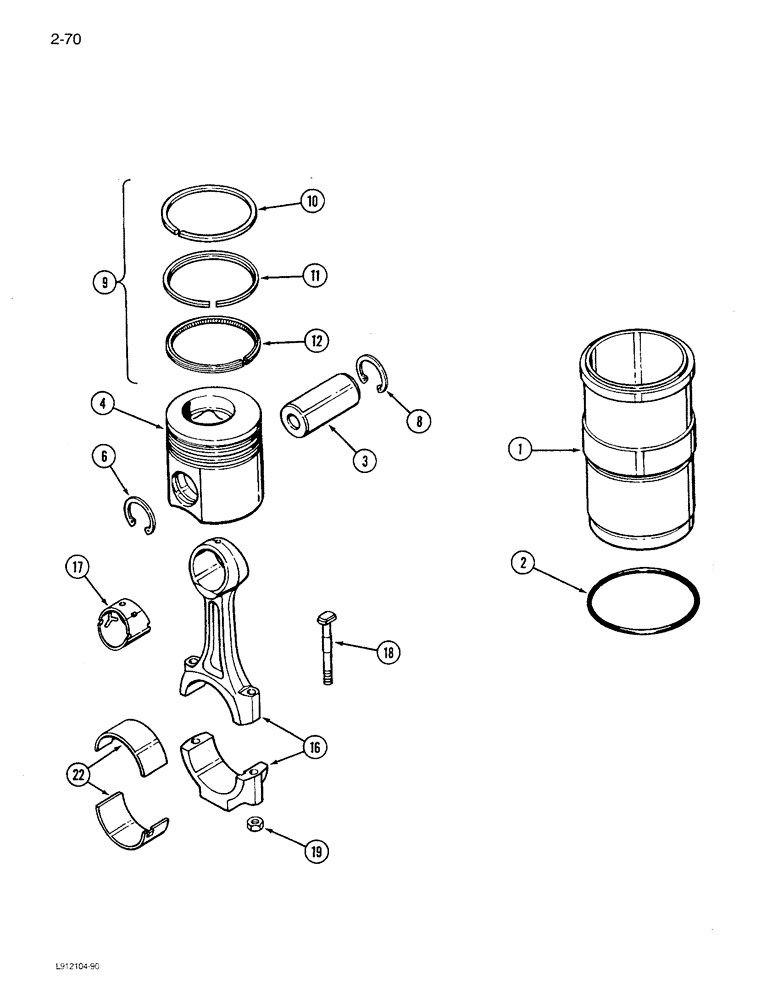

Запчасти Case IH 1680 (2-070) - PISTON AND SLEEVE, 6TA-830 ENGINE, ENGINE SERIAL NO. 44538389 & AFTER (01) - ENGINE

A77774

PACKAGE, REPAIR

PISTON AND SLEEVE KIT - engine, Includes: Ref. 1, 2, 4 - 12, Serial Range: -44706126

6шт.

A77799

PACKAGE, REPAIR

PISTON AND SLEEVE KIT - engine, Includes: Ref. 1, 2, 4 - 12, Start Serial: 44706126

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston, Serial Range: -44706126

1шт.

1

SLEEVE - piston, Start Serial: 44706126

1шт.

2

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve, cylinder, Serial Range: -44706126

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, cylinder, Start Serial: 44706126

1шт.

3

J901597

PIN

- piston

1шт.

J901597 not included in A77774 Kit

1шт.

A77773

PISTON ASSY.

PISTON KIT - engine (Standard), Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Stamped 9565)

1шт.

6

J901996

RING

- retaining

2шт.

9

A77744

PACKAGE

RING KIT - piston, Includes: Ref. 10 , 11 and 12

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil

1шт.

16

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - Connecting, remanufactured (North America Only)

6шт.

16

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number when returning connecting rod for credit)

6шт.

16

J901383

CONNECTING ROD

ROD ASSEMBLY - Connecting (New), Includes: Ref. 17 - 19

6шт.

84487529R

REMAN-CONNECTING ROD

1680 S/N JJC0045689 & AFTER, PISTON AND SLEEVE, 6TA-830 ENGINE, ENGINE SERIAL NO. 44538389 & AFTER (1/86 -12/92), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

17

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- rod, connecting

1шт.

18

J901380

BOLT

- rod, bearing cap, connecting

2шт.

19

J901381

SPECIAL NUT

- hex, rod bolt, connecting rod

2шт.

22

A77563

BEARING SET

BEARING KIT - rod (Upper and lower standard), connecting

6шт.

22

A77564

BEARING SET

BEARING KIT - rod (Upper and lower 0.25 mm oversize), connecting

6шт.

22

A77565

BEARING SET

BEARING KIT - rod (Upper and lower 0.50 mm oversize), connecting

6шт.

22

A77566

BEARING SET

BEARING KIT - rod (Upper and lower 0.75 mm oversize), connecting

6шт.

22

A77567

BEARING SET

BEARING KIT - rod (Upper and lower 1.0 mm oversize), connecting

6шт.
