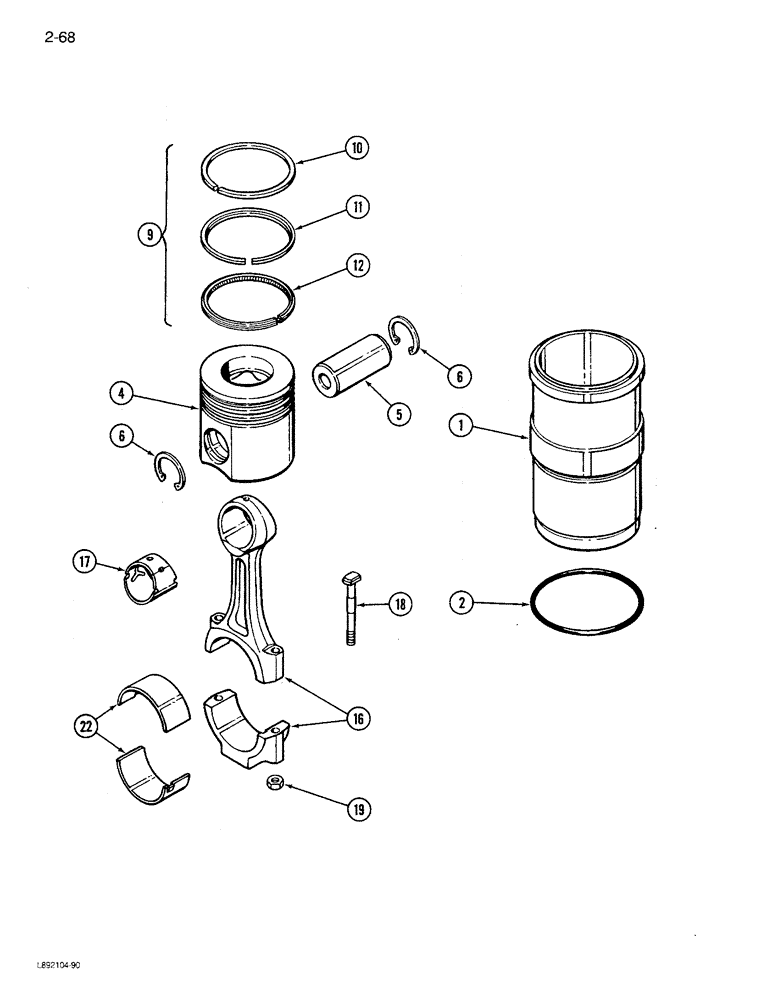

Запчасти Case IH 1680 (2-068) - PISTON AND SLEEVE, 6TA-830 ENGINE, PRIOR TO ENGINE SERIAL NO. 44538389 (01) - ENGINE

A77626

CYLINDER

PISTON AND SLEEVE KIT - engine, Includes: Ref. 1 - 12

1шт.

1

J907792

SLEEVE CYLINDER

piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sleeve

1шт.

A77585

PISTON ASSY.

KIT - engine (Standard), Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Stamped 8750)

1шт.

5

J901597

PIN

piston

1шт.

6

J901996

RING

retaining

2шт.

9

A77562

PISTON RING SET

KIT - piston, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil

1шт.

16

JR901383

REMAN-CONNECTING ROD

ASSEMBLY - Connecting Rod, remanufactured (North America Only)

6шт.

16

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number when returning connecting rod for credit)

6шт.

16

J901383

CONNECTING ROD

ASSEMBLY - Connecting Rod (New), Includes: Ref. 17 - 19

6шт.

84487529R

REMAN-CONNECTING ROD

1680 S/N JJC0045689 & AFTER, PISTON AND SLEEVE, 6TA-830 ENGINE, PRIOR TO ENGINE SERIAL NO. 44538389 (1/86 -12/92), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

17

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- rod, connecting

1шт.

18

J901380

BOLT

- rod, bearing cap, connecting

2шт.

19

J901381

SPECIAL NUT

- hex, rod bolt, connecting rod

2шт.

22

A77563

BEARING SET

BEARING KIT - rod (Upper and lower standard), connecting rod

6шт.

22

A77564

BEARING SET

BEARING KIT - rod (Upper and lower 0.25 mm oversize), connecting rod

6шт.

22

A77565

BEARING SET

BEARING KIT - rod (Upper and lower 0.50 mm oversize), connecting rod

6шт.

22

A77566

BEARING SET

BEARING KIT - rod (Upper and lower 0.75 mm oversize), connecting rod

6шт.

22

A77567

BEARING SET

BEARING KIT - rod (Upper and lower 1.0 mm oversize), connecting rod

6шт.

J914653

SHIM,.010" Thk

Cylinder sleeve, Connecting rod .010" Thk

1шт.

J914654

SHIM,.015" Thk

Cylinder sleeve, Connecting rod .015" Thk

1шт.

J914655

SHIM,.020" Thk

Cylinder sleeve, Connecting rod .020" Thk

1шт.
