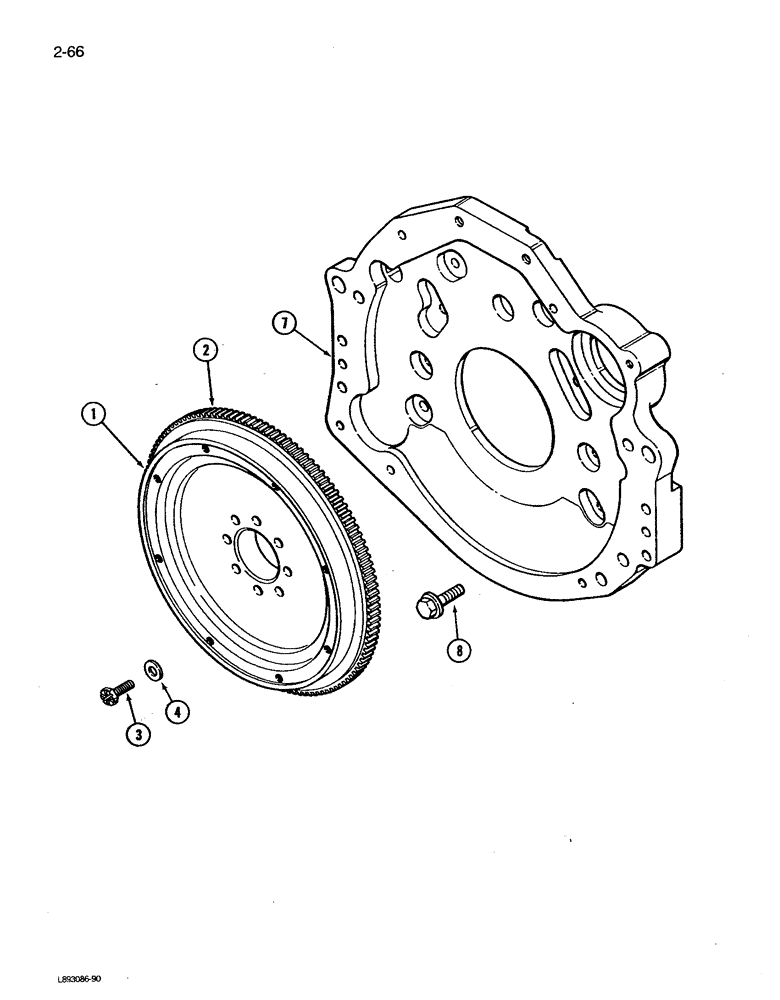

Запчасти Case IH 1680 (2-066) - FLYWHEEL AND BACKING PLATE, 6TA-830 ENGINE (01) - ENGINE

1

J917052

FLYWHEEL

ASSEMBLY - engine (Replaces J915096), Includes: Ref. 2

1шт.

2

J905427

GEAR

- ring, flywheel

1шт.

3

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

BOLT - hex, 12 mm - 1.25 x 50 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

7

J913593

PLATE

- backing

1шт.

8

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

10шт.

J910248

PLUG

- bearing hole

1шт.

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Bearing hole -212, 70 Duro, .859" ID x .139" Thk

1шт.
