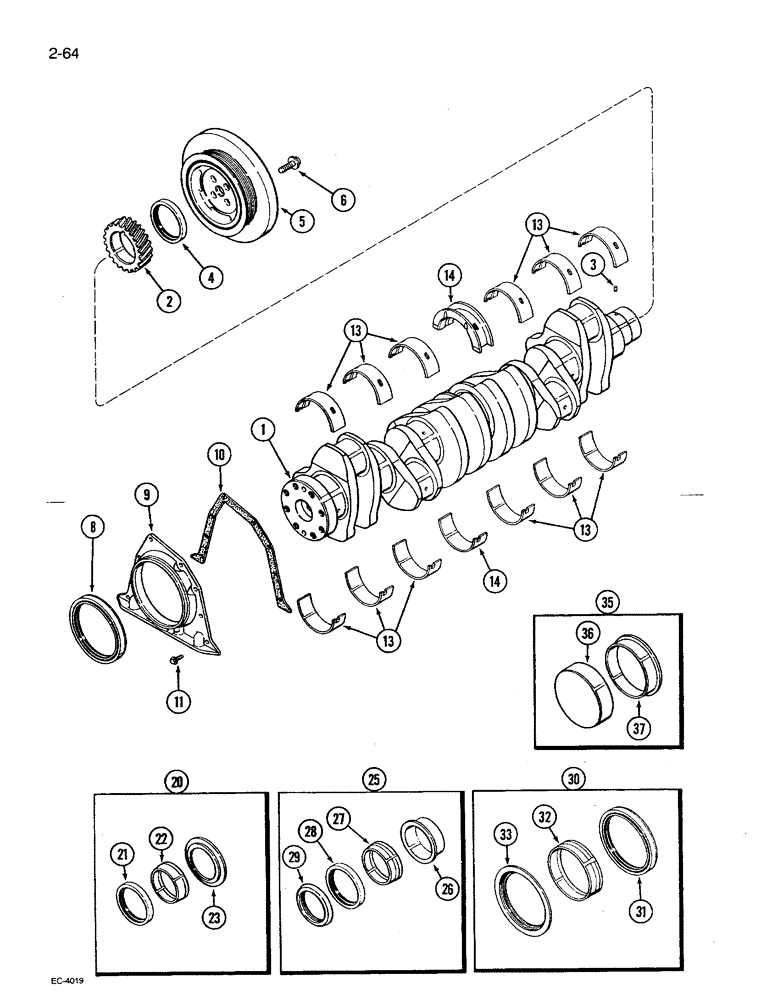

Запчасти Case IH 1680 (2-064) - CRANKSHAFT, 6TA-830 ENGINE (01) - ENGINE

1

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine, remanufactured (North America Only)

1шт.

1

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft assembly (Use this part number when returning crankshaft for credit)

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 and 3

1шт.

2

J918380

GEAR

- crankshaft (Replaces J907645)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order Ref. 20)

1шт.

5

J914455

DAMPER

PULLEY - damper, vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, 14 x 35 mm

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Order Ref. 30)

1шт.

9

J921042

REAR COVER

RETAINER - seal, rear cover (Replaces J909410)

1шт.

10

J914301

GASKET

- retainer, rear

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

A77711

BEARING LINER

BEARING KIT - main, upper and lower, standard

6шт.

13

A77712

BEARING LINER

BEARING KIT - main, upper and lower, 0.25 mm undersize

6шт.

13

A77713

BEARING LINER

BEARING KIT - main, upper and lower, 0.50 mm undersize

6шт.

13

A77714

BEARING LINER

BEARING KIT - main, upper and lower, 0.75 mm undersize

6шт.

13

A77715

BEARING LINER

BEARING KIT - main, upper and lower, 1.0 mm undersize

6шт.

14

A77706

BEARING LINER

BEARING KIT - main thrust, upper and lower, standard

1шт.

14

A77707

SET

BEARING KIT - main thrust, upper and lower, 0.25 mm undersize

1шт.

14

A77708

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.50 mm undersize

1шт.

14

A77709

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.75 mm undersize

1шт.

14

A77710

BEARING LINER

BEARING KIT - main thrust, upper and lower, 1.0 mm undersize

1шт.

20

A77790

SEAL KIT

- oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

A77791

GASKET KIT

WEAR SLEEVE KIT - crankshaft front (Replaces J908277), Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

29

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, oil seal

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
