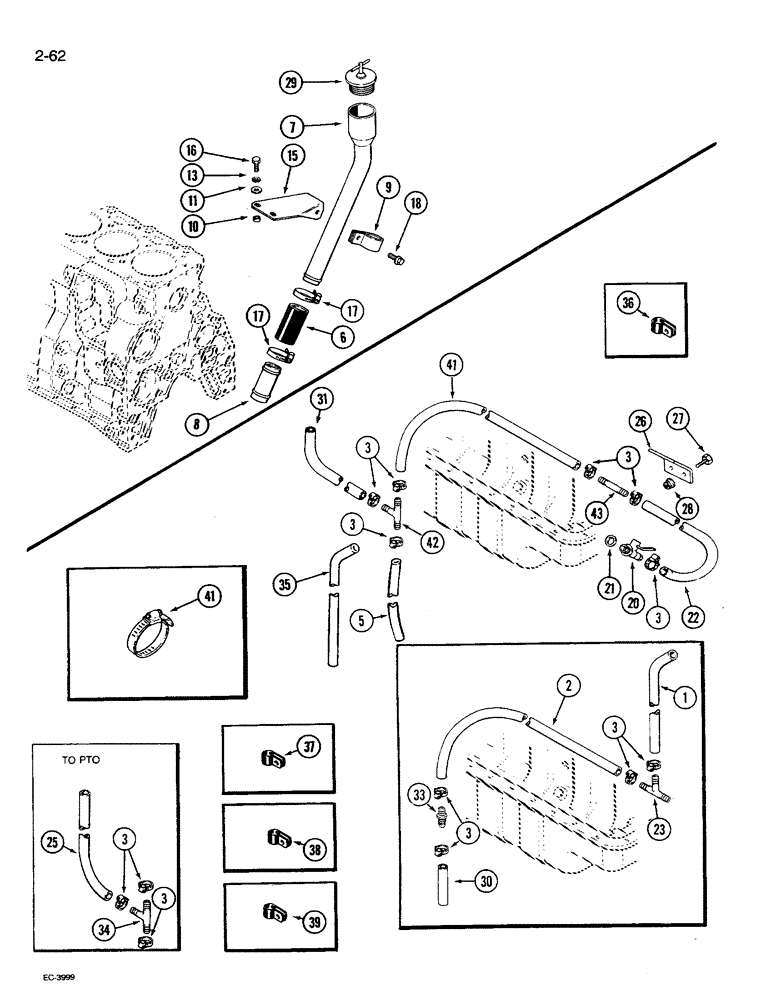

Запчасти Case IH 1680 (2-062) - ENGINE ATTACHING PARTS, 6TA-830 ENGINE (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather, 840 mm (Order 1977295CX and, Serial Range: cut-length)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - breather, intermediate, 840 mm (Order 1977295CX and, Serial Range: cut-length)

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

12шт.

5

NSS

NOT SOLD SEPARAT

HOSE - breather, lower, 1600 mm (Order 1977295CX and, Serial Range: cut-length)

1шт.

6

A77661

HOSE

- crankcase

1шт.

7

J914019

TUBE,34.92 mm OD x 59, 25 mm L

- oil fill, upper

1шт.

8

J914163

TUBE,35.23 mm OD x 90 mm L

- oil fill, lower

1шт.

9

J914022

CLAMP

- filler tube retaining

2шт.

10

D35217

BUSHING

SPACER - 13/32 x 1/2 x 3/8 inch

2шт.

11

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm

2шт.

13

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

15

J914020

BRACKET

- support

1шт.

16

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

2шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

1шт.

20

1330429C1

DRAIN VALVE

VALVE - oil drain

1шт.

21

J900216

PACKING RING

WASHER - sealing

1шт.

22

1329978C3

HOSE

- oil drain 430 mm (17 in)

1шт.

23

1977169C1

TEE

- oil drain (Quantity of 1 when ref 33 is used)

2шт.

25

NSS

NOT SOLD SEPARAT

HOSE - PTO drain, 350 mm (Order 1977295CX and, Serial Range: cut-length)

1шт.

26

1977212C1

BRACKET

- oil drain shield

1шт.

27

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

28

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

29

A77424

FILLER CAP

CAP - oil filler

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE - breather, lower, 100 mm (Order 1977295CX and, Serial Range: cut-length)

1шт.

31

REF

INSTRUCTION

HOSE - reservoir drain (See Figure 8-6 or 8-8)

1шт.

33

1301342C1

FITTING

CONNECTOR - hose, drain (If equipped)

1шт.

34

1977169C1

TEE

- oil drain (If equipped)

1шт.

35

NSS

NOT SOLD SEPARAT

HOSE - breather crankcase 3760 mm (Order 364360C1 and, Serial Range: cut-length)

1шт.

36

892033C1

CLAMP

- tube retaining

1шт.

37

28123R1

CLAMP

- 1-1/2 inch coated medium, closed

1шт.

38

28009R1

CLAMP

- 2.0 inch, closed

2шт.

39

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch

1шт.

41

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

1шт.

REF 41 - USE 1977295CX CUT TO LENGTH.

1шт.

281-14810

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

SCREW - hex 5/16 x 5/8 tap

1шт.

42

1977169C1

TEE

- oil drain

1шт.

43

1301342C1

FITTING

CONNECTOR - oil drain

1шт.
