Запчасти Case IH 1680 (2-052) - CYLINDER BLOCK, 6TA-830 ENGINE, SIX PISTON COOLING NOZZLES, (CONT) (01) - ENGINE

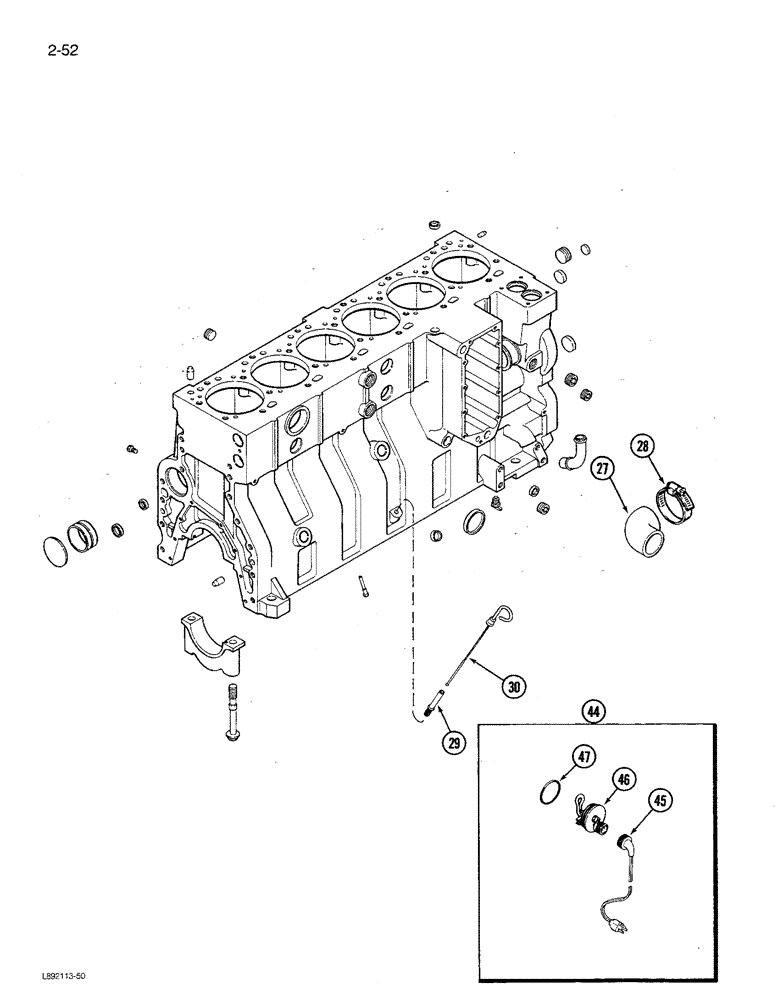

Схема запчастей Case IH 1680 - (2-052) - CYLINDER BLOCK, 6TA-830 ENGINE, SIX PISTON COOLING NOZZLES, (CONT) (01) - ENGINE
29
28
30
45
46
47
44
27

Артикул

Название

Примечание

Количество

27

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

- Elbow, Water, Continued 50.08 mm ID, 60.08 mm ID x 39.70 mm

1шт.

28

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

1шт.

29

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

30

J906757

DIPSTICK

- oil gauge

1шт.

44

A77595

KIT

HEATER KIT - coolant, Includes: Ref. 45 - 47, coolant kit

1шт.

45

J905113

CABLE

- heater, coolant kit

1шт.

P/N J905113 and 196466A1 are 6ft. long. For 1ft. long cord, order A44813.

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt 1000 watts, coolant heater kit

1шт.

47

J910517

O-RING

- heater element, coolant kit

1шт.

J900955

PLUG

expansion, coolant heater kit

1шт.

Выбрано товаров: 10
