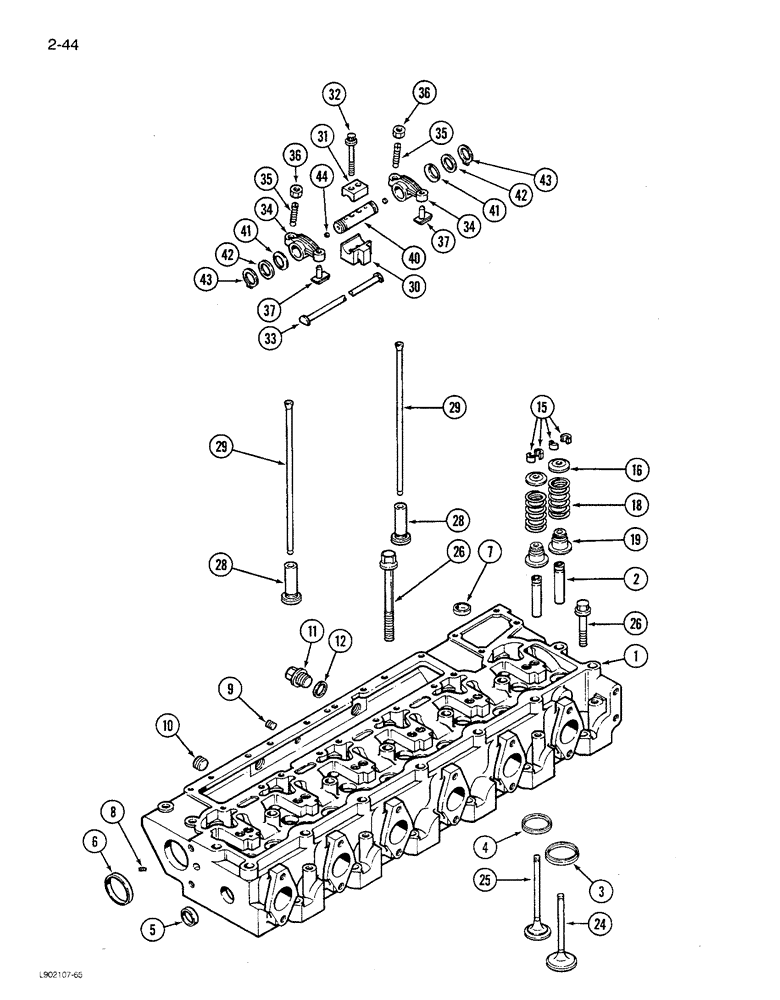

Запчасти Case IH 1680 (2-044) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-830 ENGINE (01) - ENGINE

1

JR913111

HEAD

ASSEMBLY - cylinder, remanufactured (North America Only)

1шт.

1

JC913111

HEAD (CYLINDER)

RETURN NUMBER - cylinder head (Use this part number when returning cylinder head core for credit)

1шт.

1

J917768

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new (Replaces J913111), Includes: Ref. 2 - 7

1шт.

1

J919919

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Replaces J911287), Includes: Ref. 2 - 7

1шт.

2

J901187

GUIDE

- stem, valve

12шт.

3

J908830

INSERT

- seat, intake valve

6шт.

3

J914839

INSERT

- seat, intake valve (0.254 mm oversize) (Service only)

6шт.

4

J904716

INSERT

- seat, exhaust valve

6шт.

4

J914836

INSERT

- seat, exhaust valve (0.254 mm oversize) (Service only)

6шт.

5

A77530

PLUG

- expansion, 1-3/16 inch OD

1шт.

6

A77782

PLUG

- expansion, 58 mm OD

2шт.

7

A77590

PLUG

- expansion, 28,7 mm

5шт.

8

A77534

PLUG

- hex, 1/16 - 27 inch PT

1шт.

9

A77428

PLUG

- hex socket pipe, 1/4-18 inch PT

1шт.

10

A77429

PLUG

- hex socket pipe, 1/2-18 inch PT

2шт.

11

J904386

PLUG

- hex flange, 22 mm

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal

2шт.

15

J901177

VALVE

KEEPER - valve

24шт.

16

J912976

RETAINER

- valve spring

12шт.

18

J906412

VALVE SPRING

SPRING, VALVE

12шт.

19

J915707

SEAL

- intake and exhaust valve stem and guide (Replaces J912550, J912549 and J901178)

12шт.

24

J915506

VALVE,ENGINE,INLET,S

VALVE - intake (Replaces J902253)

6шт.

25

J921444

STD EXHAUST VALVE

VALVE - exhaust

6шт.

26

J917728

BOLT

- hex flange, 14 x 160 mm

14шт.

Longer head bolts for 91 and newer engines (ESN 44487830 and higher). Pre-91 have a shorter bolts J907234 and J907233 TSG

1шт.

26

J917729

BOLT,Flng, M14 x 80mm

BOLT - hex flange, 14 x 80 mm

12шт.

Longer head bolts for 91 and newer engines (ESN 44487830 and higher). Pre-91 have a shorter bolts J907234 and J907233 TSG

1шт.

28

J907240

TAPPET

- valve, push rod

12шт.

29

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

30

J905870

SUPPORT

- shaft, rocker arm

6шт.

31

J901693

CLAMP

- retaining, shaft

6шт.

32

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW, Flg, 12 Pt Hd, M10 x 65, 12.9

12шт.

33

J919677

TUBE

- oil, rocker arm

1шт.

34

J901717

ROCKER

ARM ASSEMBLY - rocker, Includes: Ref. 35 - 37

12шт.

35

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

36

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

1шт.

37

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

40

J915415

SHAFT

- rocker

6шт.

41

J906100

SPRING CUP

WASHER - spring

12шт.

42

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, shaft end

12шт.

43

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.

44

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

12шт.
