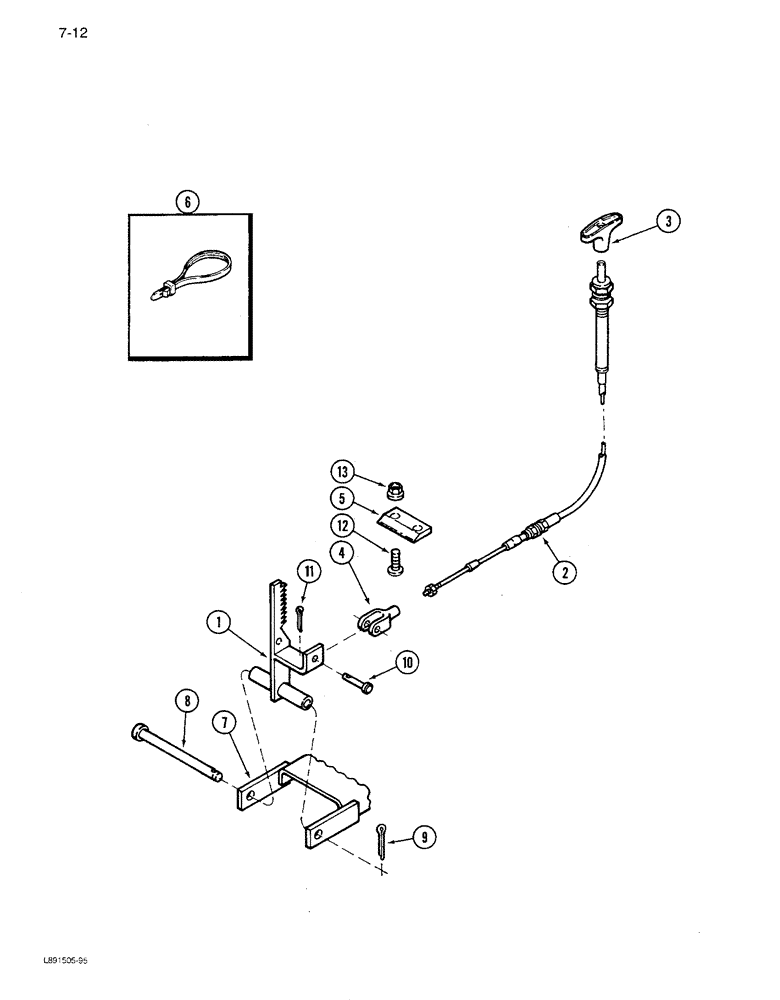

Запчасти Case IH 1680 (7-012) - PARKING BRAKE (5.1) - BRAKES

1

1277202C1

PLATE

SECTOR ASSEMBLY - parking brake

1шт.

2

166149C91

CABLE

ASSEMBLY - parking brake, 125 inch, Includes: Ref. 3

1шт.

3

170273C1

HANDLE

- parking brake cable

1шт.

4

117824

YOKE

- clevis, No.10 NF

1шт.

5

177802C1

BAR

- parking brake ratchet

1шт.

6

702093C1

CABLE TIE

STRAP - tie, parking brake cable

5шт.

7

REF

INSTRUCTION

SUPPORT - brake actuator (See Figure 7-6)

1шт.

8

PO15464

HEADED PIN,3/8" x 4"

PIN - head, 3/8 x 4 inch

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

20286R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/16 x 1-1/32 inch

1шт.

11

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

13

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.
