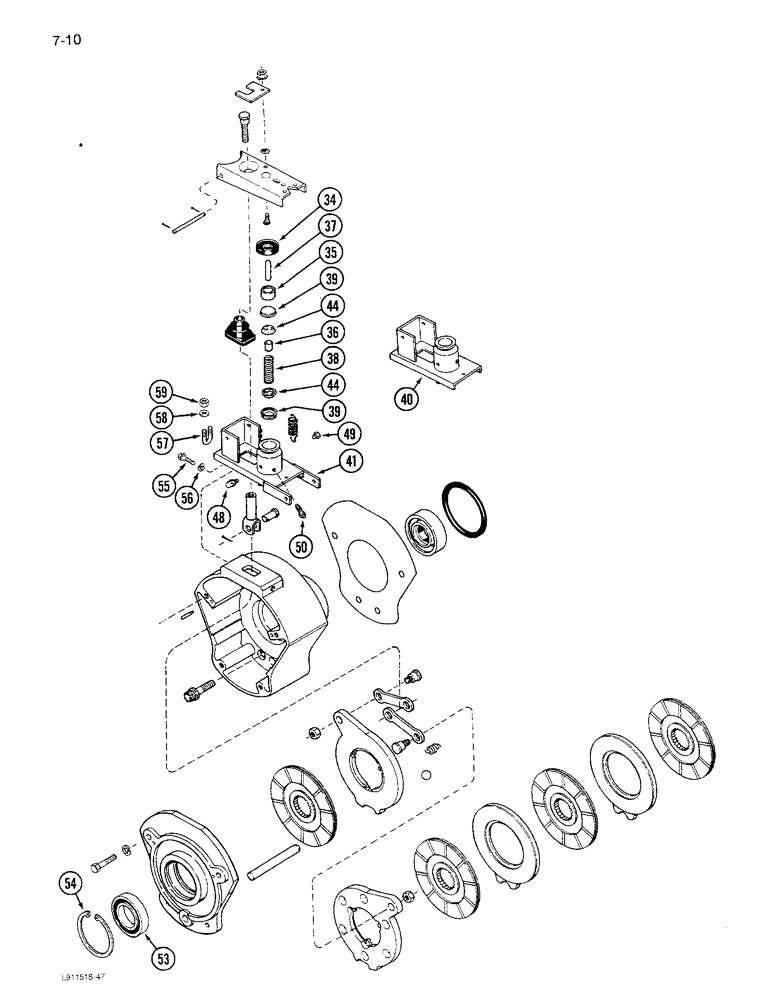

Запчасти Case IH 1680 (7-010) - MASTER BRAKES, P.I.N. JJC0048625 AND AFTER (CONTD) (5.1) - BRAKES

1329740C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, right

1шт.

1329739C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, left

1шт.

34

662620R1

COVER

BOOT - wheel cylinder

1шт.

35

662616R1

PISTON

- wheel cylinder

1шт.

36

1281779C1

LARGE PIN

PIN - brake piston spacer

1шт.

37

184325C2

PLUNGER

- wheel cylinder

1шт.

38

84940C1

SPRING

- wheel cylinder

1шт.

39

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

2шт.

40

NSS

NOT SOLD SEPARAT

SUPPORT - actuator, right (Order 1329740C2)

1шт.

41

NSS

NOT SOLD SEPARAT

SUPPORT - actuator, left (Order 1329739C2)

1шт.

44

85105C1

EXPANDER

CUP - wheel cylinder

2шт.

48

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

49

FOR444613

PLUG

- hex, 1/8 inch PT

1шт.

50

660901R1

VALVE

- bleeder

2шт.

1288942C92

KIT

SERVICE KIT - cylinder (Includes: Ref. 34, 35, 38, 39 and 44)

1шт.

53

574273R91

BEARING ASSY,2.1654" ID x 3.937" OD x 0.8268"

- housing cover

2шт.

54

184131C1

SNAP RING,#393, 4.234", Int

RING - bearing retaining

2шт.

55

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

56

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

57

1327797C1

CLAMP

U-BOLT - 1/4 NC x 1-1/4 inch

1шт.

58

95-51028

WASHER,0.28" ID x 0.5" OD x 0.06" Thk

- flat, 9/32 x 1/2 x 1/16 inch

2шт.

59

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.
