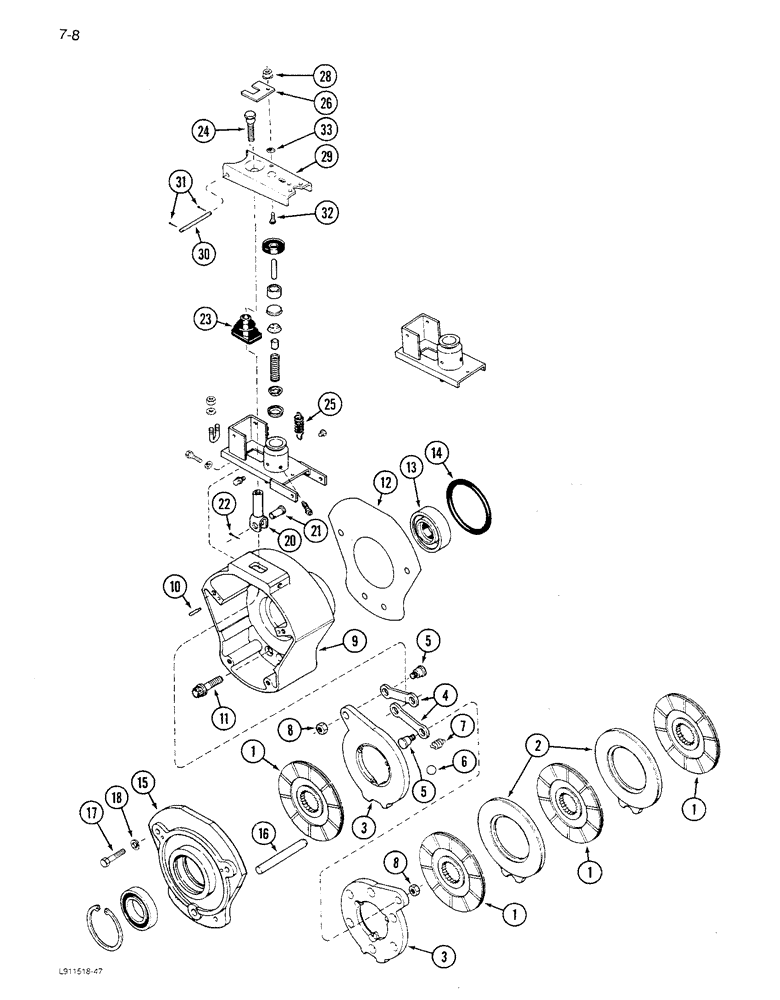

Запчасти Case IH 1680 (7-008) - MASTER BRAKES, P.I.N. JJC0048625 AND AFTER (5.1) - BRAKES

1

1349008C1

BRAKE DISC

DISC - middle

8шт.

2

1349009C1

BRAKE DISC

DISC - intermediate

4шт.

184202C93

DISC

ASSEMBLY - actuating, Includes: Ref. 3 - 8

2шт.

3

NSS

NOT SOLD SEPARAT

DISC - actuating

2шт.

4

1276923C2

LINK

- actuating

2шт.

5

1276924C1

STUD

- link

2шт.

6

17028R1

BALL,7/8" Dia

5шт.

7

359859R2

SPRING

- extension

3шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

9

1342950C1

HOUSING ASSY.

HOUSING ASSEMBLY - brake, Includes: Ref. 10

2шт.

10

20020R1

DOWEL,5/16" x 1"

PIN - dowel

2шт.

11

26145R1

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT, 12 Pt Flg, 5/8"-11 x 1 3/4"

8шт.

12

401898R1

SHIM

- brake housing, 0.003 inch

1шт.

12

401899R1

SHIM

- brake housing, 0.005 inch

1шт.

12

401900R1

SHIM

- brake housing, 0.007 inch

1шт.

13

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

- oil

2шт.

14

238-5427

O-RING,0.275" Thk x 4.725" ID, -427, Cl 5, 75 Duro

2шт.

15

1981196C2

COVER

ASSEMBLY - brake housing, Includes: Ref. 16

2шт.

16

28333R1

DOWEL,7/8" x 6"

PIN - dowel, 7/8" x 6"

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

20

1321923C1

CLEVIS

YOKE - brake pull

2шт.

21

40545V

CLEVIS PIN,5/8" x 1 3/8"

PIN - clevis, 5/8" x 1 3/8"

2шт.

22

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

23

184321C1

COVER

BOOT - brake housing

2шт.

24

1321973C1

ROD

- brake pull

2шт.

25

312824R1

SPRING

- brake lever return

2шт.

26

184282C2

BAR

- brake adjustment

2шт.

28

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

2шт.

29

1277201C3

LEVER

- brake

2шт.

30

1308992C1

PIN,9.53mm OD x 102mm L

- brake lever

2шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

32

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

BOLT, Short NK, 1/4"-20 x 3/4", G2

2шт.

33

136969C1

FASTENER

- brake lever

2шт.
