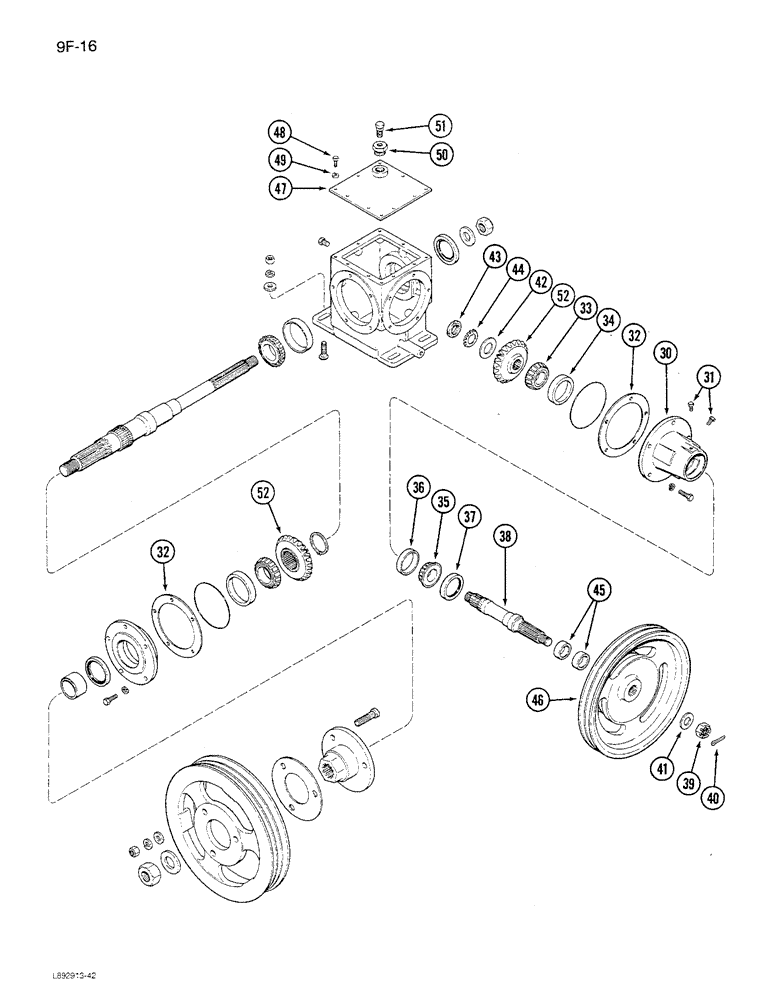

Запчасти Case IH 1680 (9F-16) - STRAW CHOPPER GEAR HOUSING (CONTD) (19) - STRAW SPREADER & CHOPPER

30

191245C2

HUB

- chopper drive, continued

1шт.

31

444614

PLUG,Hex Hd, 1/8"-27, Brass

- chopper drive hub

1шт.

195484C2

SHIM KIT

- hub, Includes: Ref. 32

2шт.

32

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

32

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

32

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

33

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

CONE - bearing, hub inner

1шт.

34

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP - bearing, hub inner

1шт.

35

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, hub outer

1шт.

36

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Hub outer

1шт.

37

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

- chopper drive shaft oil

1шт.

38

181195C1

SHAFT

- chopper drive

1шт.

39

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

1шт.

40

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

41

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

42

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-3/16 x 2-1/4 x 9/64 inch

1шт.

43

271253

NUT

- hex slotted lock, bearing

1шт.

44

181268C1

BEARING WASHER,1.193" ID x 1.95" OD

WASHER - drive shaft bearing lock

1шт.

45

181156C1

SPACER

- drive shaft

2шт.

46

1315264C1

PULLEY

- chopper drive, 14 inch OD

1шт.

47

181281C1

COVER

- gear housing

1шт.

48

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

49

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

50

115224

ADAPTER

- hex pipe, 3/4 to 3/8 inch

1шт.

51

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING - short grease with felt washer, 3/8 inch PT

1шт.

188814C1

BEVEL GEAR

GEAR KIT - matched set, Includes: Ref. 52

1шт.

52

NSS

NOT SOLD SEPARAT

GEAR - 24 teeth (Order 188814C1)

1шт.

52

NSS

NOT SOLD SEPARAT

GEAR - 23 teeth (Order 188814C1)

1шт.
