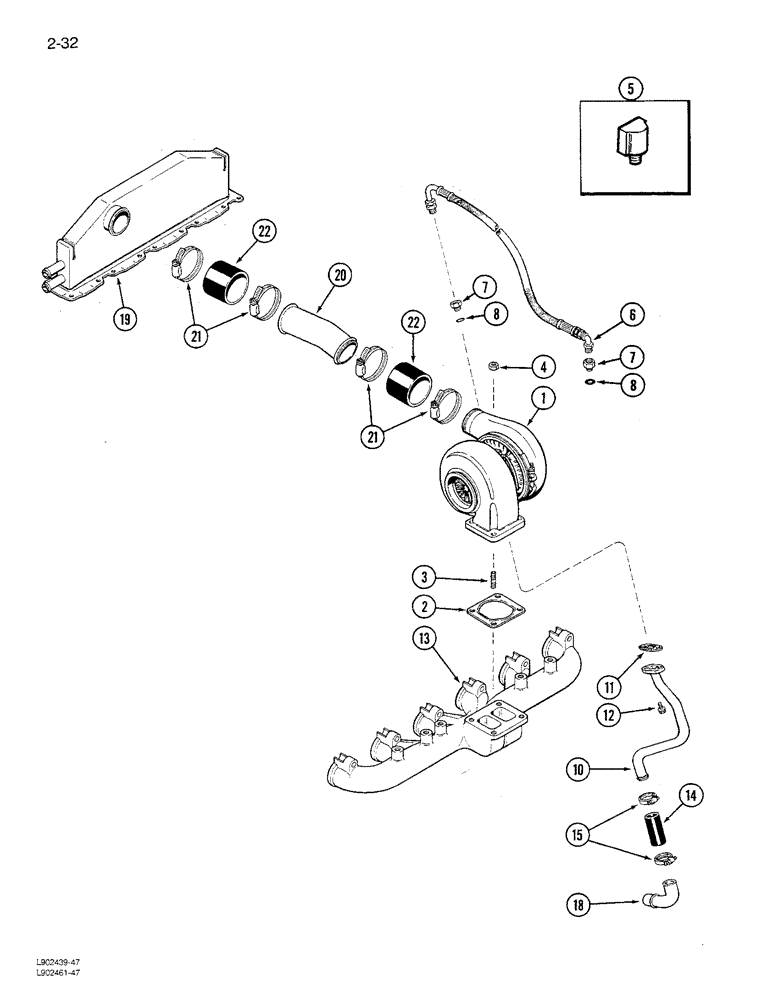

Запчасти Case IH 1680 (2-032) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-34)

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J905417

STUD

- turbocharger mounting

4шт.

4

J901961

NUT

- hex, 10 mm - 1.25

4шт.

5

A77588

ELBOW

- adapter, 90 degree (If equipped)

1шт.

6

J918562

HOSE

- oil supply, turbocharger (Replaces J909548)

1шт.

7

J919687

HYD CONNECTOR

CONNECTOR - supply hose, 5/8-18 inch x 12 mm thread

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

10

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- drain, oil

1шт.

11

J914388

GASKET

- drain tube

1шт.

12

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

2шт.

13

REF

INSTRUCTION

MANIFOLD - exhaust (See Figure 2-30)

1шт.

14

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.

18

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

19

REF

INSTRUCTION

AFTERCOOLER - intake (See Figure 2-30)

2шт.

20

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover

1шт.

21

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

4шт.

22

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube

2шт.
