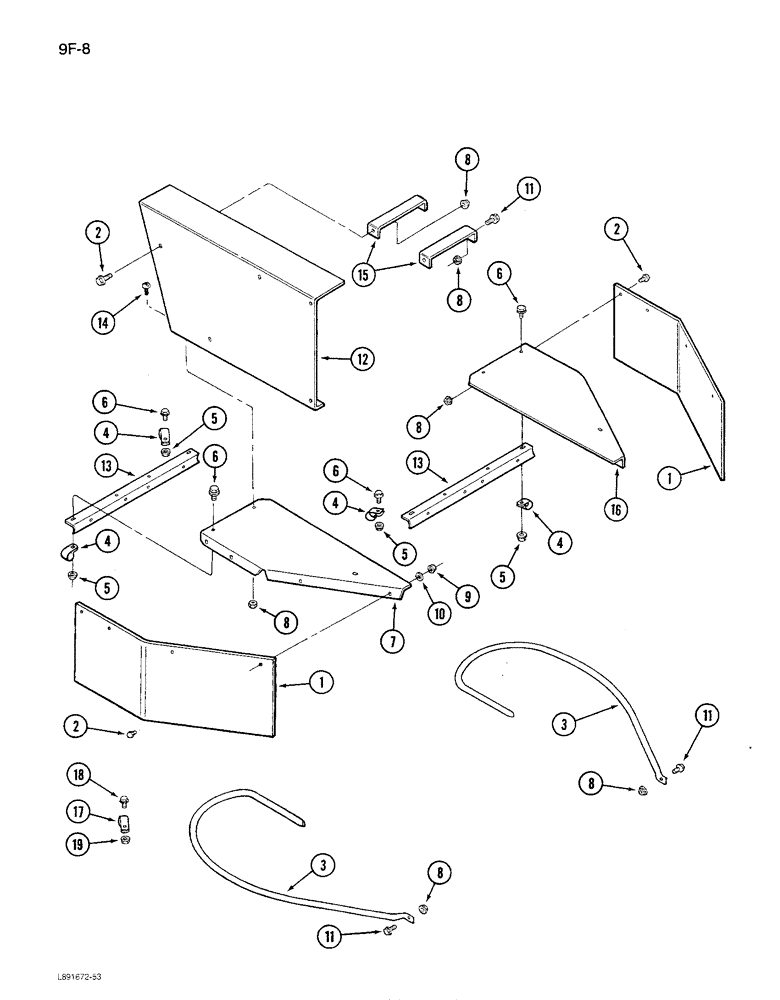

Запчасти Case IH 1680 (9F-08) - STRAW SPREADER SHIELDS AND SUPPORTS (19) - STRAW SPREADER & CHOPPER

1

1308916C2

SHIELD

SIDE - straw spreader

2шт.

this part is rubber not sheet metal.

1шт.

2

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange, 5/16 NC x 1/2 inch

10шт.

3

1308912C2

PIPE

- shield

2шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed

4шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

6

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex head flange, 3/8 NC x 3/4 inch

4шт.

7

1308915C1

SHIELD

SUPPORT - straw spreader, right (Shield)

1шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

9

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

10

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

8шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

12

1309121C3

SUPPORT

- drive shield

1шт.

13

1308913C1

SUPPORT

- straw spreader shield

2шт.

14

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

15

1309354C1

SUPPORT

CHANNEL - drive shield

2шт.

16

1308914C1

SHIELD

SUPPORT - straw spreader, left (Shield)

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- retaining, 11/16 inch diameter

1шт.

Used on grain combines only.

1шт.

18

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

Used on grain combines only.

1шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

Used on grain combines only.

1шт.
