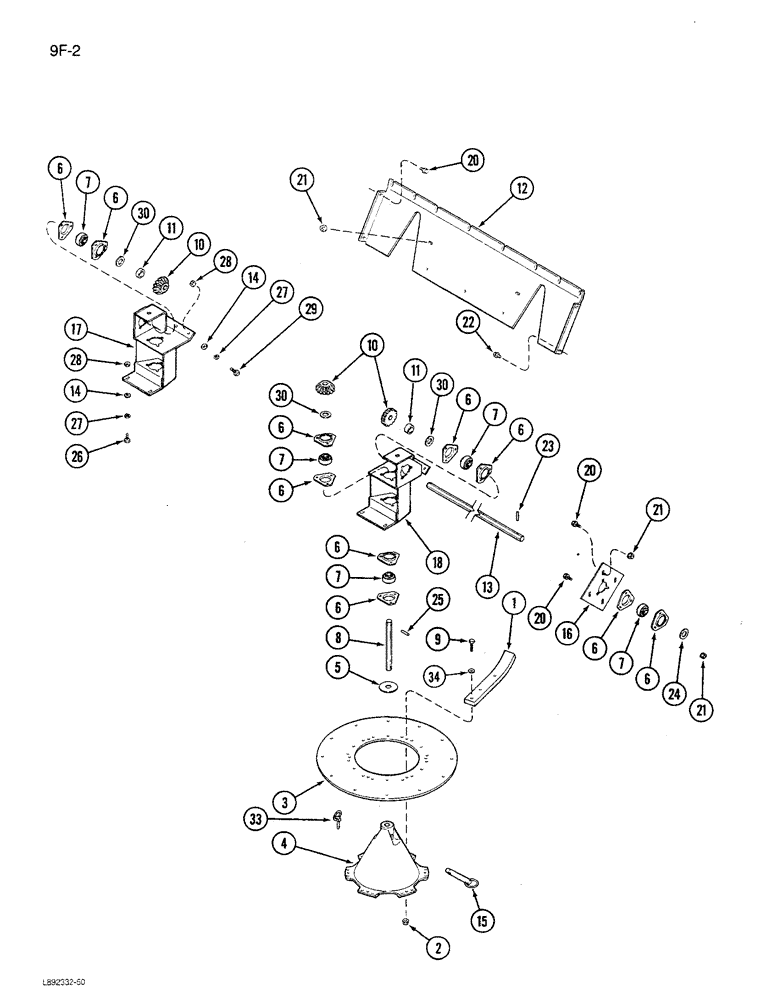

Запчасти Case IH 1680 (9F-02) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

194197C2

STRIP,50mm W x 363mm L

- rubber (Grain and Corn)

12шт.

1

1302790C1

STRIP

- rubber (Rice)

12шт.

2

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - retainer, strip

24шт.

3

192254C1

DISC

RETAINER - strip (Grain and Corn)

2шт.

3

1302791C1

RETAINER

- strip (Rice)

2шт.

4

188218C3

SUPPORT

ASSEMBLY - straw spreader cone

2шт.

5

183041C1

WASHER

WASHER - support cone (If equipped)

2шт.

6

571424R1

FLANGE

- bearing

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - straw spreader

7шт.

8

192240C1

SHAFT

BAR - straw spreader (Shaft)

2шт.

9

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch (Grain and Corn)

24шт.

9

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch (Rice)

12шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

(Rice) Hex, 5/16"-18 x 1 3/4", G5

12шт.

10

185410C1

GEAR-SET

GEAR SET - spreader drive (14 teeth) (Set of 2)

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- 1-1/4 x 5/8 inch tube (Cross bar)

2шт.

12

195144C4

SUPPORT

- dust shield

1шт.

13

192241C4

SHAFT

- cross, shaft

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

15

1994817C1

PIN

ASSEMBLY - lock, retainer (Replaces 1319303C1)

2шт.

16

186506C1

SUPPORT

BAR - bearing

1шт.

17

1345024C1

SUPPORT

- spreader drive, left

1шт.

18

1345025C1

SUPPORT

- speader drive, right

1шт.

20

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

28шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

29шт.

22

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

23

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

7шт.

25

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

30

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

33

A33497

LINCH PIN,4.76mm OD Pin

PIN - klik, locking

2шт.

34

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

12шт.

34

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

24шт.
