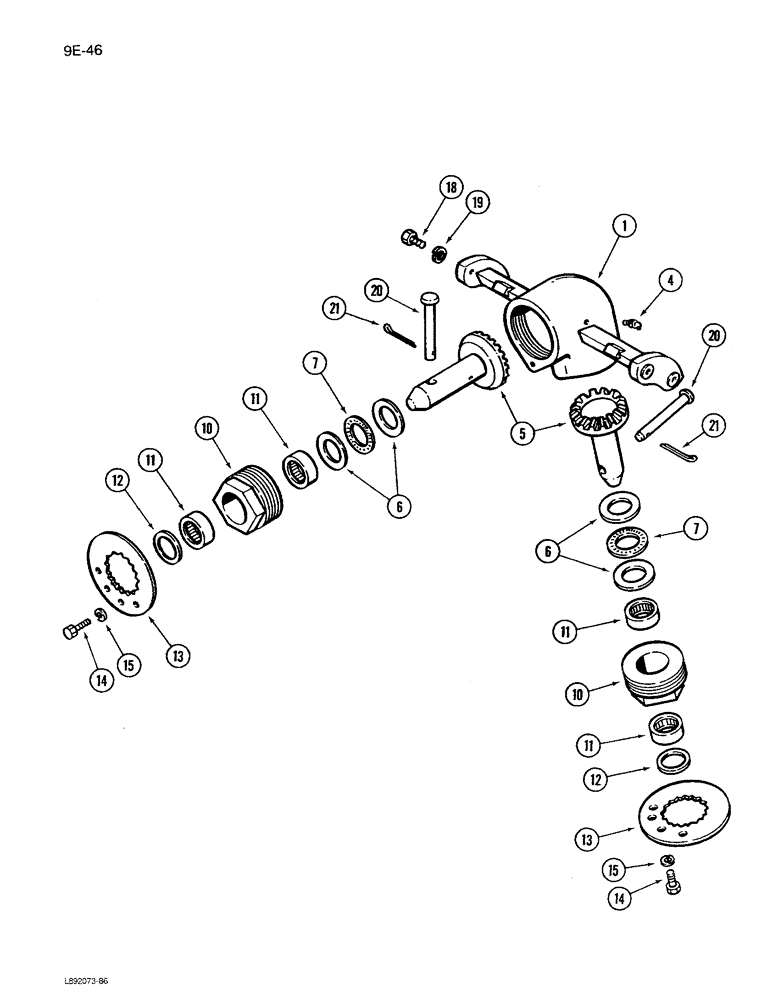

Запчасти Case IH 1680 (9E-46) - UNLOADER UPPER GEAR HOUSING ASSEMBLY, PRIOR TO P.I.N. JJC0115352 (17) - GRAIN TANK & UNLOADER

1324931C91

HOUSING

ASSEMBLY - unloader upper gear, Includes: Ref. 1 - 15

1шт.

1324931C91R

REMAN-GEARBOX

1680 S/N JJC0045689 & AFTER PRIOR TO P.I.N. JJC0115352 (1/86-12/92)

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - upper gear (Order 1324931C91)

1шт.

4

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree

1шт.

5

1324929C1

GEAR

- unloader, upper housing

2шт.

6

607147R1

WASHER

WASHER - bearing

4шт.

7

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- upper gear

2шт.

10

178135C91

BEARING HOUSING,1.6255" ID x 1.75"

HOUSING ASSEMBLY - gear bearing, Includes: Ref. 11 and 12

2шт.

11

168732C91

CASING, BEARING ROLL,34.925 mm ID x 41.275 mm OD x 12.7 mm

BEARING - bearing housing

2шт.

12

179014C91

OIL SEAL

- bearing housing oil

1шт.

13

178138C1

RETAINER

- gear housing

2шт.

14

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, Grade 8

4шт.

19

366862C1

LOCK WASHER,3/8"

3/8"

4шт.

20

1327766C2

PIN,12.7mm OD x 88.9mm L

- unloader gear

2шт.

21

132-1216

COTTER PIN,3/16" x 1", Stainless

Pin, Split (Cotter), 3/16" x 1", Stainless

2шт.
