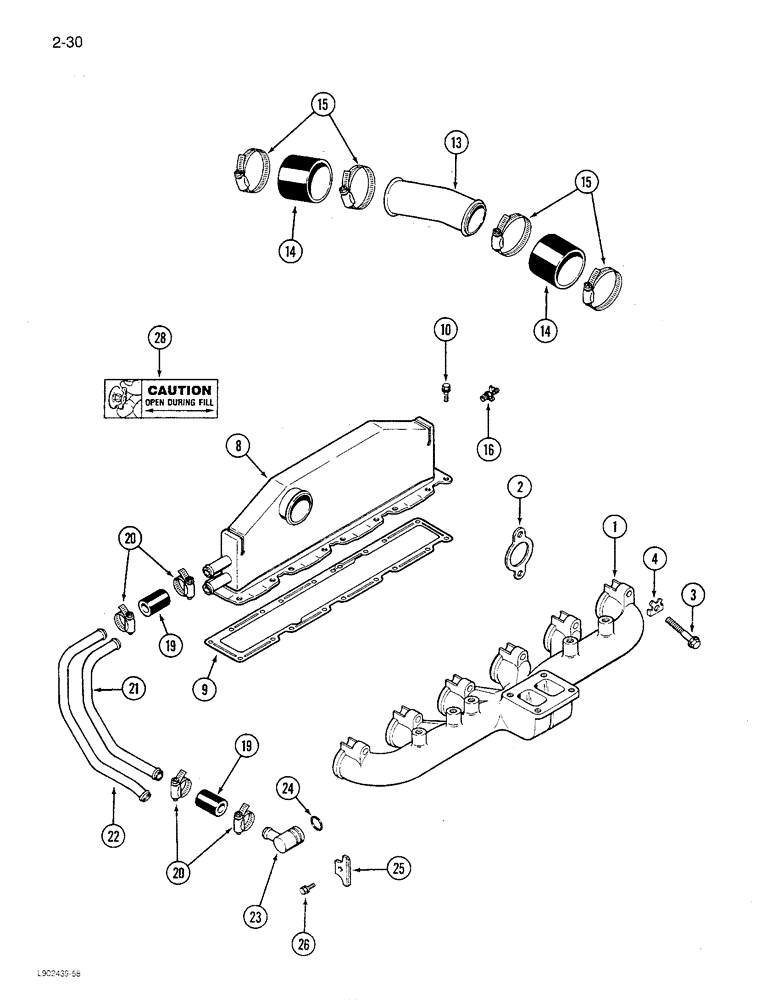

Запчасти Case IH 1680 (2-030) - MANIFOLDS, 6TA-830 ENGINE, EXHAUST MANIFOLD (01) - ENGINE

1

J906741

MANIFOLD

- exhaust

1шт.

2

J911942

GASKET

- manifold, exhaust

6шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 mm - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - lock, manifold bolt

12шт.

8

J914502

HEAT-EXCHANGER

AFTERCOOLER - intake manifold

1шт.

9

J914311

MANIFOLD GASKET

- mounting, intake aftercooler manifold

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake aftercooler manifold Hex Flg Hd, M8 x 1.25 x 25

18шт.

13

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover, intake aftercooler manifold

1шт.

14

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube, intake aftercooler manifold

2шт.

15

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose retaining, intake aftercooler manifold

4шт.

16

J909394

COCK, DRAIN

VALVE - drain, intake aftercooler manifold

1шт.

19

J918611

HOSE,18.50 mm ID x 63.00 mm

. Supply Tube, Aftercooler, Intake Manifold 18.50 mm ID x 63.00 mm

4шт.

20

J918163

CLIP

CLAMP - hose retaining, intake aftercooler manifold

8шт.

21

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake aftercooler manifold

1шт.

22

J908402

TUBE,19.05 mm OD

- water outlet, intake aftercooler manifold

1шт.

23

J917394

ELBOW

CONNECTOR - water inlet, intake aftercooler manifold

2шт.

24

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Intake aftercooler manifold -120, 70 Duro, .987" ID x .103" Thk

2шт.

25

J906439

PLATE

- mounting, intake aftercooler manifold

1шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm, Intake aftercooler manifold

1шт.

28

J910778

DECAL

- open during fill, intake aftercooler manifold

1шт.
