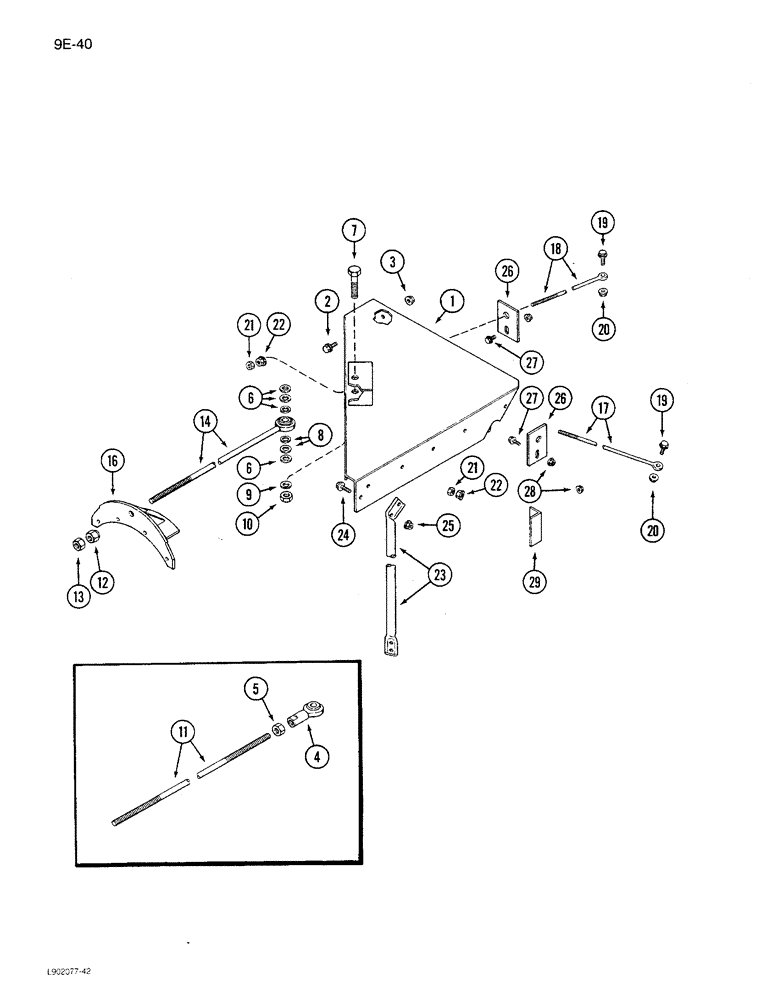

Запчасти Case IH 1680 (9E-40) - UNLOADER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

1327529C2

BRACKET

SUPPORT - rod anchor

1шт.

2

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

8шт.

2

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

4

1327557C1

FITTING

END - anchor rod (If equipped)

1шт.

5

425-1110

NUT,5/8"-18, G5

- hex, 5/8 inch NF (If equipped)

1шт.

6

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

6шт.

7

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

8

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

1327558C1

ROD

- unloader anchor support (If equipped)

1шт.

12

554480R1

WHEEL NUT

- hex special, 5/8 inch NF

1шт.

13

425-1110

NUT,5/8"-18, G5

1шт.

14

1979616C2

ROD

- unloader anchor support

1шт.

16

1317516C1

SUPPORT TUBE

SUPPORT - anchor support rod

1шт.

17

193625C1

ROD

- unloader front lower

2шт.

18

193626C1

ROD

- unloader front lower, Start Serial: JJC0047825

1шт.

18

1979494C1

ROD

- unloader front lower, Serial Range: -JJC0047825

1шт.

19

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

3шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

22

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

3шт.

23

1327539C2

ROD

- unloader rear brace

1шт.

(Prior to JJC0047825)

1шт.

23

1338378C1

ROD

- unloader rear brace

1шт.

(Pin JJC0047825 & after)

1шт.

24

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

4шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

4шт.

26

186691C1

PLATE

BAR - support rod

3шт.

27

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

4шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

29

186690C1

BRACKET

ANGLE - corner

1шт.
