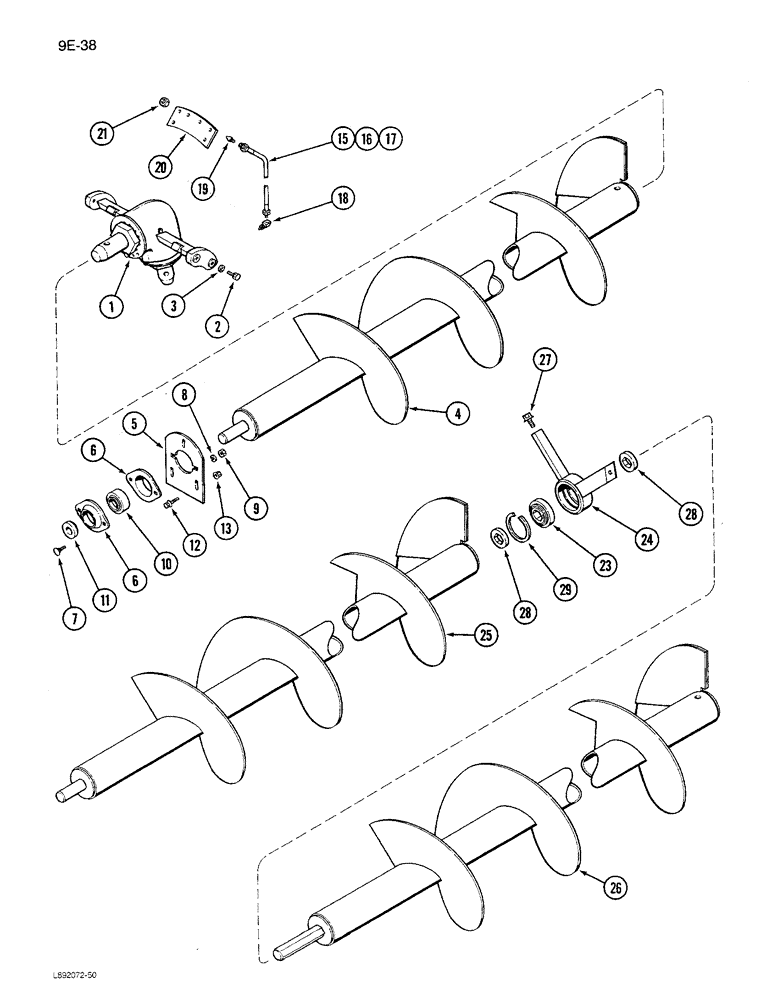

Запчасти Case IH 1680 (9E-38) - UNLOADER UPPER AUGER (17) - GRAIN TANK & UNLOADER

1

REF

INSTRUCTION

HOUSING ASSEMBLY - unloader upper gear (See Figure 9E-46 or 9E-48)

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, Grade 8

4шт.

3

366862C1

LOCK WASHER,3/8"

3/8"

4шт.

4

1317935C1

AUGER

- unloader, one piece (172 inch)

1шт.

Prior to P.I.N. JJC0115352

1шт.

4

1347499C1

AUGER

- unloader, one piece (172 inch)

1шт.

P.I.N. JJC0115352 and after

1шт.

5

182838C1

SUPPORT

- outer bearing

1шт.

6

50591

FLANGE,52mm

- bearing

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING - unloader outer

1шт.

11

564853R11

COLLAR

- outer bearing

1шт.

15

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lubrication 0.14" ID x 22.00"

2шт.

16

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

17

937782R92

HOSE,3.02mm ID x 787mm L

Lubrication 3.56 mm ID x 787.00 mm

1шт.

18

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - adapter lubrication

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

20

1347449C1

SUPPORT

- lubrication hose

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

- hose adapter

4шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - unloader split auger only

1шт.

24

1317859C1

SUPPORT

BEARING - unloader split auger only

1шт.

25

1317680C1

AUGER

- unloader, rear split (172 inch)

1шт.

25

1321147C1

AUGER

- unloader, rear split (208 inch)

1шт.

Possibly look at NHE SB 030 96.

1шт.

26

1317891C1

AUGER

- unloader, front split (172 inch) or (208 inch)

1шт.

Prior to P.I.N. JJC0115352

1шт.

26

1989388C1

AUGER

- unloader, front split, splined (172 inch) or (208 inch)

1шт.

Possibly look at NHE SB 030 96.

1шт.

P.I.N. JJC0115352 and after

1шт.

27

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

28

1277949C1

SPACER

- unloader split auger only

4шт.

29

360936R1

RING

- snap, auger bearing

1шт.
