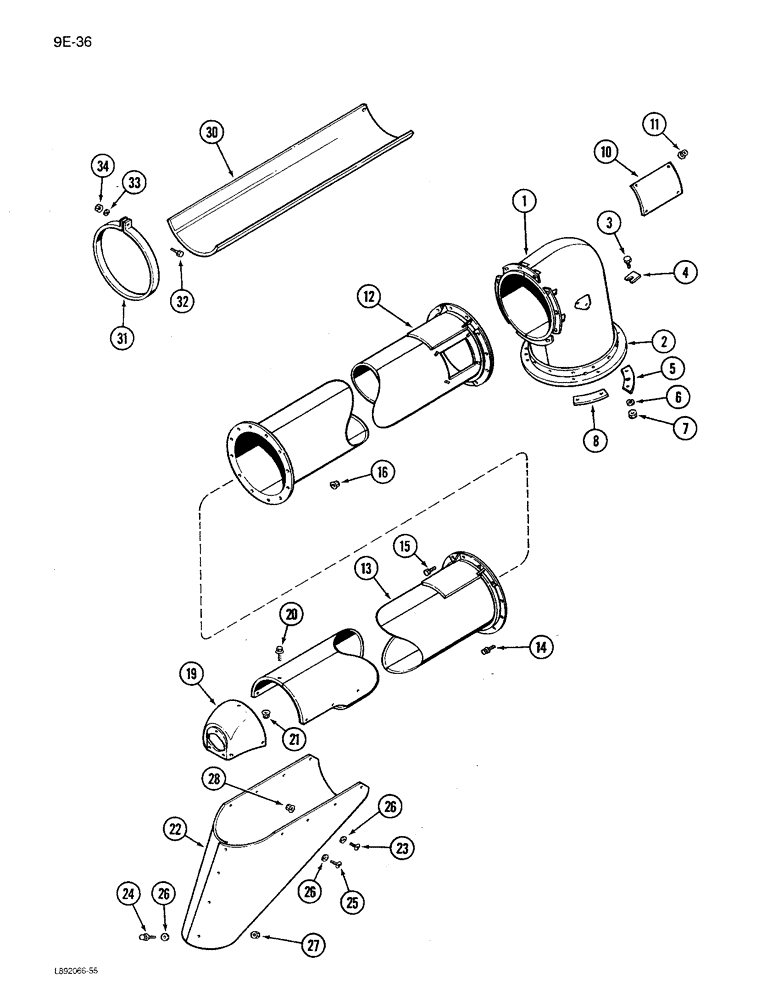

Запчасти Case IH 1680 (9E-36) - UNLOADER UPPER TUBE (17) - GRAIN TANK & UNLOADER

1

193417C94

ELBOW

ASSEMBLY - unloader, Includes: Ref. 2

1шт.

2

193418C3

FLANGE

- unloader elbow

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

4

151670C1

SHIM

- keeper

1шт.

5

186657C2

SUPPORT

- front keeper

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

BAR - unloader tube keeper

1шт.

10

178158C1

PLATE

- front tube inspection

1шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

12

1317738C1

TUBE,2285 mm Length

- unloader, front (Blank)

1шт.

per print is 89.96 " long (this is both blank and perforated)

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - unloader, front (Perforated)

1шт.

per print is 89.96 " long (this is both blank and perforated)

1шт.

13

1317783C2

TUBE

- unloader, rear (172 inch)

1шт.

1317783C2 measures 82.47 "

1шт.

13

1317899C2

TUBE

- unloader, rear (208 inch)

1шт.

1317899C2 measures 118.031 "

1шт.

14

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

18шт.

15

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

6шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

24шт.

19

182837C2

CAP

- rear unloader tube

1шт.

20

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

22

1321150C1

SPOUT, DISCHARGE

SPOUT - down, unloader tube

1шт.

23

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

24

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

7шт.

25

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

- slotted truss head, 5/16 NC x 1-1/4 inch

4шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

16шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

11шт.

28

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

30

178165C2

COVER

- auger tube (Perforated)

1шт.

PARTS ARE NOT PERFORATED PER PRINT. MANY CATALOGS REFER TO THESE AS PERFORATED. THEY ACTUALLY ARE NOT PERFORATED, BUT ARE USED WITH A PERFORATED AUGER TUBE. 1400 SERIES

1шт.

31

178166C1

CLAMP

- tube retaining

4шт.

32

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
