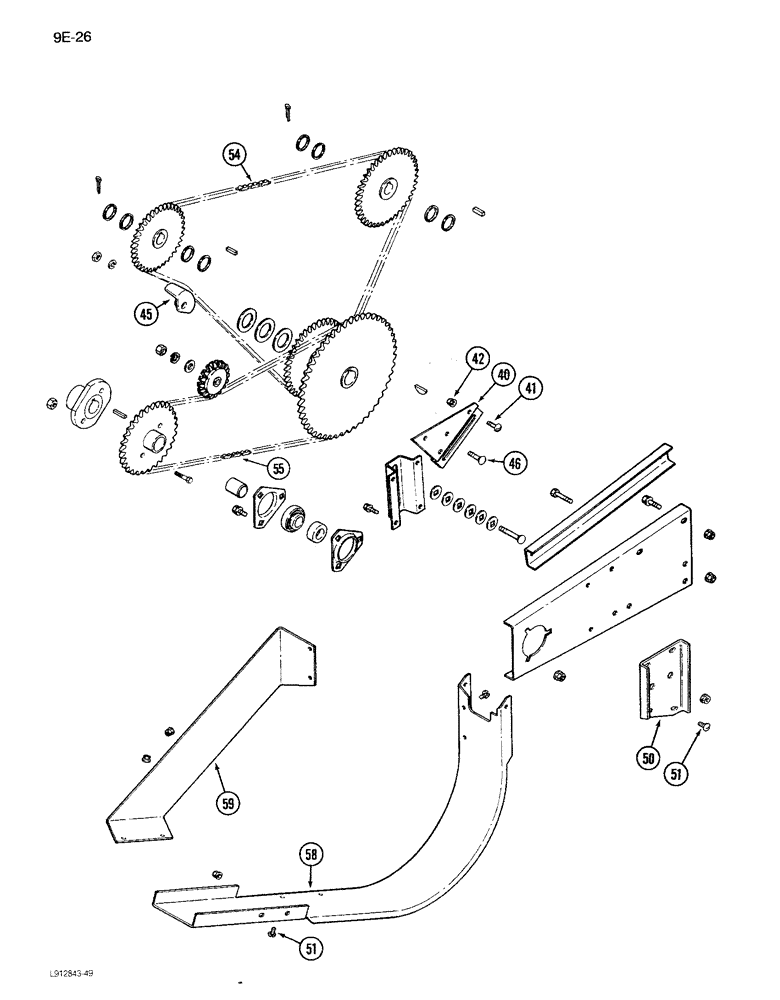

Запчасти Case IH 1680 (9E-26) - GRAIN TANK UNLOADER CHAIN DRIVE, P.I.N. JJC0115352 AND AFTER (CONTD) (17) - GRAIN TANK & UNLOADER

40

193779C1

SUPPORT

PLATE - support, continued

1шт.

41

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

45

936878R1

BLOCK

- tightener

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

1шт.

50

1302435C2

SUPPORT

- shield

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

8шт.

54

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive, lower auger

1шт.

Use 153 links of 1790D chain and (1) connecting link 1301D.

1шт.

55

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive, unloader

1шт.

Use 123 links of 1791D chain and (1) connecting link 1310D

1шт.

58

1302434C2

GUARD

SHIELD - drive, unloader

1шт.

59

183351C1

PLATE

- side

1шт.
